Leveling the Load Frame
MTS Criterion ® Series 40 Product Manual
Installation 57
Leveling the Load Frame
Leveling the Table-Top Load Frame
Level the table-top load frame immediately after you position it for installation.
This prevents the base from rocking and provides a level test surface for more
accurate test results.
Equipment
The following items are required:
• Spirit or bubble level
• Open-end wrench
Procedure
To level the frame base:
1. Place a spirit or bubble level on the center of the base beam.
2. Loosen the top nut on each leveling foot.
3. Using an open-end wrench, alternately adjust the height of each leveling
foot while you monitor the spirit or bubble level reading.
4. Rotate the spirit or bubble level 90° to verify that the load frame is level side
to side and front to back.
5. When the machine is level, tighten the top nut on each leveling foot.

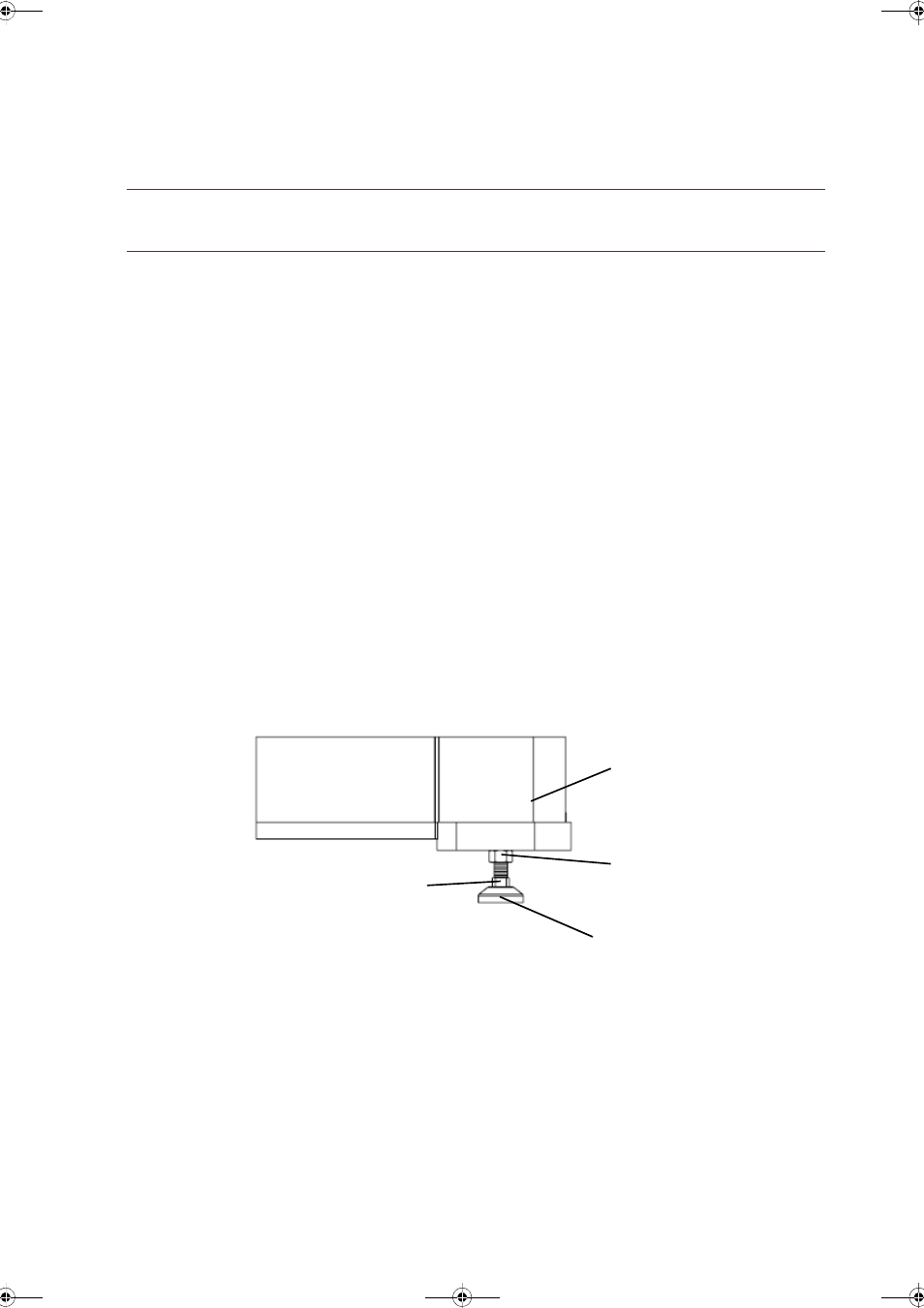

Frame Base
Leveling Foot
Loosen the top nut.
Turn bottom nut to adjust level.
