Installing Cables
MTS Criterion
®
Series 40 Product Manual
Installation
81

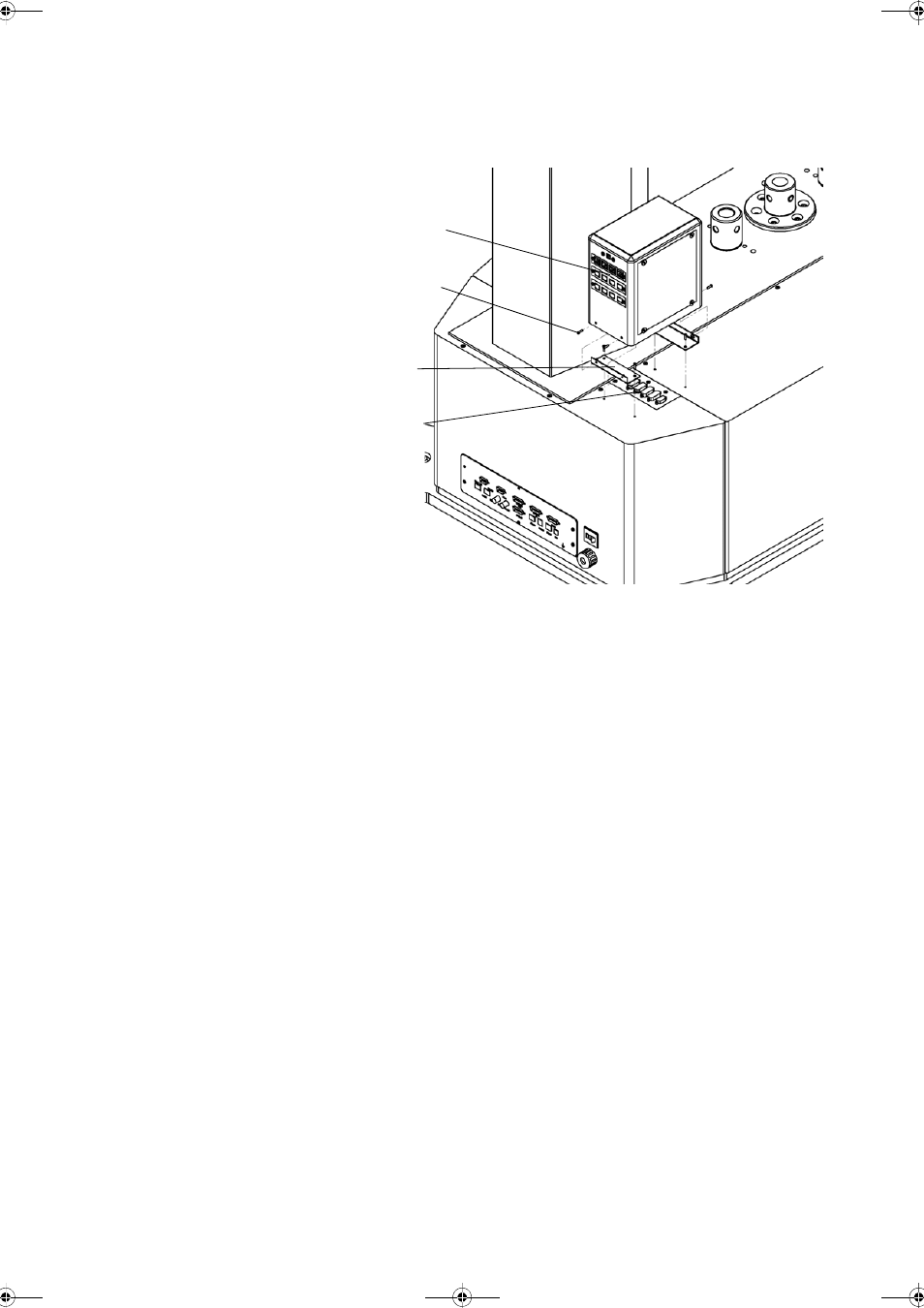

2. Secure the sheet metal bracket fo the base with four Allen screws M4x8.
3. Align the jacks and plugs of the NI connector, and then press down the NI
Signal Acquisition Box to the right position.
4. Secure the box with four Allen screws and hand-tighten.
NI Signal
Acquisition Box
Allen Screw
M4x8
Sheet Metal
Bracket
NI Connector
Criterion_product manual.book Page 81 Monday, July 28, 2014 3:52 PM
