9400 Technology applications | Electronic gearbox
Parameter setting & configuration
Master value transmission via system bus (CAN)
64
L
EDS94TA10030xxxx EN 1.2 - 11/2009
5.15 Master value transmission via system bus (CAN)
In the application example described in the chapter " Short setup ", the master speed is
transmitted via the digital frequency.
( 20)
The following instructions describe step by step the proceeding for commissioning the
electrical shaft via the system bus (CAN).
Create project view
1. Start »Engineer«.
2. Go to Start-up wizard and select the option "New project (empty)" and enter a name for
the project in a next step.
3. Insert system module.
4. Enter axes for master and slave(s).
– Add the corresponding components (controller, motor, extension module) to the
axes.
– Select for each controller the application "Electronic gearbox".

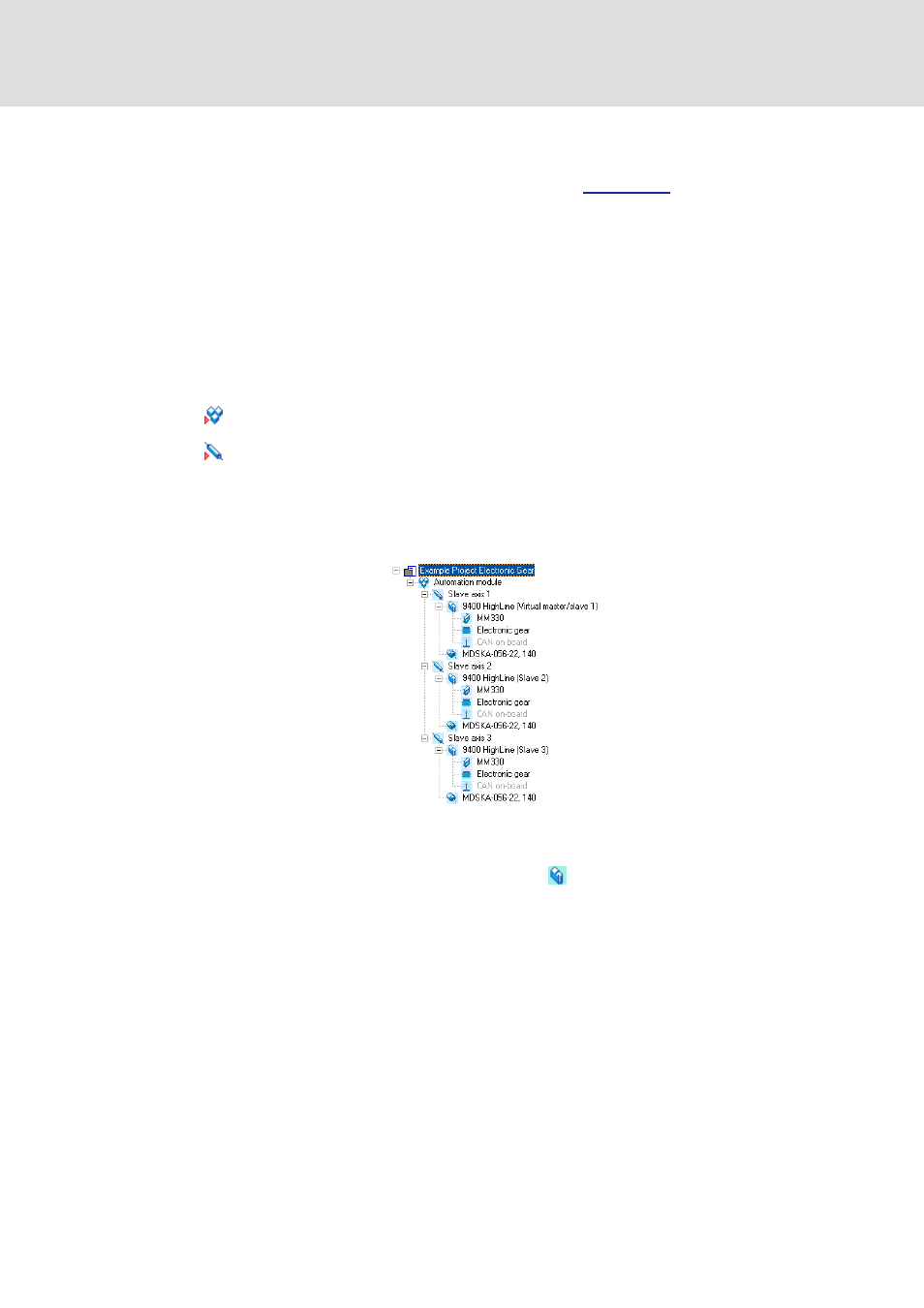

– Example project view in the »Engineer«:
Parameterise the virtual master
1. Go to the Project view and select the controller which is to take over the part of the
"Virtual master" in the network.
2. Go to the Application parameters tab and select the entry "Virtual master" in the list
field Master value source (C03052).
3. Click Electronic gearbox to change to the dialog level Overview  Electronic gearbox.
4. Click Master value processing to change to the dialog level Overview  Electronic
gearbox  Master value processing.
– Parameterise gearbox ratio, feed constant, cycle, path unit, and reference speed for
the master value.
