9400 Technology applications | Electronic gearbox
Parameter setting & configuration
Selection of master value source and output
5.3
Selection of master value source and output

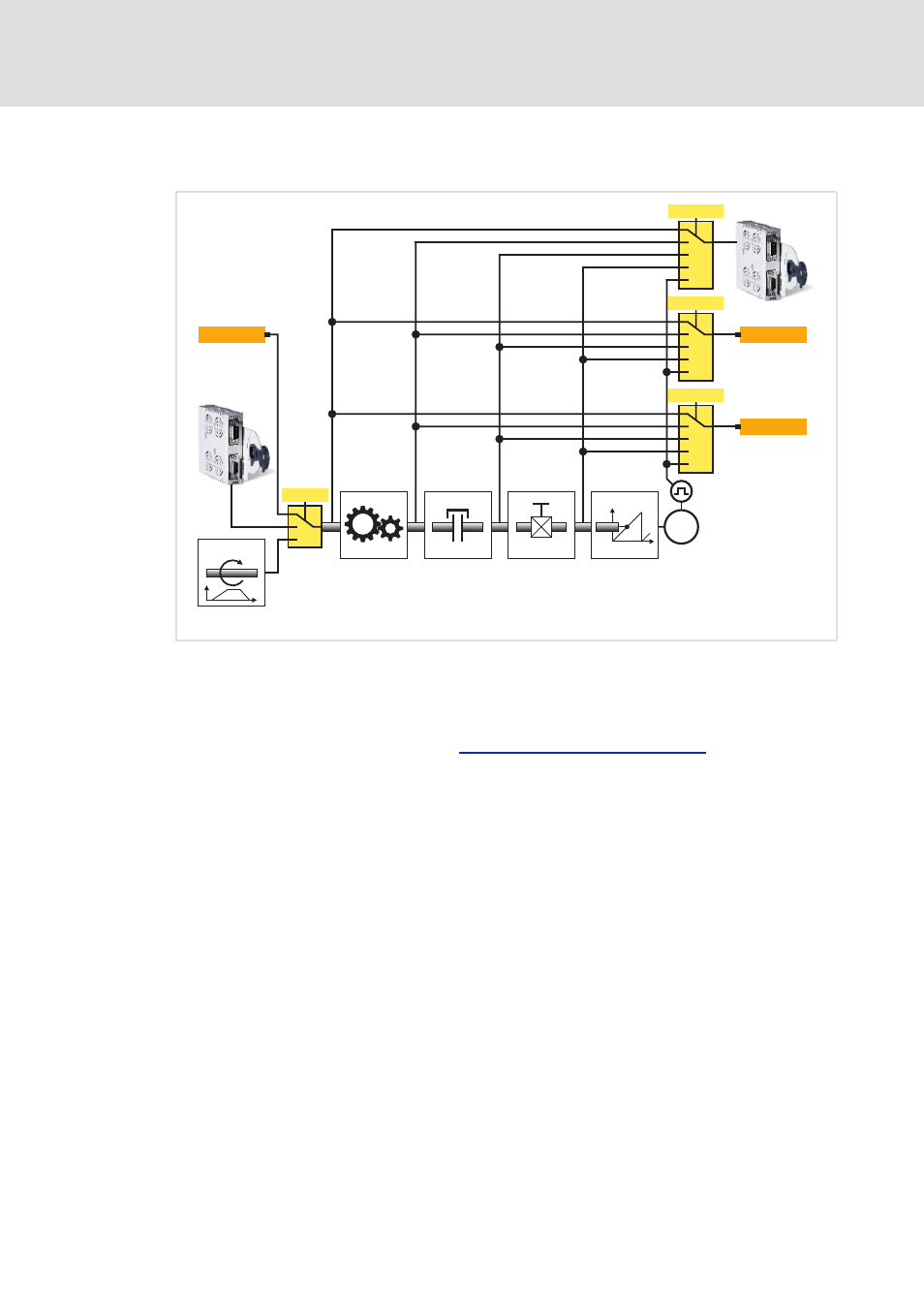

[5-3]
Signal flow for selecting the master value source and the master values to be output
Master value source
The master values can be either selected by a "Virtual master", via a bus system or the
digital frequency extension module.
Transmission of the master angle
They can be selected on the Application parameters tab via the Master value source list
field or via C03052.
Master value output
The master value to be output ( ... ) is selected individually for the three possible
communication channels:
List field Master value output DF module (C03197):
Selection of the master value output for the digital frequency module.
List field Master value output MotionBus (C03054/1):
Selection of the master value output for horizontal communication.
List field Master value output LPort32Out1 (C03054/2):
Selection of the master value output for vertical communication.
Master value with stretch factor with clutch with trimming Actual value
v
t
Dv
3
M
0
2
4
j
v
t
Virtual master
LPortAxisIn1
LPortAxisOut1
C03054/2
C03197
C03054/1
C03052
LPort32Out1
