Technical Data
66 BA8230
2.8.9 Motor choke
Motor choke
Type Dimensions Losses
1)
Weight a b c d e n g h P
V
ca.
[kg] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [W]
ELD3-0050H220 34.0 300 177 270 240 120 10.5 11 15 ∼
160
ELD3-0040H260 40.0 300 190 270 240 133 14 11 15 ∼
190
ELD3-0030H330 45.0 300 210 270 240 145 14 11 15
∼
240
ELD3-0025H400 62.0 300 236 270 240 171 14 11 15 ∼
300
ELD3-0020H500 64.0 300 236 270 240 171 17.5 11 15 ∼
370
Table 34: Dimensions and weights, motor choke
1)
The losses stated are approximate only and refer to the rated data of the relevant
unit at 400 V rated voltage and 3 kHz pulse frequency. This is based on a motor
cable length of approx. 100 m NYCWY which is rated according to the connection
instructions given in this operating manual.

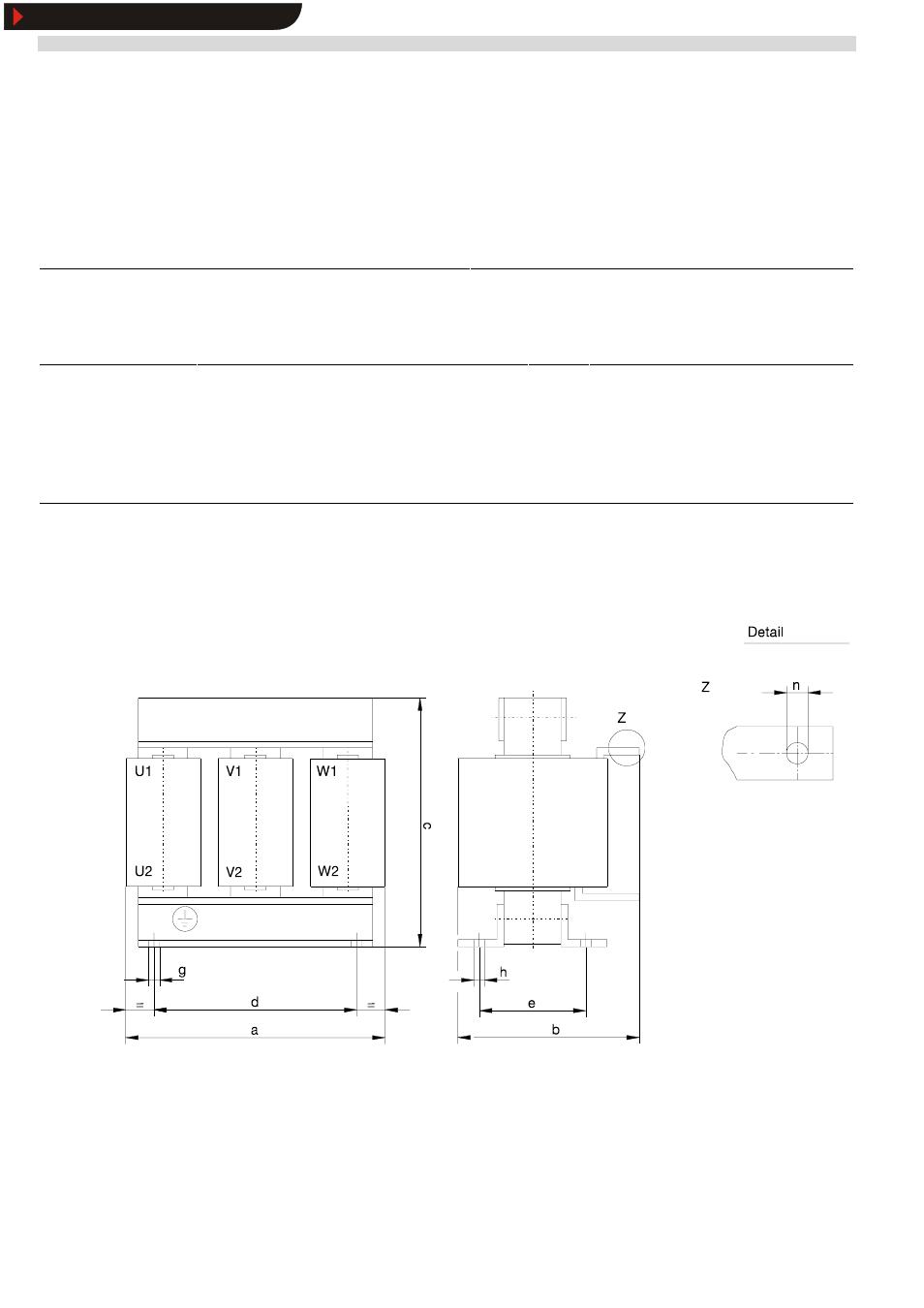

Fig. 36: Dimensions motor choke
