Technical Data
BA8230 61
2.8.3 Installation drawing for The control unit BDE can also be installed in the door of the cubicle door
control unit if required.

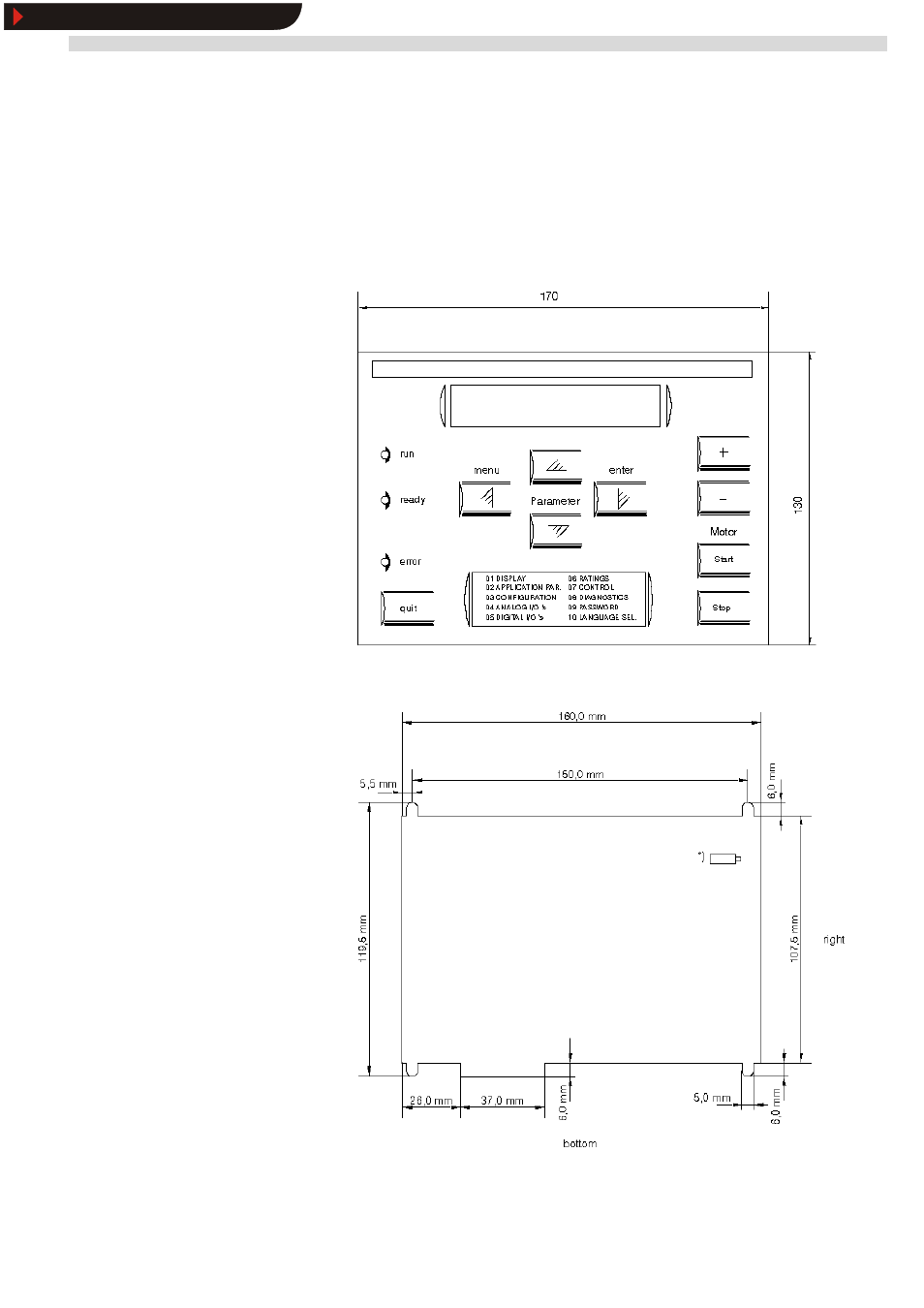

Fig. 31 shows the cut-out for installation in the cubicle door.
Cut-out for installation of 8230 frequency inverter control unit front view:
Fig. 31: Control unit BDE - door cut-out
Door panel max. 2.0 mm thick
*
)
Potentiometer for display contrast adjustment
