Technical Data
60 BA8230
2.8.2 Mains chokes for 8230 frequency inverter

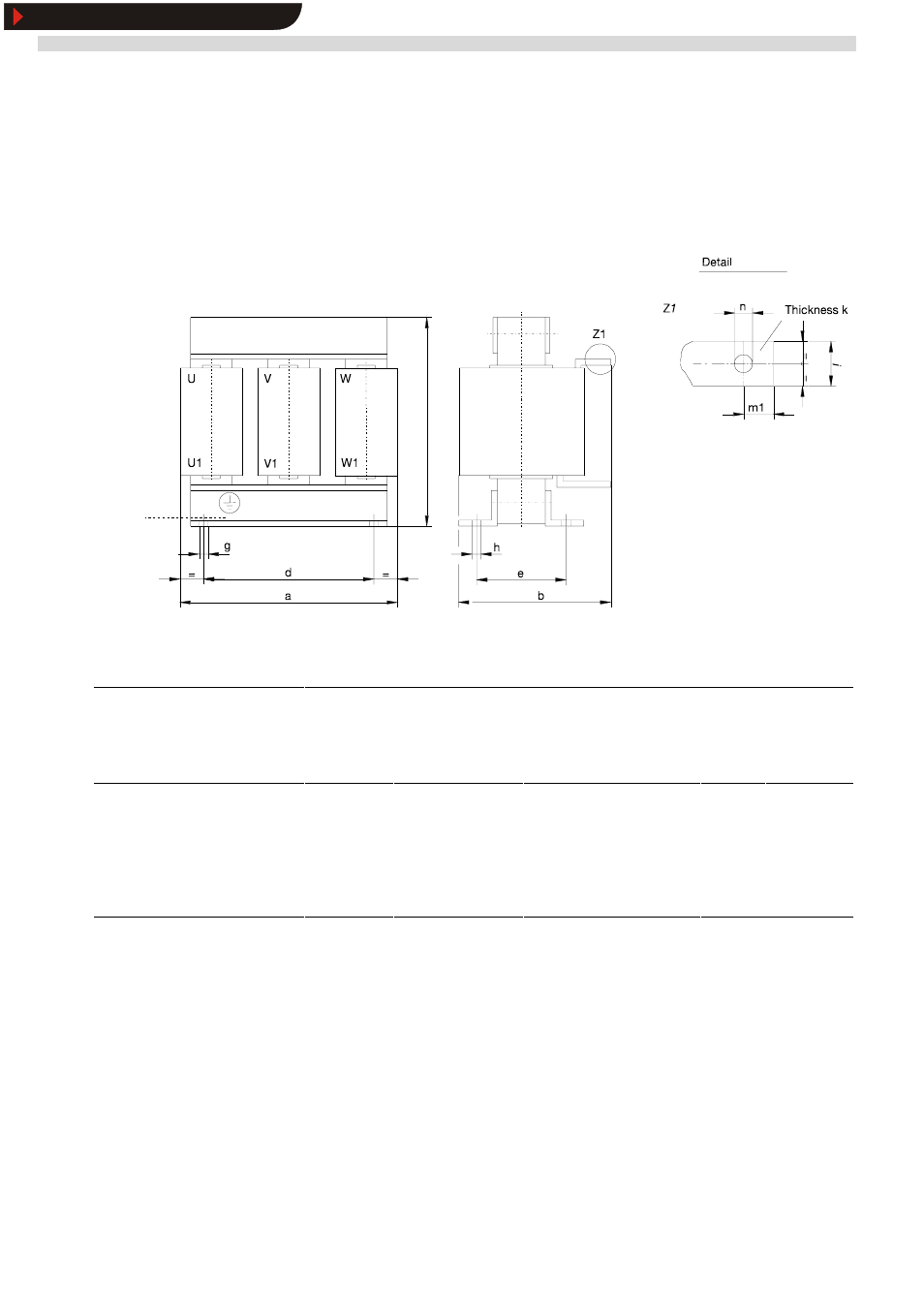

Fig. 30: Dimensions, 8230 frequency inverter mains chokes
Mains choke/type Mains choke / AC choke
Dimensions Installation dimensions Weight Losses
a b c d e g h ixk n P
V
ca.
[mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [kg] [W]
ELN3-0014H200 300 170 290 274 88 8.3 16 30 x 3 10.5 32 220
ELN3-0011H270 300 190 290 274 114 8.3 16 35 x 4 12.5 40 280
ELN3-0009H300 300 200 290 274 114 10.5 18 35 x 4 12.5 44 290
ELN3-0009H370 360 210 343 330 107 10.5 18 50 x 5 12.5 58 380
ELN3-0006H450 360 210 343 330 107 10.5 18 50 x 5 12.5 58 460
