Introduction

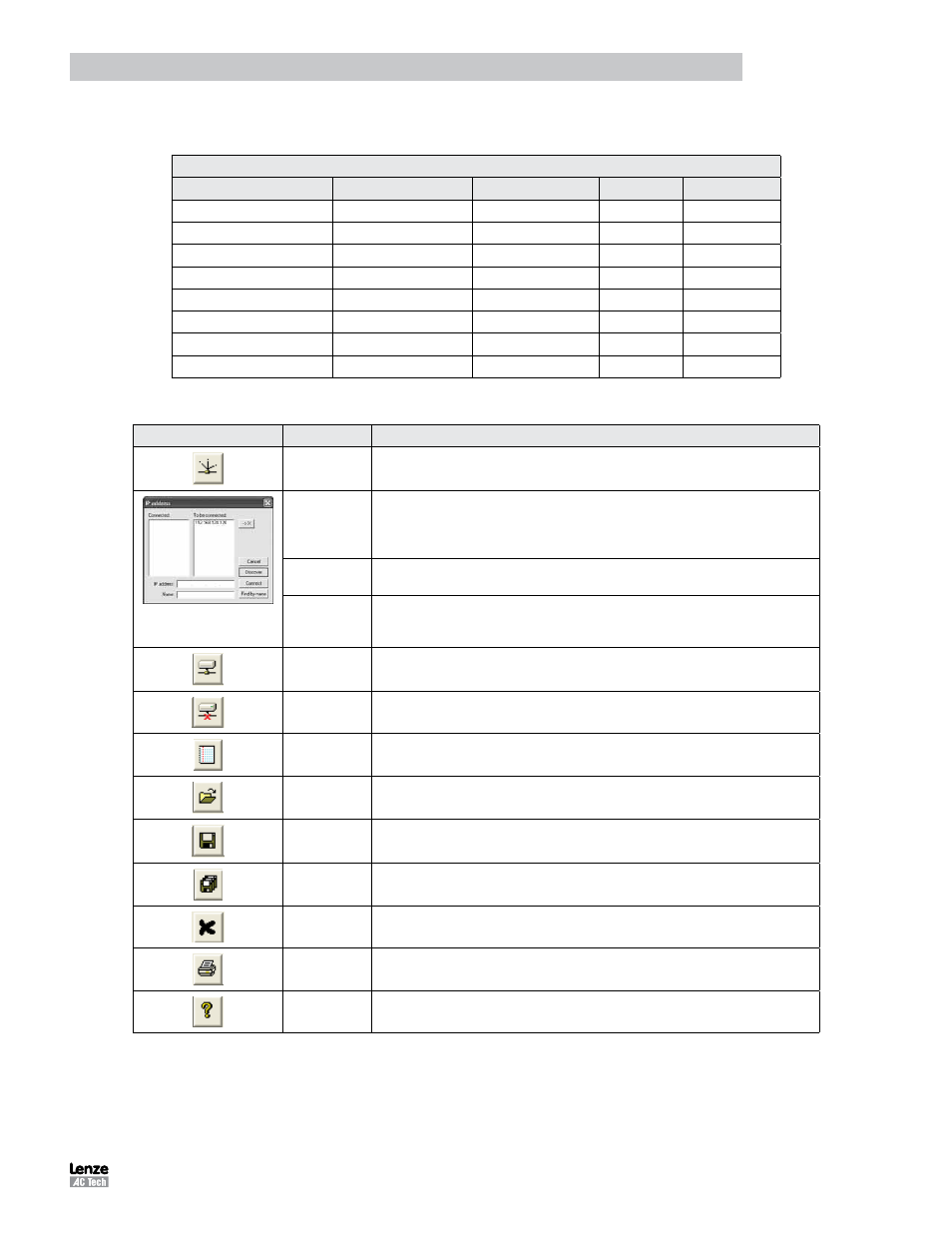

Table 3a: Main Menu Text Pull-Down Folders
Main Menu
Node
Project
Tools
View
Help
New configuration file
New project
Browse motor database
Toolbar
MotionView help
Open configuration file
Open project
Clear output window
Status Bar
Product manuals
Save configuration file
Close project
About MotionView
Load configuration file
Save project
Time stamp
Set all parameters to default
Save all configuration files
Connect drive
Options
Disconnect all coneected drives
Connection setup
Remove node from project
Recent file
Table 3b: Main Menu Icon Functions
Icon
Function
Description
Connect
Build a connection list of the drive(s) to communicate with on the network. Build the
connection list by using any one of these three methods:
Discover
[Discover] button discovers all drives on the network that are available for connectivity. Once
drives have been discovered they are listed in the ‘Connect to drive’ list box. To connect one
or a number of drives highlight their IP address in this window and press the [Connect] button.
The ‘Ctrl’ key on your keyboard can be used to select multiple drives for connection.
Connect
If the IP address on the drive is known, enter it in the IP address dialog box and then select
[Connect] to access the drive.
Find by name
If a drive has been assigned a specified “Drive Name”, enter this name in the Name dialog box
and then select [Find by name]. The IP address should then appear in the “Connect To Drive”
list. The drive can now be connected by highlighting and pressing the [Connect] button.
Connected
Drive is connected as a node on the network.
Disconnect
Terminate connection to the drive selected (backlit) in the Node Tree.
Add File
Import a configuration file to the drive
Open File
Recall & open any previously saved configuration files and connection parameters.
Save
Save the configuration file and the connection parameters of the drive selected in Node Tree.
Save As
Save the configuration file and the connection parameters of the drive selected in Node Tree.
Remove Node
Remove a node from the network
Print a report for the currently selected drive, containing all parameter set-up and
programming information.
Help
Open MotionView Help folder (from original installation CD)
