5.12 L_IODInModule − Bit conversion
Function library LenzeIOSystem.lib
Function blocks
5−20
L
LenzeIOSystem.lib EN 1.7

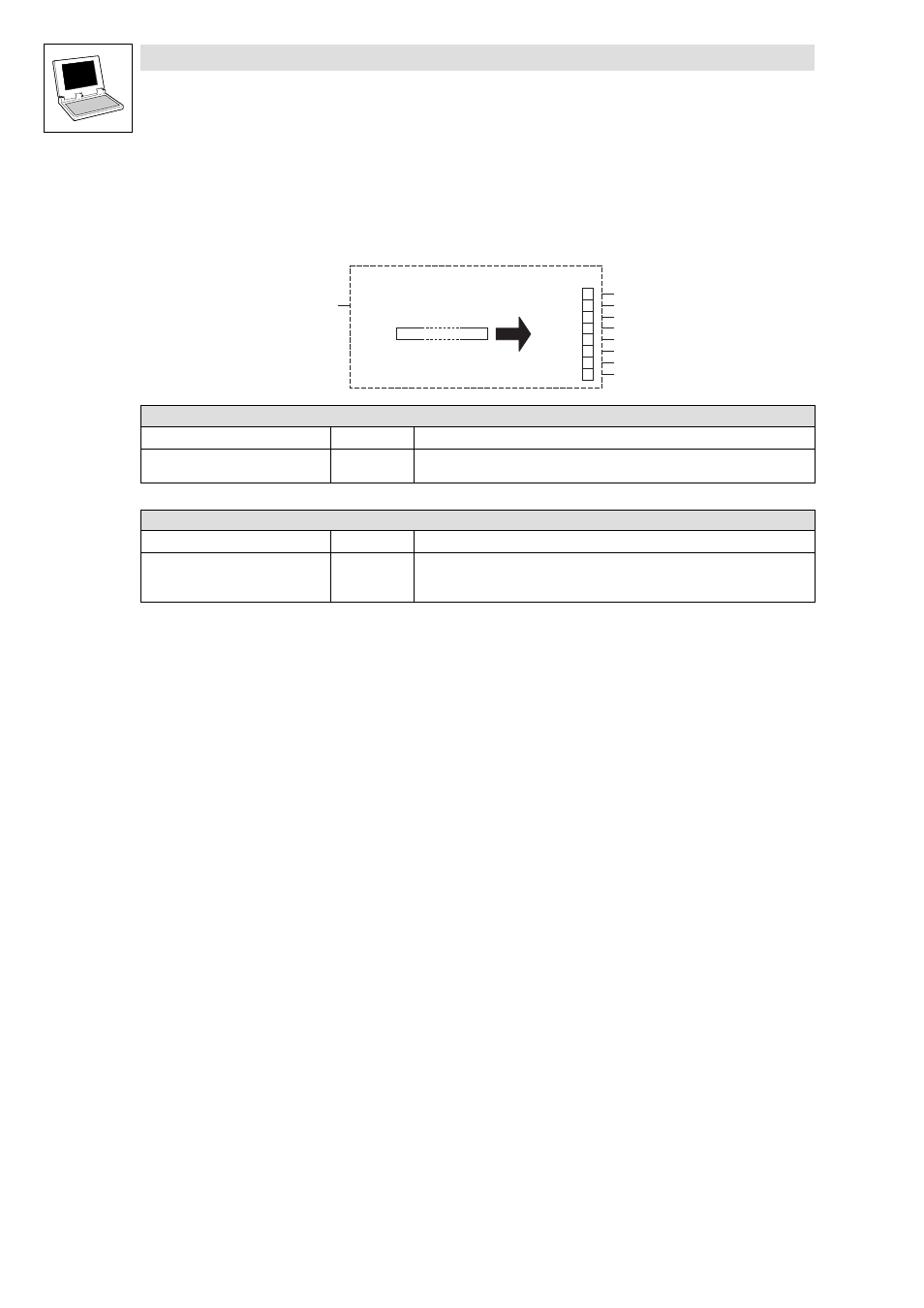

5.12 L_IODInModule − Bit conversion
Function block L_IODInModule corresponds to a digital input module (EPM−T210) and converts one
data byte into the individual bits 0 − 7.
L_IODInModule
bBit0
bBit1
bBit2
bBit8
Byte (8 bits)
byPDO_DataFromIO
bBit6
bBit4
bBit3
bBit7
ð Inputs (Variable type: VAR_INPUT)
Variable name Data type Information/possible settings
byPDO_DataFromIO Byte Digital inputs:
1 byte data = 1 DI module
Outputs
ð
(Variable type: VAR_OUTPUT)
Identifier Data type Value/meaning
bBit0
...
bBit7 Bool Digital input information, bit 0.
...
Digital input information, bit 7.
