5.3 L_IOCompactModule − Coordinate data
Function library LenzeIOSystem.lib
Function blocks
5−8
L
LenzeIOSystem.lib EN 1.7
5.3 L_IOCompactModule − Coordinate data
Function block L_IOCompactModule supplies the digital input and/or output data of the I/O system
and is used for compact module EPM−T83X.
The block represents the interface between PLC and I/O system.
·
Via inputs abyPDO_DataToIO, data are transmitted from the control to the I/O system
(digital/analog output channels).
·
The states of the digital and analog input channels are transmitted to the control via outputs
abyPDO_DataFromIO.
·
This function block is made up of unassigned CAN objects so that the status display at
outputs nState... is the same as for the CAN library’s transmit and receive blocks.

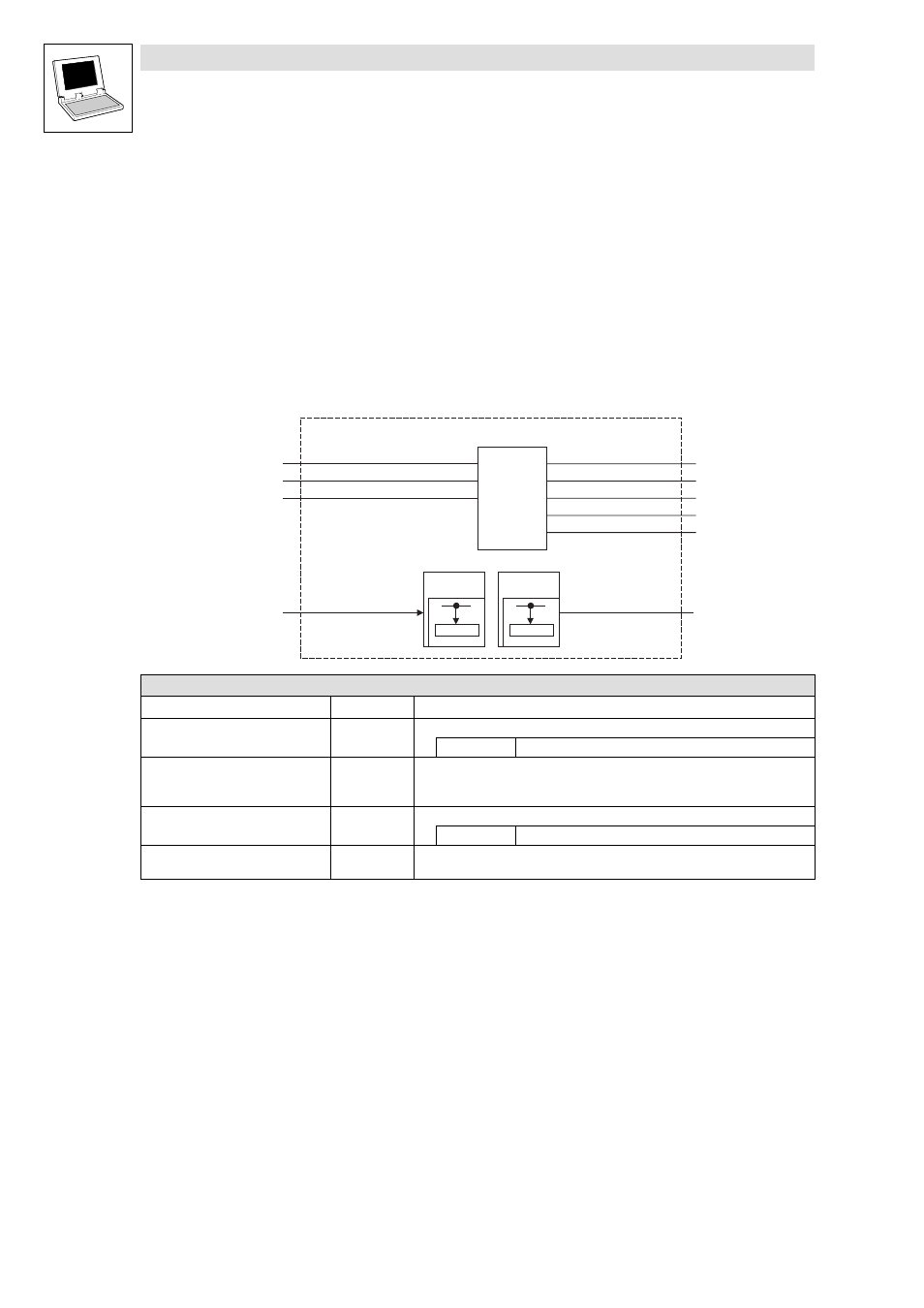

DataFrom_IOParPDOBlockModule
L_IODataCompactModule
bEnablePDOTransfer nStatePDO1_DataToIO CTRL
bResetFail nStatePDO1_DataFromIO
bFail_DataToIO
bFail_DataFromIO
bFail_Module
EPM-T110
TxPDO1
EPM-T110
RxPDO1
abyPDO1_DataFromIO abyPDO1_DataToIO
ð Inputs (Variable type: VAR_INPUT)
Variable name Data type Information/possible settings
bEnablePDOTransfer Bool Data transfer
TRUE PDO data transfer active
abyPDO1_DataToIO Byte array I/O system receive object
·
Transfer process data from PLC to I/O system
(digital outputs)
bResetFail Bool Reset output data bFail_DataToIO, bFail_DataFromIO and bFail_Module
TRUE Output data reset
DataFrom_IOParPDOCompactModule Struct Structural data of parameter block L_IOParPDOCompaktModule.
Global struct−type variable.
