OPERATION AND MAINTENANCE
4-7
Leveling (Side to Side)
1. Leveling the 2430 Weatherproofer I side-to-side
involves leveling the wing frame to the center frame.
The unit should be level side-to-side when operating
in the field.
2. To level the unit, verify that all tires are properly
inflated. With the implement unfolded, raise the unit
to fully extend the lift cylinders. Continue to hold the
tractor lever 30-60 seconds to insure that the
cylinders are fully extended and the rephasing lift
system has been purged of air. Lower the unit until
the ripper points are approximately 1” off the ground.
On the center frame, measure the distance from the
walking beam spindle to the top side of the frame
(See Figure 4-9.)
3. On 2430-11-24 models, measure the same distance
on the wing frame. The wing frames are generally set
to the same distance or slightly higher than the
center frame.
4. On 2430-13-24 models, the wings should measure
4-1/8” more than the main frame dimension.
5. Adjusting the anchor at the base end of each wing lift
cylinder sets wing frame height (See Figure 4-10.)

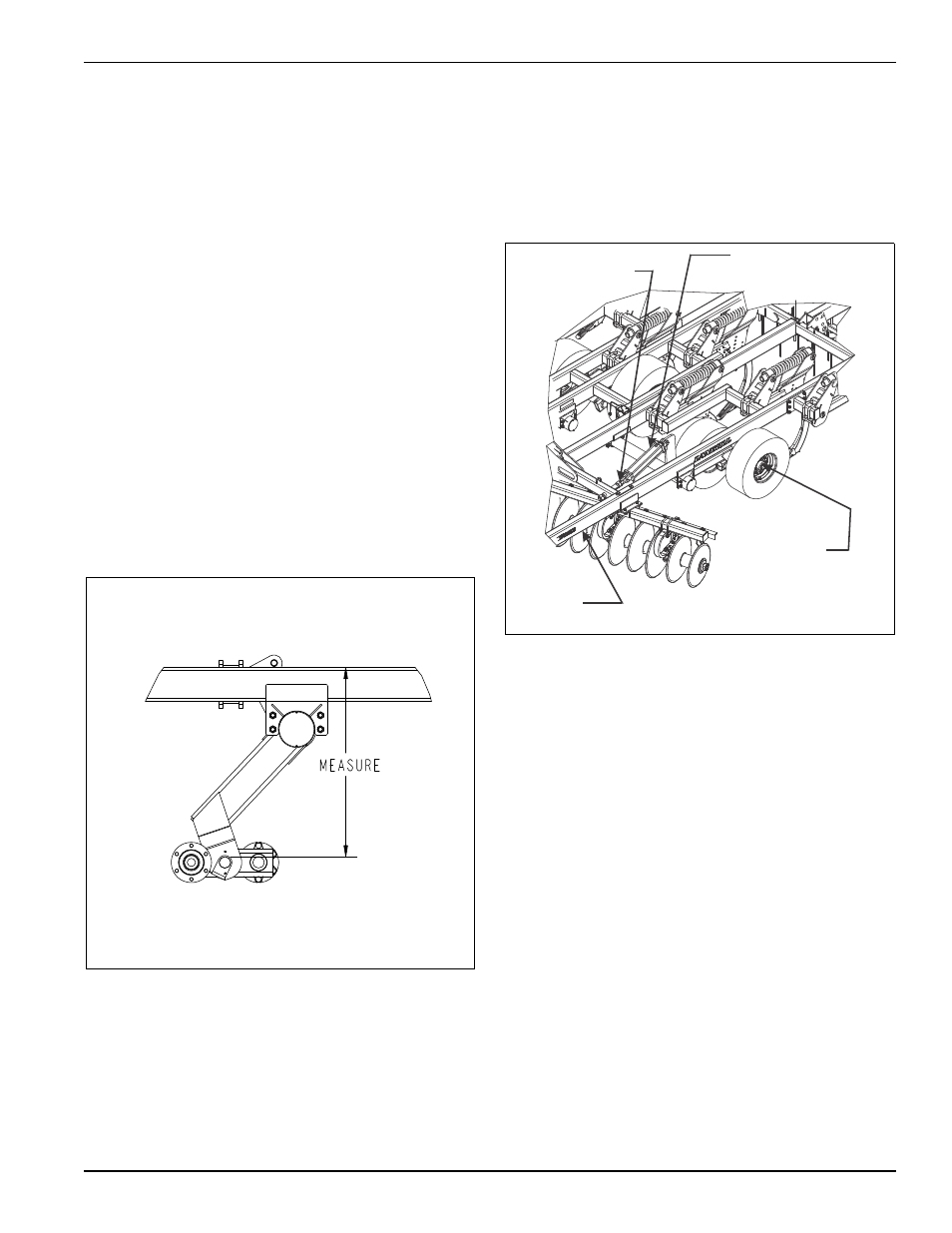

Figure 4-9: Leveling from Side to Side
6. An adjusting wrench is provided to make this
adjustment. It may be necessary to lower the wing to
the ground and relieve weight on the cylinder anchor
to make this adjustment. If required, fully raise the
implement, lower to just above the ground, and
re-verify measurements. Repeat as necessary and
securely tighten the cylinder anchor when complete.
Figure 4-10: Wing Lift Adjustment
2430 level meas
2430 wing lift adjust
4 X 16 HYDRAULIC
CYLINDER
WHEEL LIFT
WHEEL
ASSEMBLY
BASE END
ADJUSTMENT
WING
FRAME
