OPERATION AND MAINTENANCE
4-5
5. To fold/unfold the Weatherproofer I, find a level area
large enough to accommodate the Weatherproofer I
when it is fully unfolded. The tractor should be
stopped and not moving with the unit fully raised.
Remove the wing lock pins from the mounts and
install them in the storage locations (See Figures 4-5
and 4-6).
IMPORTANT
Failure to remove the lock pins when unfolding will
result in serious damage to the implement. Be sure
other people and pets are a safe distance away.
6. Slowly engage the tractor lever and fold/unfold the
wing frames. When the wings are unfolded, continue
holding the tractor lever to fully extend both fold
cylinders. This will allow the wing latches to fully
engage creating a rigid wing for field operation.
7. When the unit is fully folded, remove the wing lock
pins from the storage location and install in the
mounts provided on each side of the machine.

WARNING

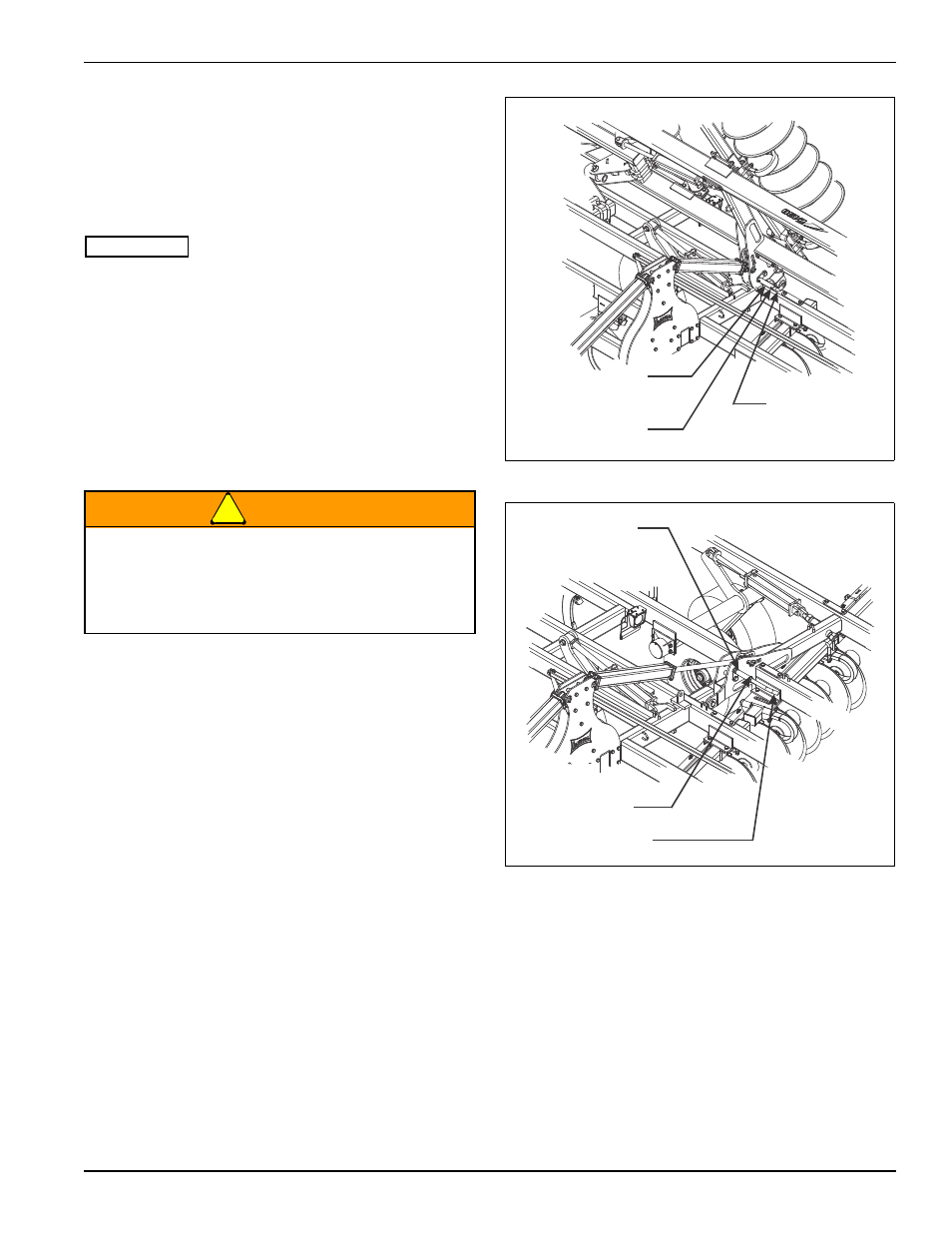

Figure 4-5: Position in Folded Position
Figure 4-6: Position in Unfolded Position
Unfold wings before doing any type of service or
repair to the fold cylinders or hydraulic lines
supplying oil to the fold cylinders. The wings will
naturally unfold if the oil pressure is relieved,
thus allowing wings to fall to the ground.
2430_fold
LOCK MOUNT
1/2 X 2 SPRING
SLOTTED PIN
WING LOCK
PIN
2430_unfold
LOCK MOUNT
1/2 X 2 SPRING
SLOTTED PIN
WING LOCK PIN
