Figure 3-26: finishing harrow installation – Landoll 2430 Weatherproofer I User Manual
Page 56
3-36
F-652-0912 Edition
ASSEMBLY INSTRUCTIONS

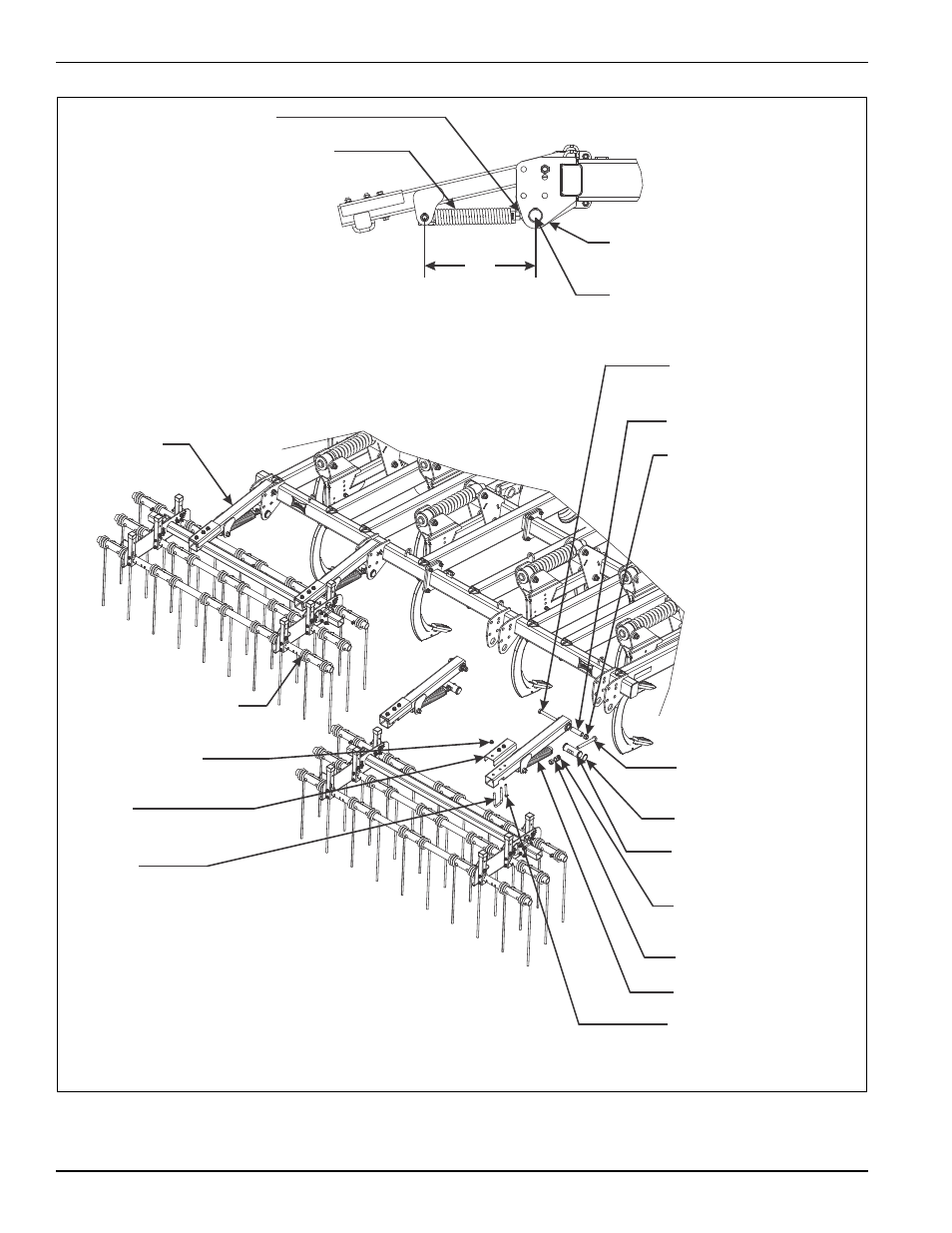

Figure 3-26: Finishing Harrow Installation
1-8 X 7-1/2 HEX HEAD
CAP SCREW
4-1/4” PIVOT BUSHING
1-8 HEX LOCK NUT
1-8 X 9 SPRING
ADJUSTMENT BOLT
2-1/2 SNAP RING
7-1/4 ADJUSTMENT
PIN
1” SPLIT LOCK
WASHER
1-8 HEX NUT
17” SPRING ASSEMBLY
5/8-11 X 5 HEX HEAD
CAP SCREW
HARROW ARM
ASSEMBLY
HARROW ASSEMBLY
5/8-11 FLANGE HEAD
SERRATED NUT
HARROW STIFFENER
PLATE
SPRING CLAMP
U-BOLT
2430_ harrow inst_op
1-8 HEX NUT
SPRING ASSEMBLY
22
1 X 9 SPRING
ADJUSTMENT BOLT
7-1/4 ADJUSTMENT PIN
W/ SNAP RING
