Cygnus Editor Operating Manual

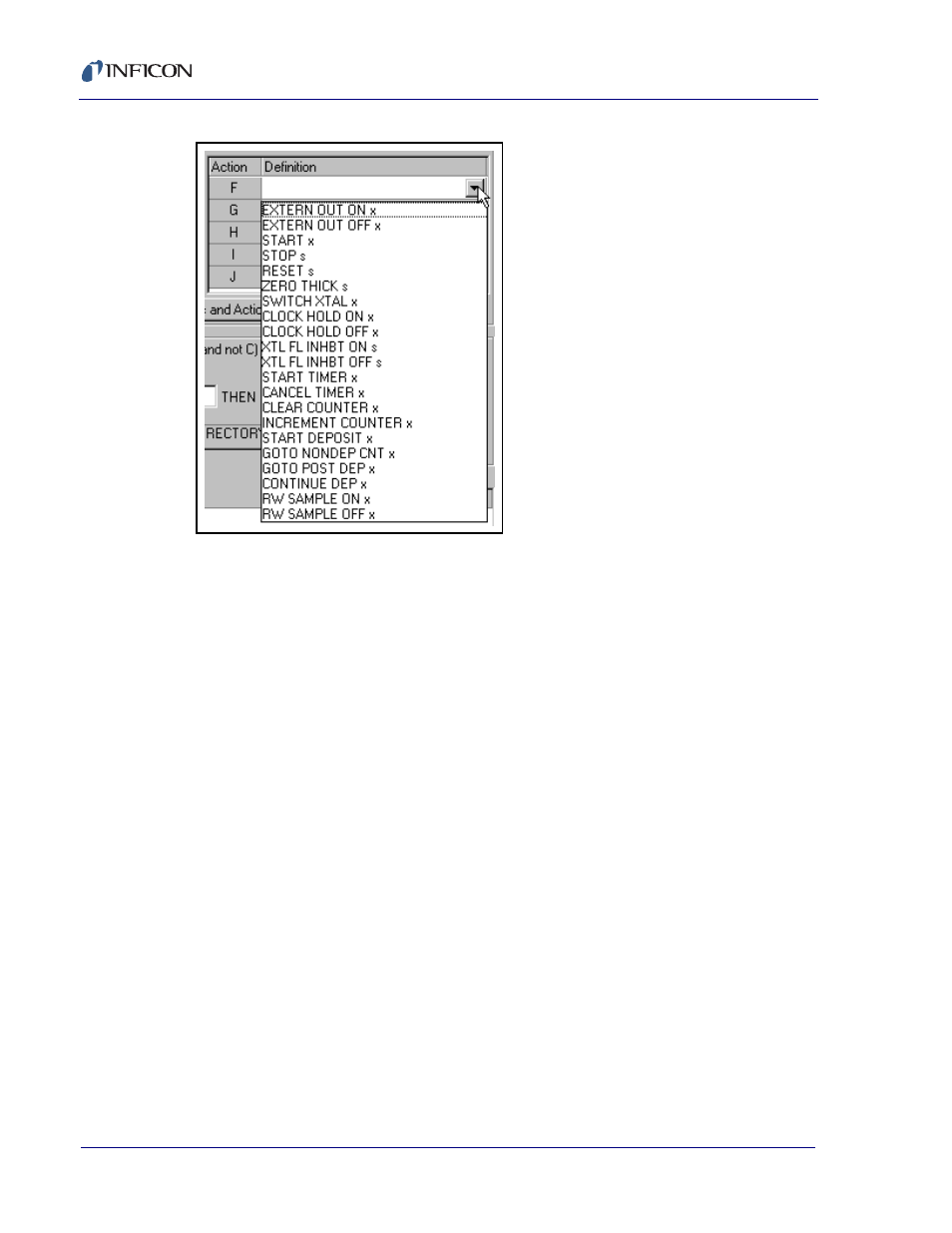

Figure 3-22 Actions available for the Logic Statement
Most Events and Actions require that a parameter be set, as designated by a letter
s, x, or some form of xx.xx or xx:xx, to complete the Event or Action.
The letter designations used as variables in the Events and Actions are:
s . . . . . . . . . . . . . . . . . . . . . . . . . . . . The letter s is used to designate a Channel.
Channels are listed as 1 - 6 or All for this
application.
x . . . . . . . . . . . . . . . . . . . . . . . . . . . . The letter x is used to designate a required
numeric entry. This entry varies depending
on the Event or Action.
The selection of an Event or Action that requires a variable parameter to be set is
followed by an Event Editor (or Action Editor) dialog specific for that parameter. See
Figure 3-23 for an example. In this example, the Event of "Rise 1 s" has been
selected as Event A. This selection promotes a parameter dialog which requires a
selection of the "s" value from the pulldown.
