Cygnus Editor Operating Manual

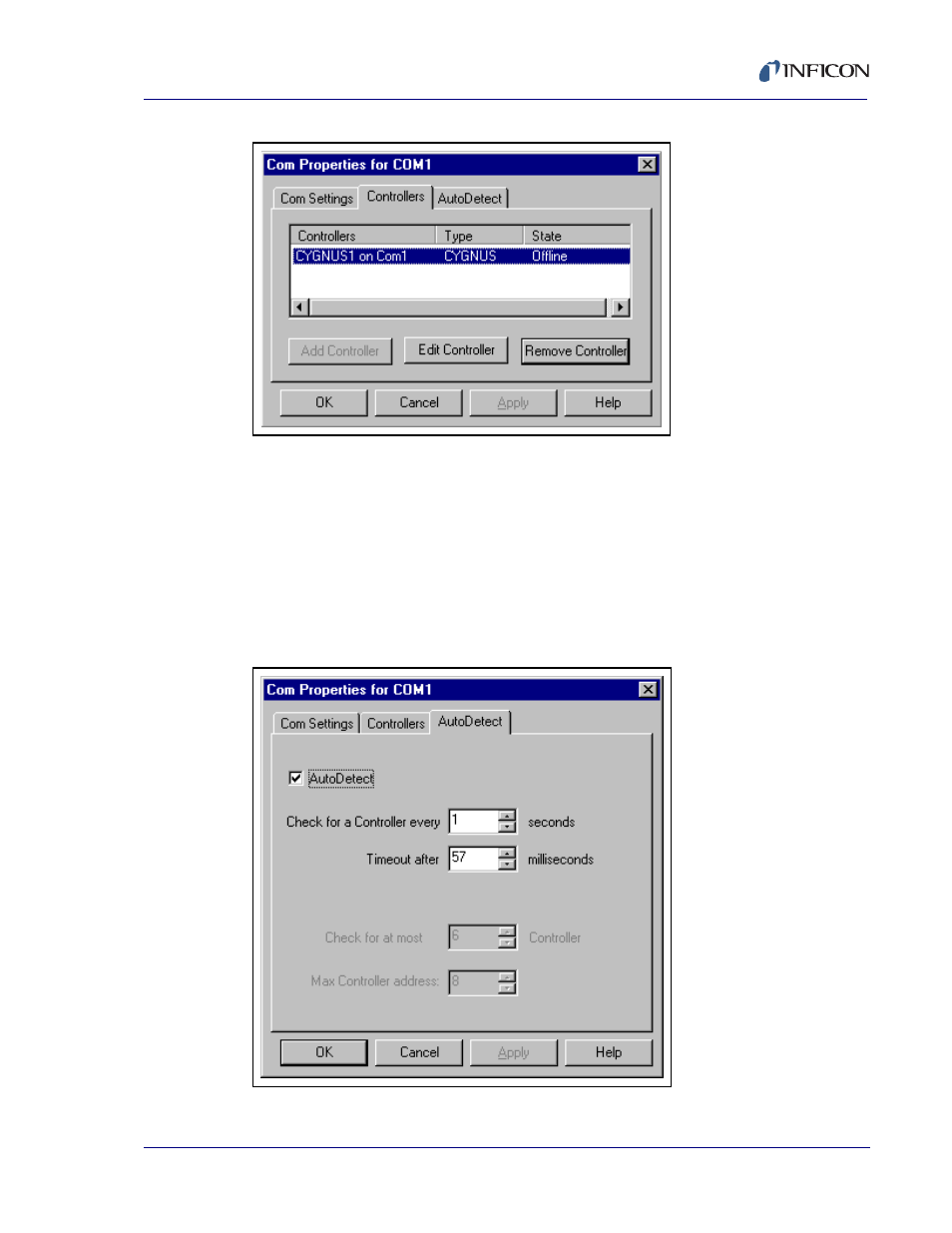

Figure 2-8 Com Properties: Controllers tab
The Controllers tab (refer to Figure 2-8 an RS-232 example) allows for a
Controller to be removed (using the Remove Controller button) or edited (using
the Edit Controller button). When editing the Controller, changes can be made to
the Controller Name, which is used to identify the Controller in the software, and,
in the case of GPIB communications, the Controller Address, which is used by
the software to identify the Controller on the communications port.
The AutoDetect tab (see Figure 2-9 ) allows the Cygnus Editor communications to
be streamlined to look only for a specific group of Controllers.
Figure 2-9 Com Properties: AutoDetect tab
