Cygnus Editor Operating Manual
The Main Window is the only window from which the entire Configuration file can
be saved to disk and sent to the controller. Editing of each individual page is
launched from this window by double-clicking on either a Parameter Group name
or individual parameter name within the Main Window.

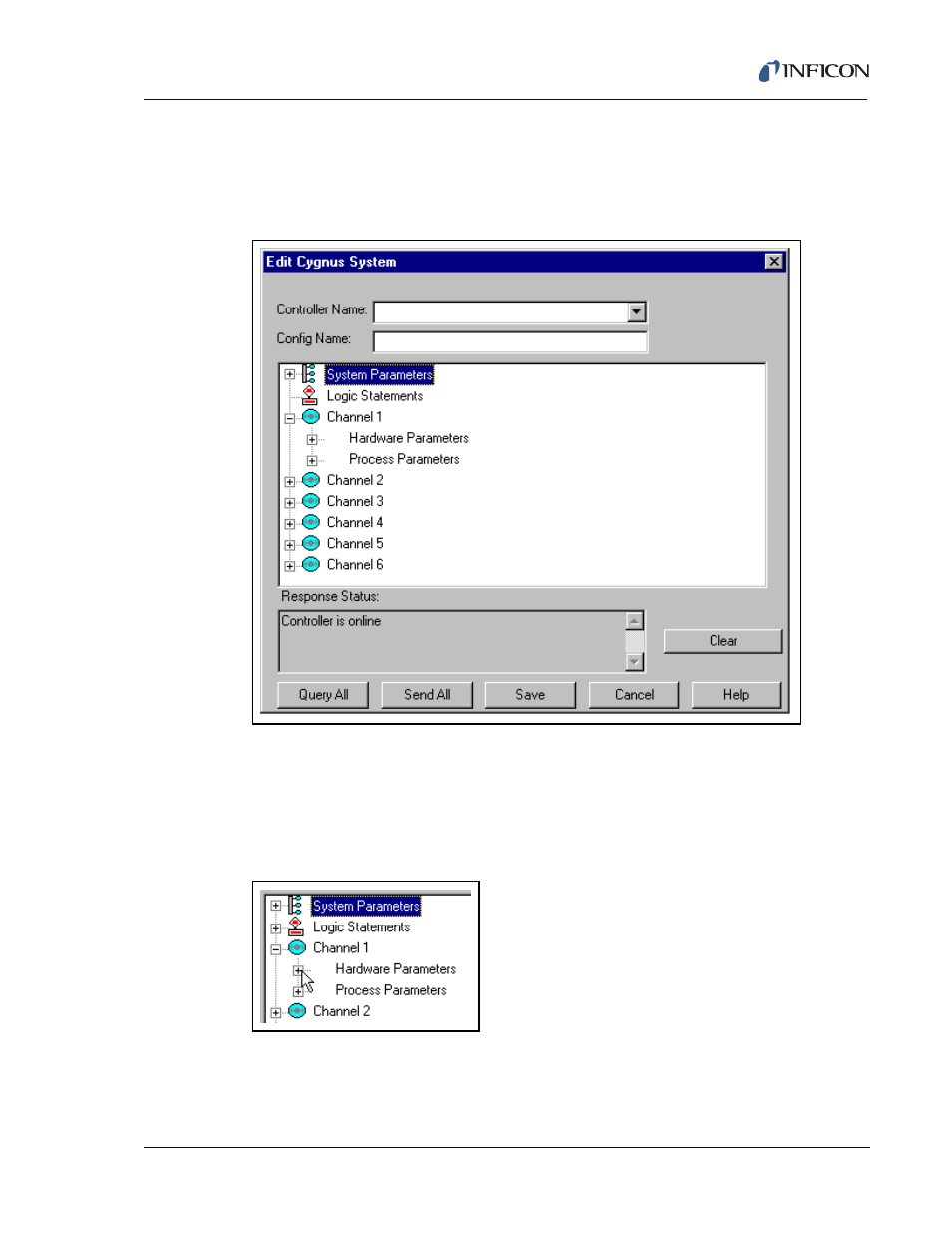

Figure 3-7 Configuration Editor: Main Window
All of the parameters can be listed within the Main Window by clicking on each plus
sign [+] at the front of any Parameter Group name. For instance, to list the
parameters within the Hardware Parameters for Channel 1, click on the plus sign
that precedes Hardware Parameters (see
Figure 3-8 ). The result of that action will
be a list of all Hardware Parameters for Channel 1 (see Figure 3-9 ).
Figure 3-8 Expanding the parameter list
