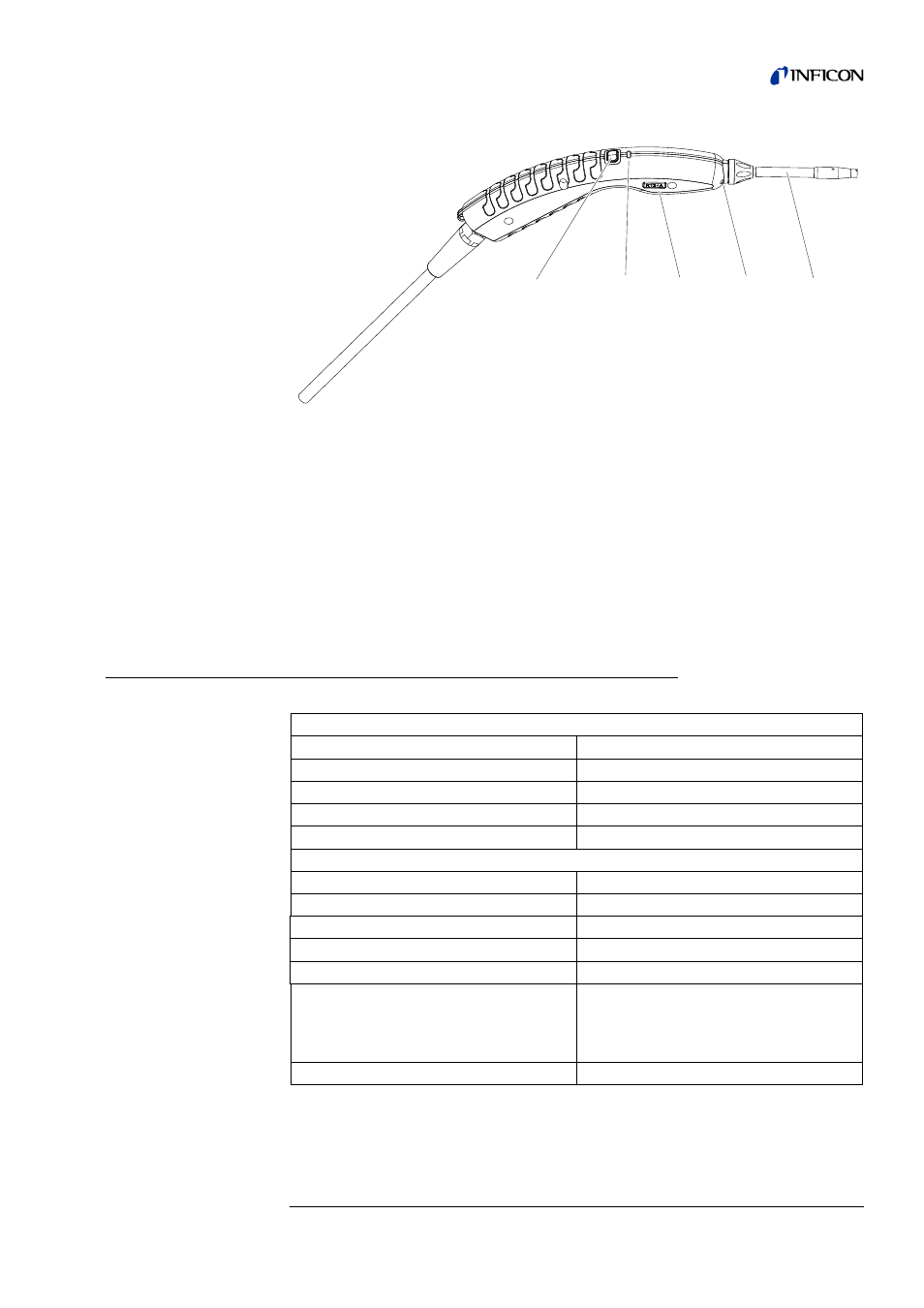

Fig. 4: Handle: Display and functions
If the setpoint is exceeded, the display switches from green to yellow, see Table 7 on
Page 33 .
You can also set the illumination LEDs to flash at the lower end of the sniffer probe, see
"6.4.2 Setting up the sniffer probe", page 41 .
4.4 Technical data
a Key
b Status LED
c Name of gas or sniffer line
d Illumination LED
e Sniffer tip
Table 2: Technical data
Mechanical Data
Basic unit
Dimensions (height; diameter) 365 mm; 260 mm (14.4 in.; 10.25 in)
Weight 4.1 kg (9 lb.)
Length of sniffer line 4.8 m (15.5 ft.)
Weight of sniffer probe 280 g (0.6 lb.)
Ambient conditions
Permissible ambient temperature (during operation) 5 °C up to 50 °C (40-122 °F)
Permissible storage temperature 0 °C up to 50 °C (32-122 °F)
Max. relative humidity up to 31 °C (87.8 °F) 80 %
Max. relative humidity from 31 °C to 40 °C (87.8 °F-104 °F) linearly decreasing from 80% to 50%
Max. relative humidity over 40 °C (104 °F) 50 %
Pollution degree II

(According to IEC 61010/ Part 1: “Usually, only non-con-
ducting pollution may occur. However, temporary conduc-
tivity caused by condensation is permissible at times.“)
Max. altitude above sea level 2000 m
