E T C S e t u p G u i d e
SmartPack™ Portable
SmartPack Portable Setup Guide Page 5 of 6 Electronic Theatre Controls, Inc.

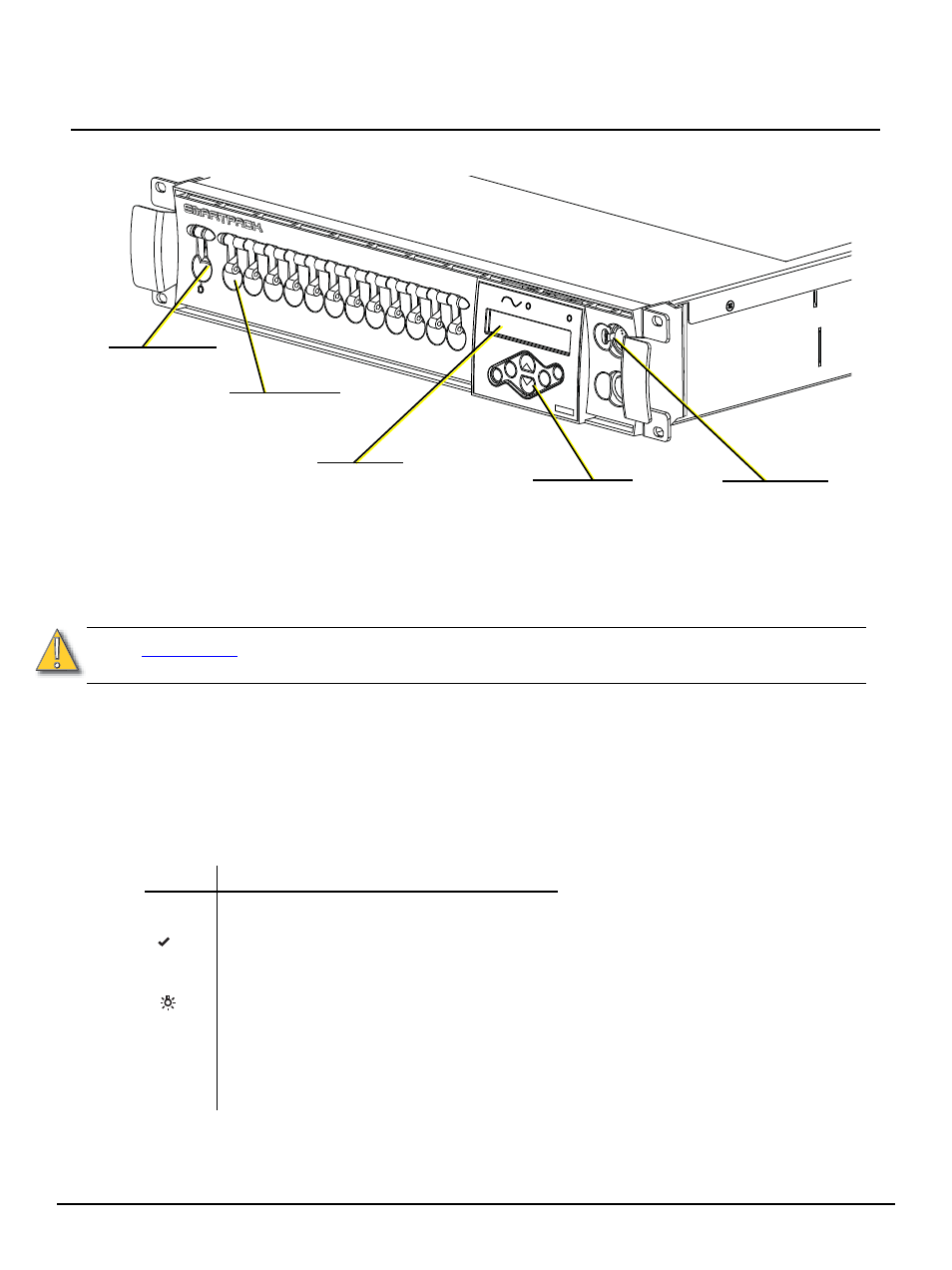

User Interface
Standby / Control
Use the Standby/Control power switch to start up and shut down the operation of the Smartpack. When
the Standby breaker is ON, the blue LED is illuminated indicating the power is on. When the Standby
breaker is OFF, the unit is still connected to the power supply but the power LED will not illuminate.
Circuit Breakers
Fully rated magnetic circuit breakers to eliminate nuisance tripping.
Backlit LCD
The LCD display is a high contrast 20-character by 2-line backlit LCD.
Control Buttons
Use the control buttons to navigate through the SmartPack menu.
C A U T I O N : When working on exposed load circuit wiring, the load cables must be unplugged or
the unit disconnected from the power supply.
Symbol Description
<< Return to the home menu
< Move back one menu item
Accept a menu choice or store a value
+ Increase a value or scroll through the menu
- Decrease a value or scroll through the menu
Activate the Test menu
~ Power LED - when illuminated, control power
is ON
DMX DMX LED - when flashing, NO DMX source is
present. When illuminated fully, active DMX is
present.
DMX
Standby / Control
power switch
Circuit breakers
(6 or 12)
backlit LCD
control buttons DMX Thru
self-terminating
