Page 3: Smartlink™ enabled
E T C S e t u p G u i d e
SmartPack™ Portable
SmartPack Portable Setup Guide
Page 3 of 6
Electronic Theatre Controls, Inc.
SmartLink™ Enabled
A SmartLink enabled SmartPack is identified by the two RJ45 connectors
labeled SmartLink on the rear of the unit.
SmartLink is an architectural control system created for enhanced control
of the 32 built-in presets and sequencer as found in the SmartPack.
Reference the SmartPack User Manual for programming and configuration
details.
SmartLink Cable Specification
A standard RJ45 to RJ45 straight through CAT 5 (minimum) cable is
required for SmartLink.

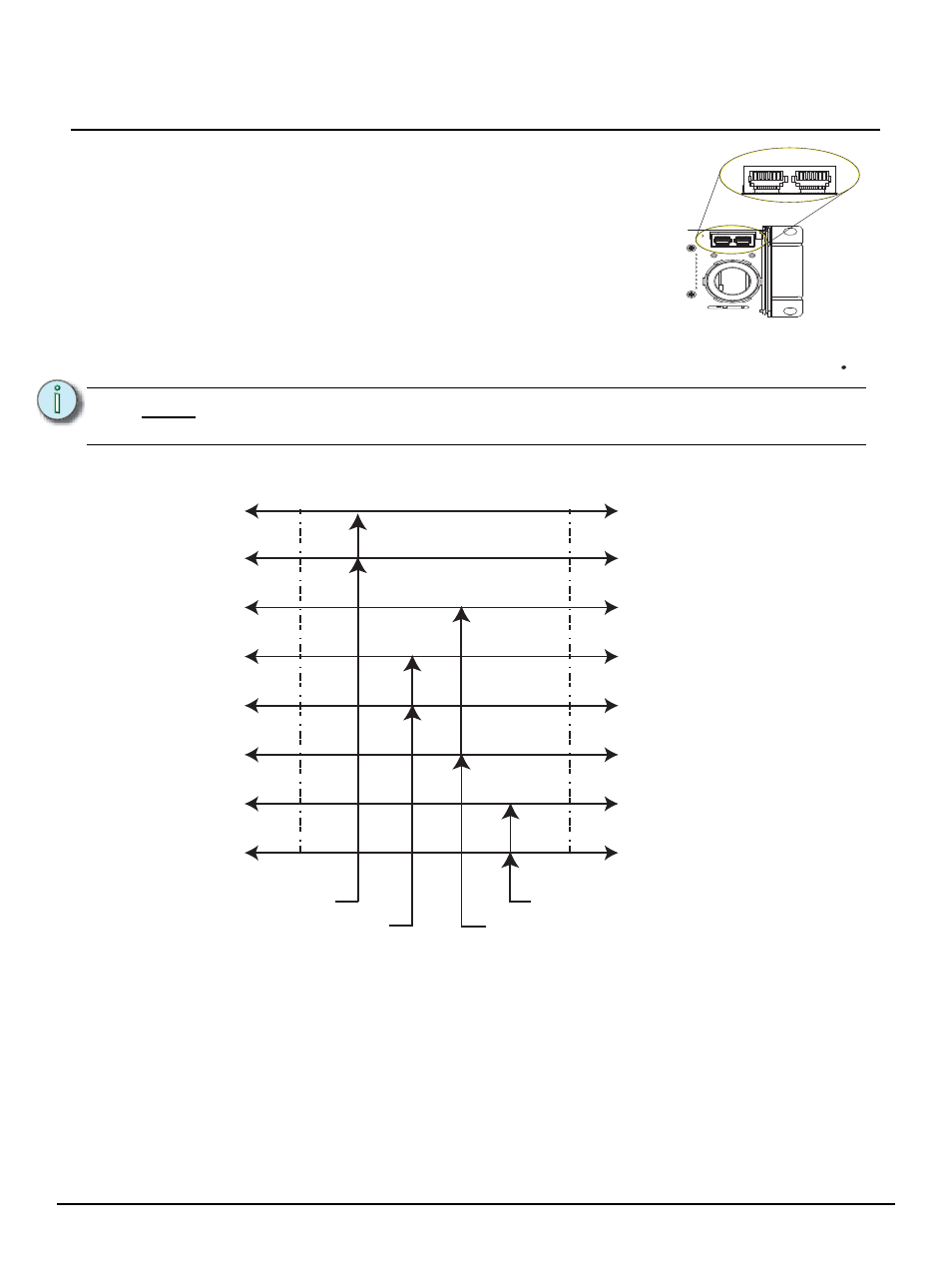

RJ45 Pinout using Cat 5 Cable
N o t e :
The 3 channel 25 A Neutral Disconnect CE SmartPack Portable dimmer pack is not
SmartLink enabled.
SmartLink
In
Thru
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
pair
pair
pair
pair
V unreg.
NET A
NET B
Ground
ISO Com
Panic Input
V unreg.
NET A
NET B
Ground
ISO Com
Panic Input
no connection
no connection
no connection
no connection
