E T C S e t u p G u i d e
SmartPack™ Portable
SmartPack Portable Setup Guide Page 2 of 6 Electronic Theatre Controls, Inc.
Electrical Requirements
CE Electrical Requirements
3 Phase Requirements (Europe)
1 Phase Requirements (Europe)
UL Electrical Requirements
Power Input
A 5 core x 6mm
2
double insulated tough rubber sheath cable (HO7) is required (not supplied).
230V / 400V AC, 50-60Hz, 3P+N+PE
• Maximum and required current 32A per phase
• Colour Code:
• Green / Yellow = Protective Earth (PE)
• Blue = Neutral
• Black = L1
• Brown = L2
• Grey or Black = L3
A 3 core x 10mm
2
double insulated tough rubber sheath cable (HO7) is required (not supplied).
230V AC, 50-60Hz, 1P+N+PE
• Maximum current 63A
• Colour Code:
• Green / Yellow = Protective Earth (PE)
• Blue = Neutral
• Brown = Phase
40A, 120V / 208V AC, 3 Phase, 4 wire and ground, 50 / 60Hz, 8/5 or 6/5 SO, SJO or equivalent
60A, 120V / 240V AC, 1 Phase, 3 wire and ground, 50 / 60Hz, 6/4 SO, SJO or equivalent
• Color Code:
• Green = Ground / Earth
• White = Neutral
• Black = L1
• Red = L2
• Blue = L3

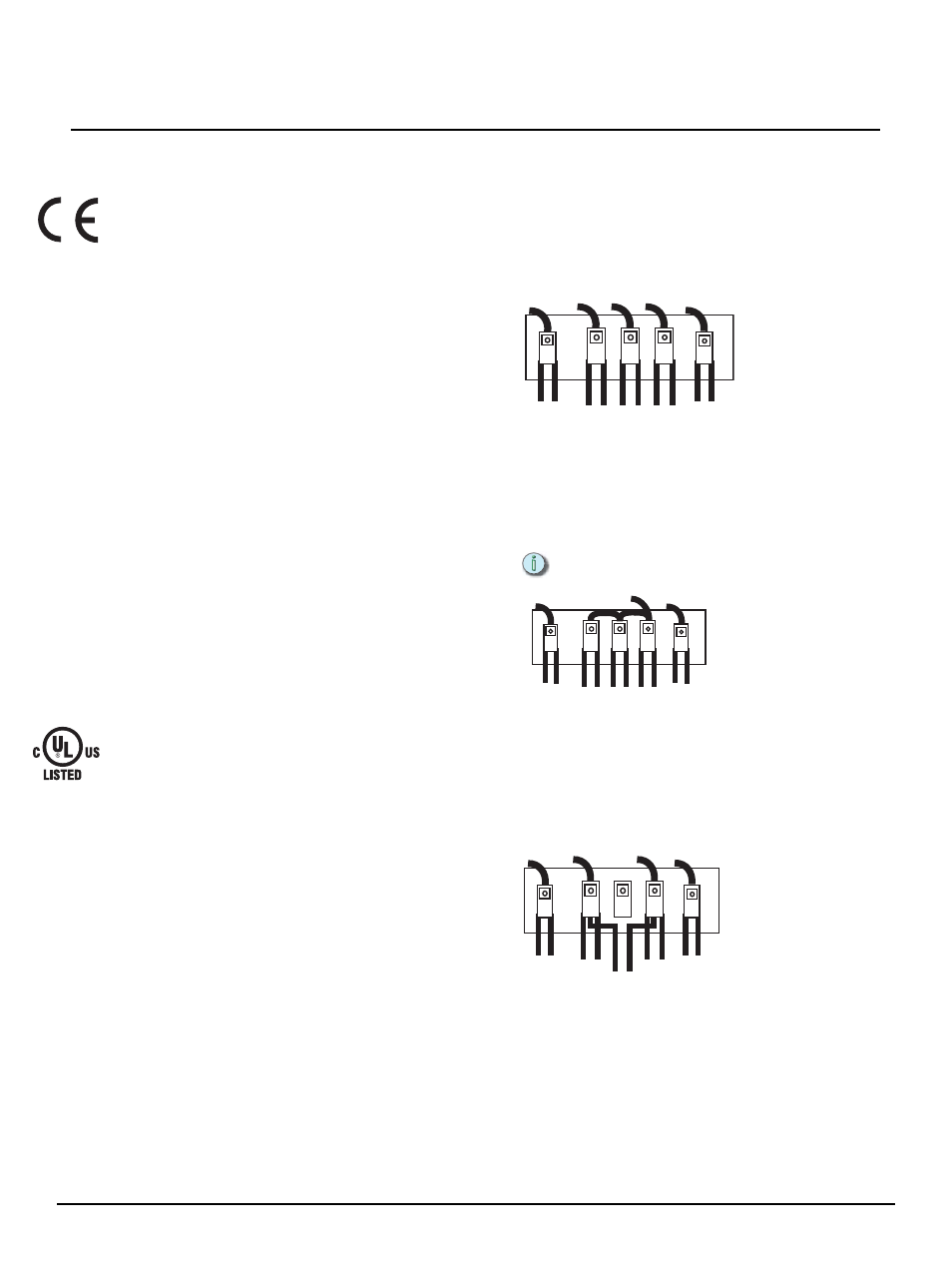

Three Phase Configuration
Earth N L1 L2 L3
To Circuit Breakers
(factory wiring)
Earth N L1 L2 L3
Single Phase Configuration (Europe)
To Circuit Breakers
(factory wiring)
Important Note
Jumper wires must match specifications for
incoming line wire.
Earth N L1 L2 L3
Single Phase Configuration (US)
To Circuit Breakers
2C 1C
2B 1B
2A 1A
