ETC Echo Lockout Station - Manual (Page 4)

E T C I n s t a l l a t i o n G u i d e
Echo
™
Lockout Station
Echo
™
Lockout Station Page 4 of 6
Step 3: Terminate and connect EchoConnect wires. EchoConnect is topology
free, you may install the wires in any combination of bus, star, loop, or
home-run.
a: Strip 3/8” (9-10mm) from the ends of each power pigtail wire, provided
in the termination kit, and the installed control wires.
b: Use one WAGO connector, provided in the termination kit, to connect
the power pigtail and the installed control wires. Open the terminal
levers on the WAGO connector and insert the installed (typically black)
Belden 8471 wire and the black lead from the power pigtail into the
terminals. Then close the levers.
c: Repeat for the installed (typically white) Belden 8471 power wires and
the remaining white wire from the power pigtail using a new WAGO
connector.
d: Install the two pin connector from the power pigtail to the mating
receptacle on the station electronics.

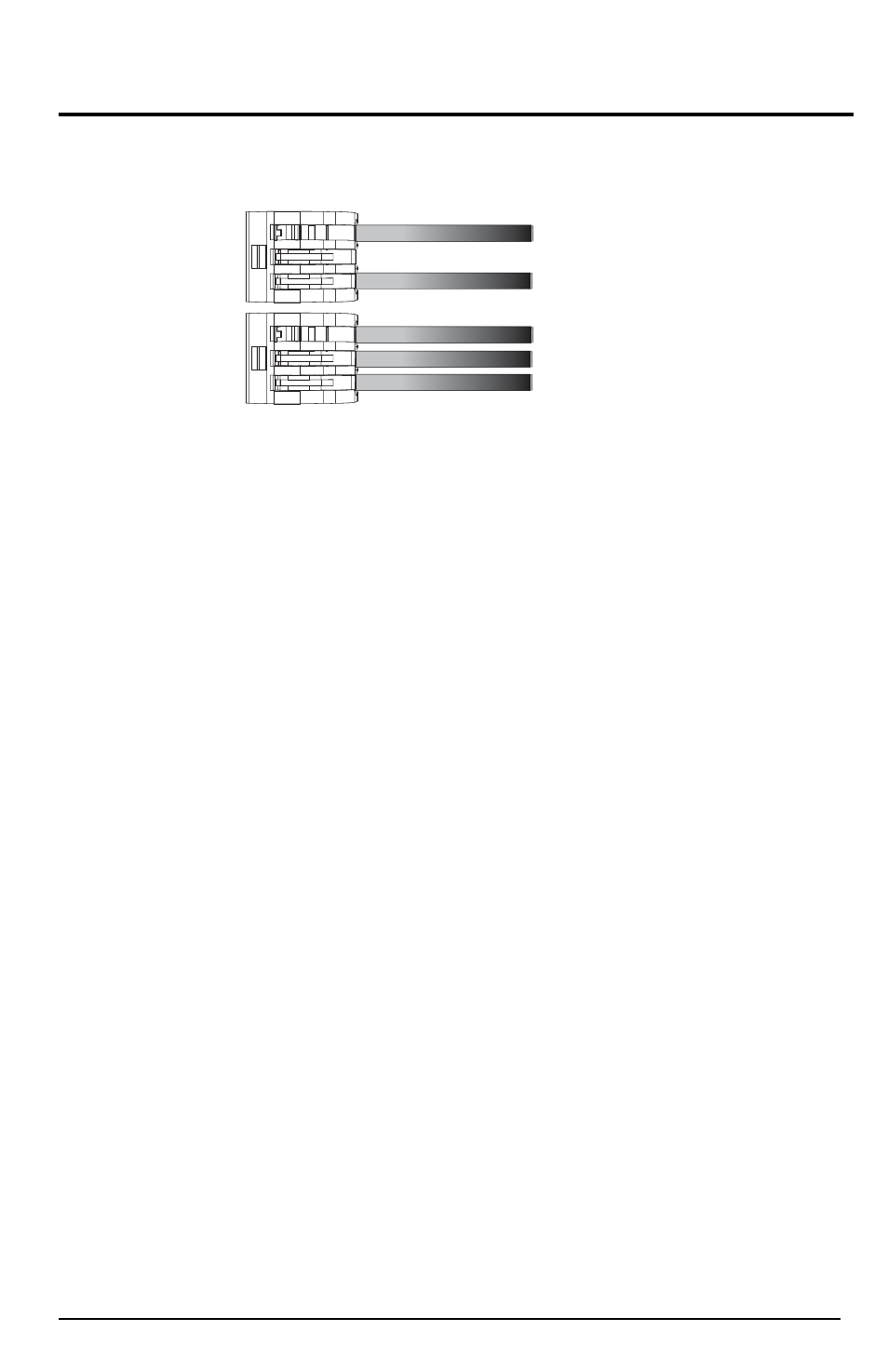

Topology of a
single station
installation
Topology of
multiple stations
installed in series
Installed control wire
Pigtail wire
Installed control wire
Installed wire to next station
Pigtail wire
