Electrical – ERICO LENTON Mid-Range Bar Threader User Manual
Page 5
www.erico.com
5
Electrical
4
3
2
1
5

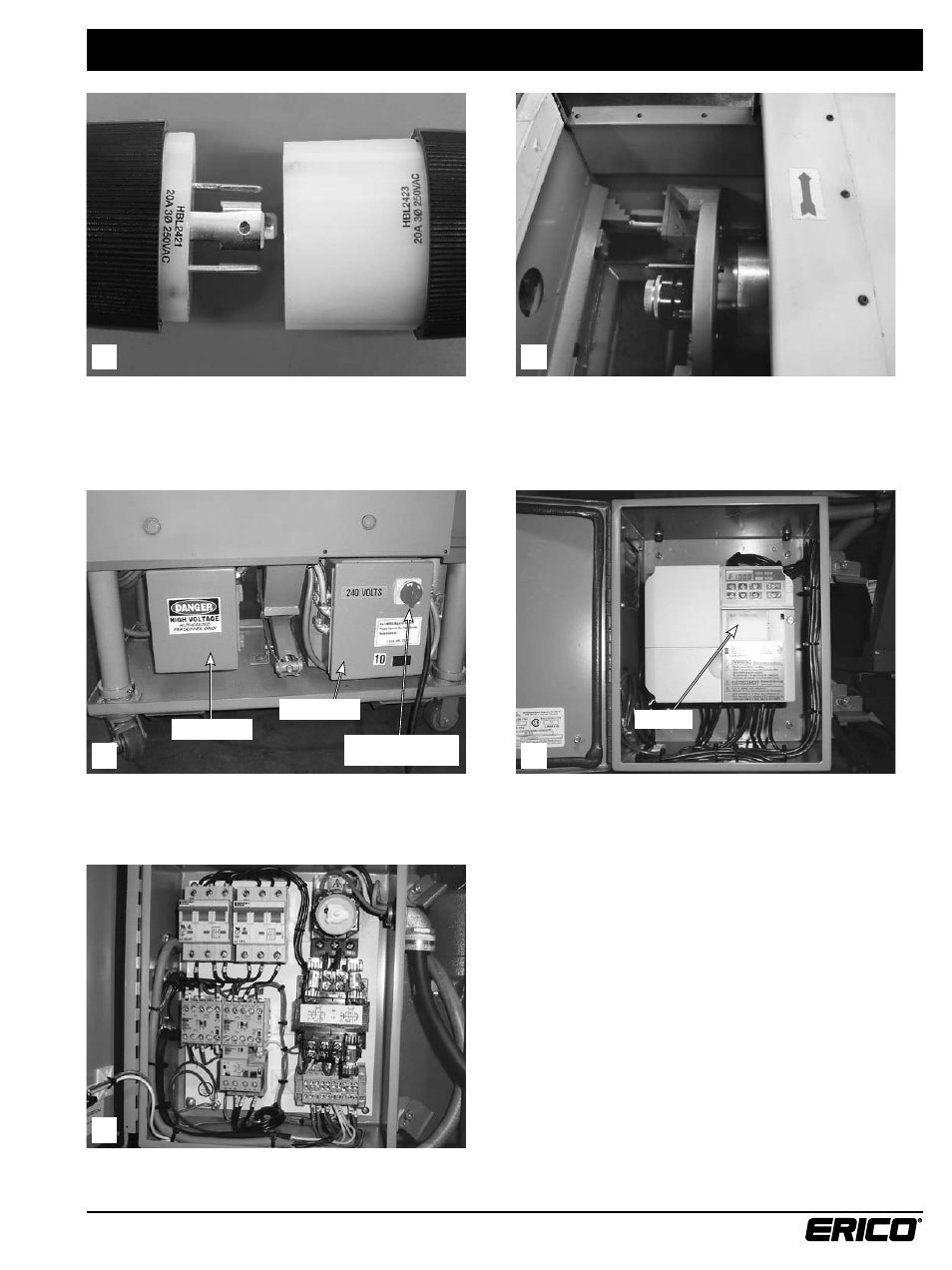

View of inside the Power Panel.
The Mid-Range Bar Threader requires 220-240 volt,
3 phase power. A four-pronged locking plug as shown
is standard.
After connecting the power be sure the head of the bar
threader is rotating in the direction indicated by the red
arrow on the hood. If it is not rotating in the correct
direction, switch any two of the power leads in the plug.
View of Inverter Box and Power Panel. The Red Knob
located on the Power Panel is the main power
disconnect switch.
View of inside the Inverter Box. The Inverter controls the
high and low speed on the DC Motor.
Inverter
Inverter Box
Power Panel
Main Power
Disconnect Switch
