Threading Operation

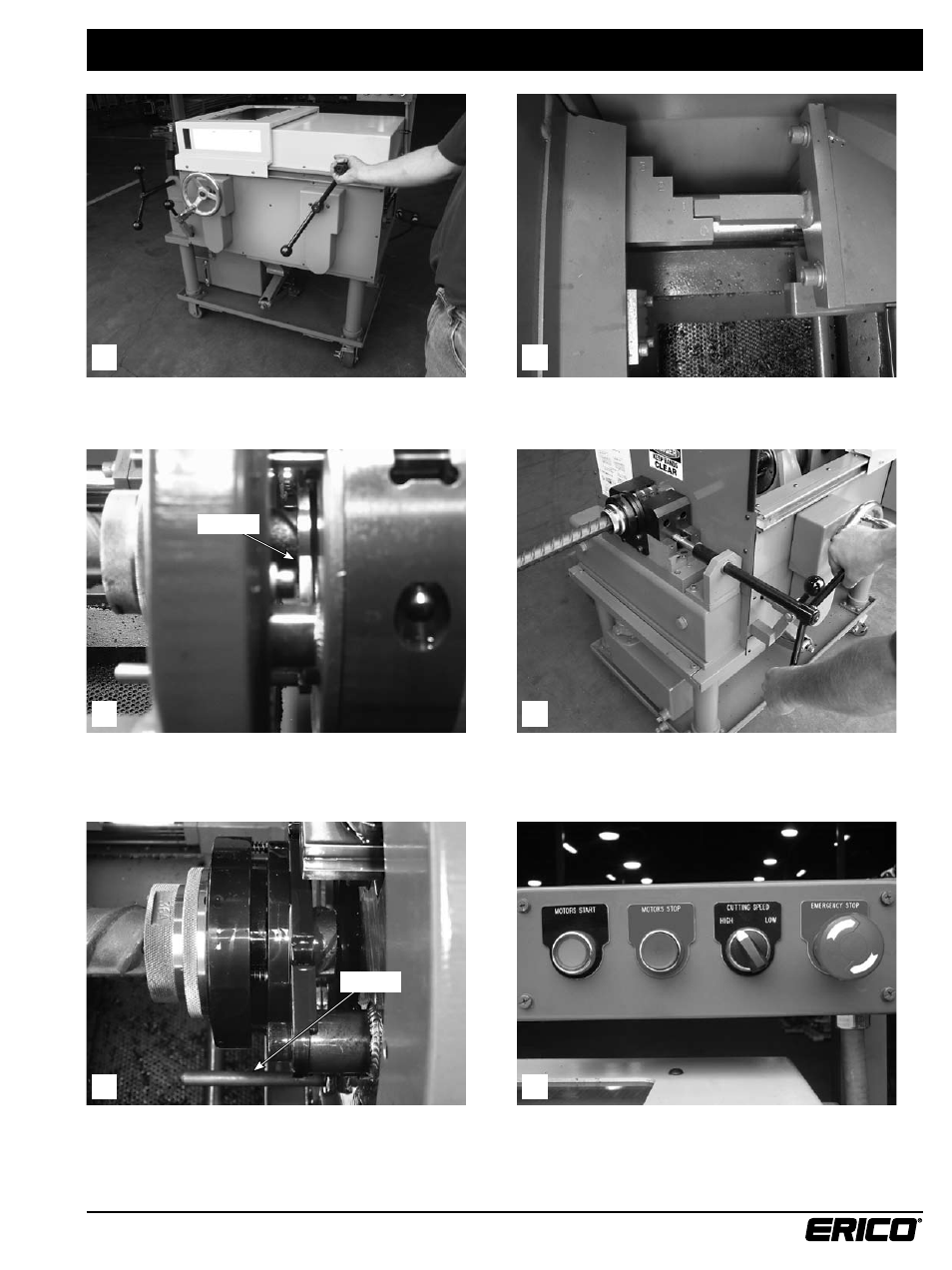

Prior to positioning the rebar in the machine, be sure that
the machine carriage is all the way back to the right.
Also be sure that the step drum is in the correct
starting notch.
Position the Bar Stop so that it covers the hole in the
face plate. Butt the rebar up against it. This assures the
correct bar placement into the bar threader.
Once the bar is in position tighten the vise.
Make sure the vise is good and tight to prevent
bar rotation during threading.
Move the Bar Stop away from the bar.
To turn on the machine, the safety hood must be in
the forward position. Select the proper cutting speed
(Bar sizes #4 through #11 – High, #14, #18 – Low)
then press the motors start button.
6
5
2
1
4
3
Bar Stop
Bar Stop
