Change control block – ERICO LENTON Mid-Range Bar Threader User Manual
Page 16
www.erico.com
16
Change Control Block
5
4
3
2

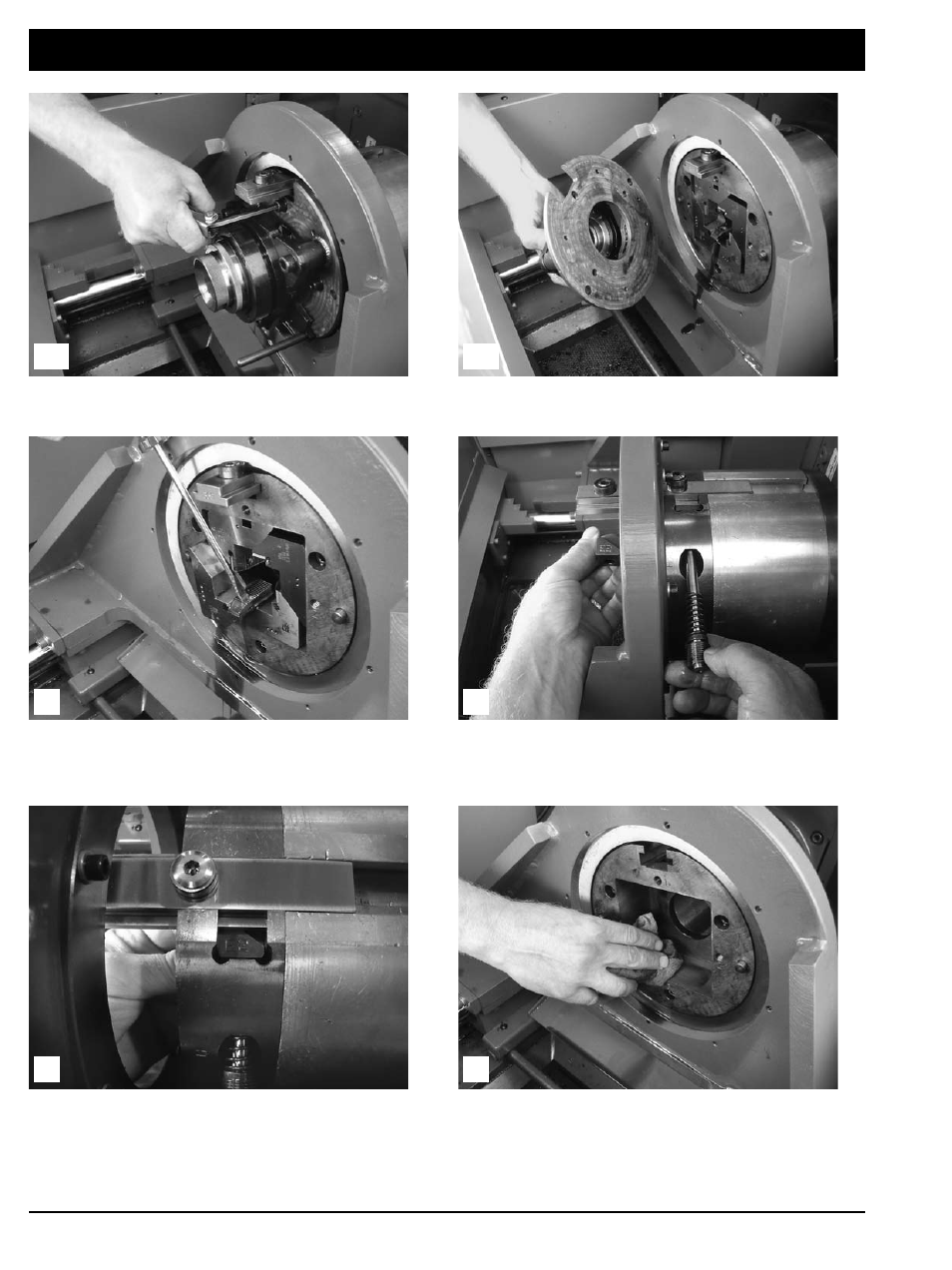

To change the control block, remove the face plate.
Three bolts hold it in place.
Remove the chaser holders from the cutting square as
shown above.
To remove the control block loosen the support rod screw
and pull out the support rod and spring. This will free the
control block to fall down.
Position the new control block as shown. Replace the
support rod, spring, and screw. The support rod goes
through the hole in the control block.
Before replacing the holders make sure the cavity in the
head and the holders are clear and free of chips.
