Change chasers and holders – ERICO LENTON Mid-Range Bar Threader User Manual
Page 14
www.erico.com
14
15A
15B
14

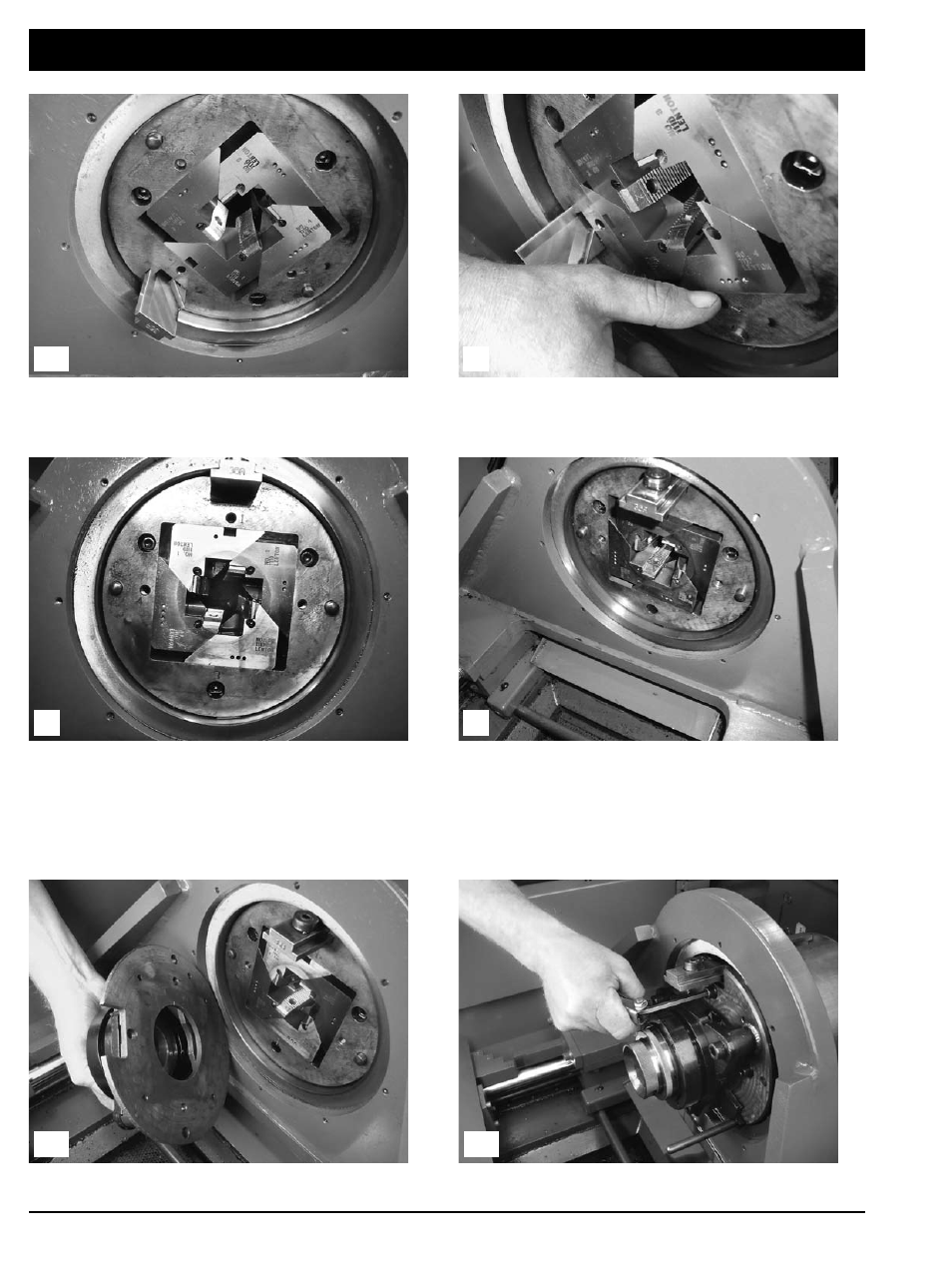

After the holders have been installed in the cutting
square, check that the numbers on the face of the
holders match the corresponding numbers on the
face of the cutting square.
After the holders are installed into the head correctly, wipe off the face plate and fasten it to the head.
Change Chasers and Holders
Step 4 – Slide #3 holder into position.
After installing the chaser holders, check to see that they
do not protrude outside of the cutting head. This would
prevent free holder movement during threading. If any
do protrude outside, remove them and reclean the head
and holder(s). Also look over the holder for any burrs that
might need taking down with a stone.
After sliding all of the holders into position, use your
thumbnail to make sure that the holders are recessed
inside the cutting square.
11E
12
13
