Change control key – ERICO LENTON Mid-Range Bar Threader User Manual
Page 10
www.erico.com
10
10
11
8
9
7
6

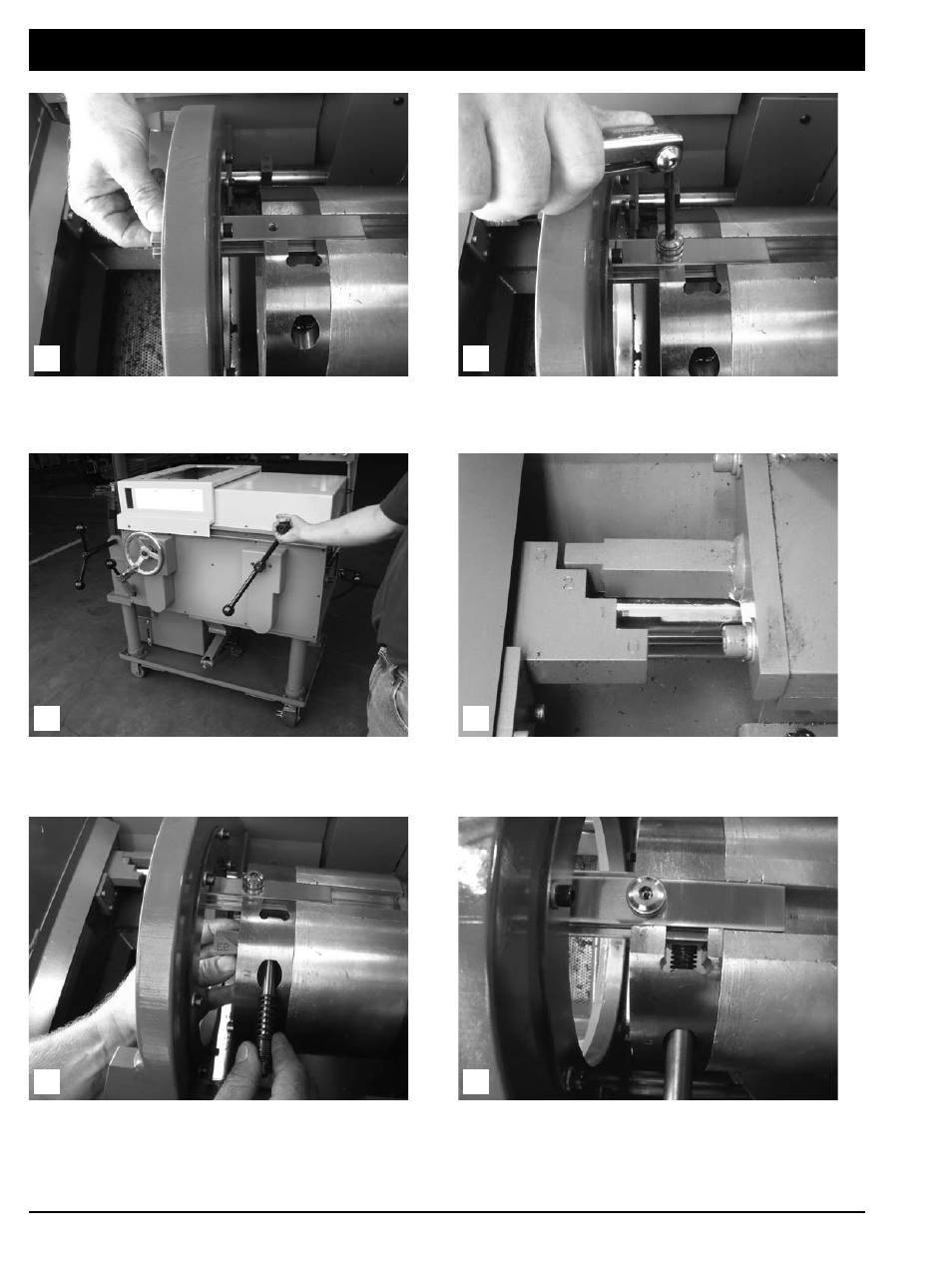

Change Control Key
Slide the key out. Each key is stamped on the front with
the metric bar size.
Slide in the new key and replace and tighten both the
front and rear bearings.
Before tightening the threaded bushing down make sure
that carriage is all the way back to the right.
While holding the feed handle back move your control ring
handle forward into step drum position number three.
When installing the new control block in the cutting square
replace the support rod, spring, and screw. The support rod
goes through the hole in the control block and engages in
a hole on the other side of the cutting square.
You should always tighten your threaded bushing down
until the spring is fully compressed then back off half of
a turn.
