Change chasers and holders – ERICO LENTON Mid-Range Bar Threader User Manual
Page 12
www.erico.com
12

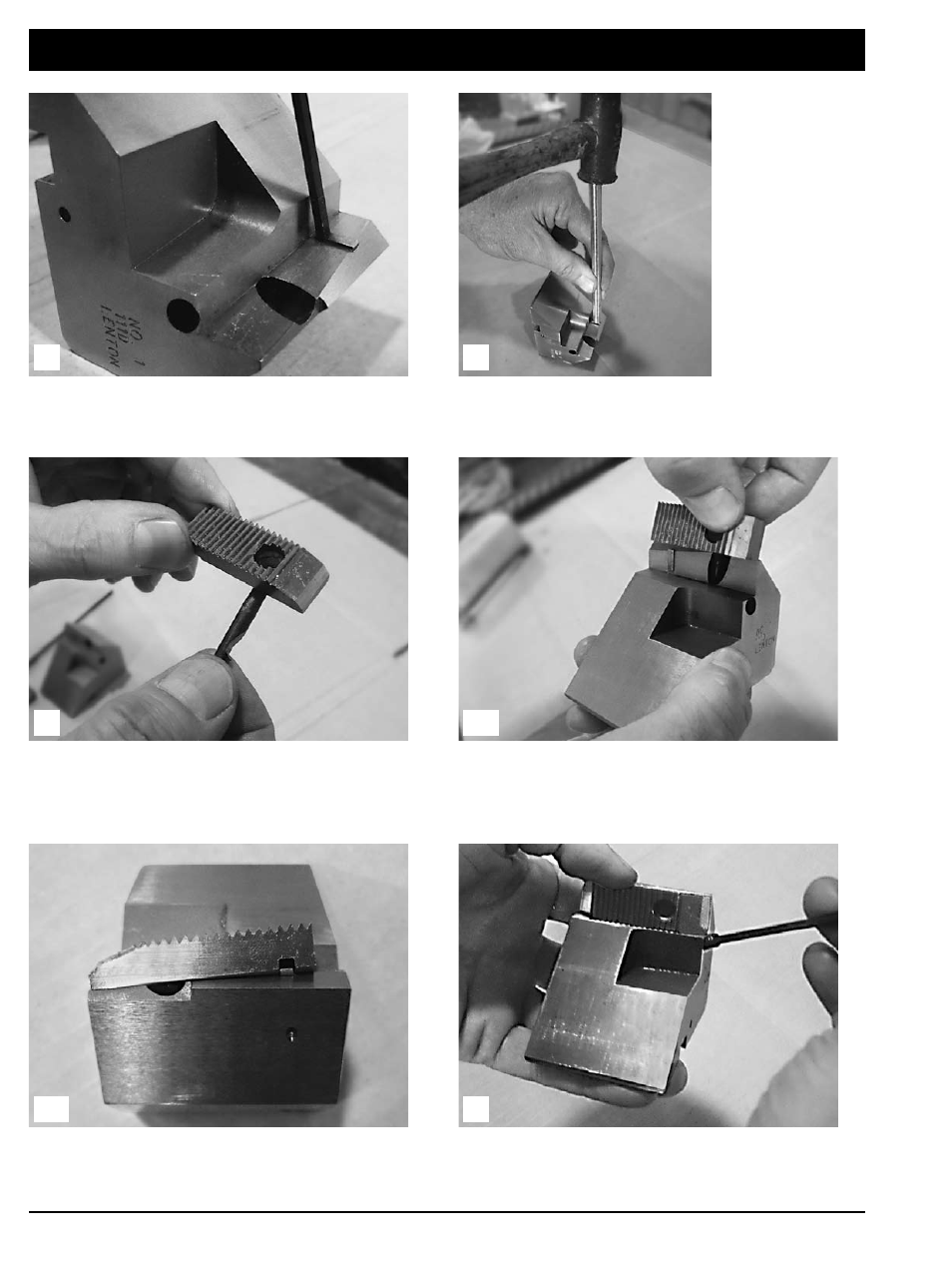

Before installing the chaser make sure the woodruff key
is tight. Press on both ends of the woodruff key with an
allen wrench, it should not move.
To replace a woodruff key, set the key into the slot by
hand and drive into position using a hammer and punch.
Take the hold down pin (ELMP203PIN) and place it through
the hole of the chaser as shown above.
Insert the chaser pin into the top hole of the holder and
push down making sure that the woodruff slot aligns with
the woodruff key until the chaser sits completely flush on
the holder shelf.
This is what a chaser looks like when it is installed correctly
onto the holder.
After the chaser is installed correctly on the holder, hold
the chaser in place while tightening down the set screw
against the hold down pin.
Change Chasers and Holders
6
5
7
9
8A
8B
