DC Whistle Installation Guide

Cables (Optional)

MAN-DCWHIIG (Ver. 1.101)

www.elmomc.com

74

5.6.2.

CAN (CBL-RJ45CAN1)

RJ-45 Pin
No.

Color

D-type Female
Pin No.

Signal

Description

1

Green

7

CAN-H

CAN_H bus line

2

Yellow

2

CAN_L

CAN_L bus line

3

White

3

CAN_GND

CAN ground

4

5

7

8

body

Drain Wire body

shield

cable shield

1

Note:

The shields of the RJ-45 and D-type plugs are connected to each other through the

cable braid.

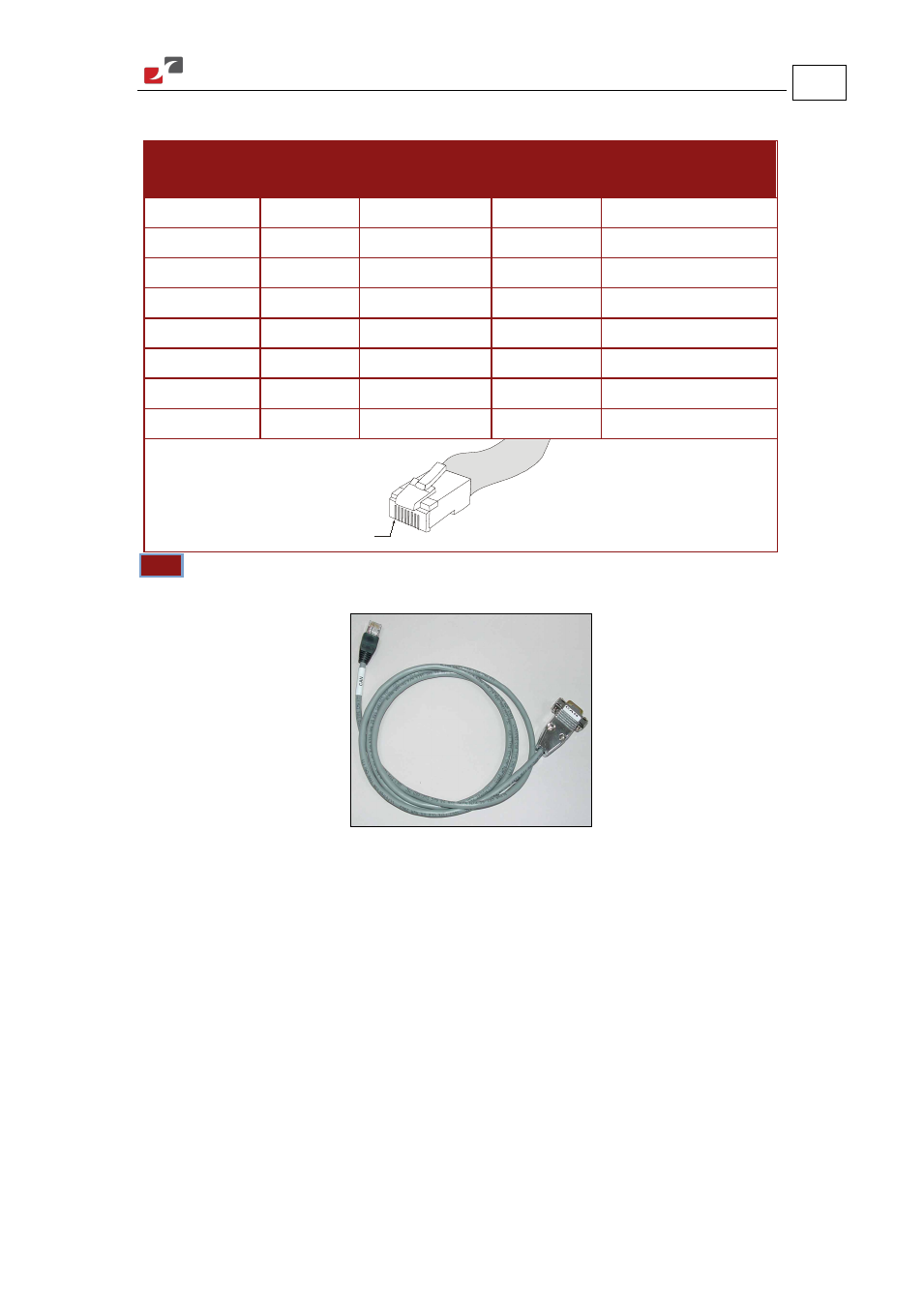

Figure 35: CAN Cable (Part No. CBL-RJ45CAN1)
