DC Whistle Installation Guide

Installation

MAN-DCWHIIG (Ver. 1.101)

www.elmomc.com

30

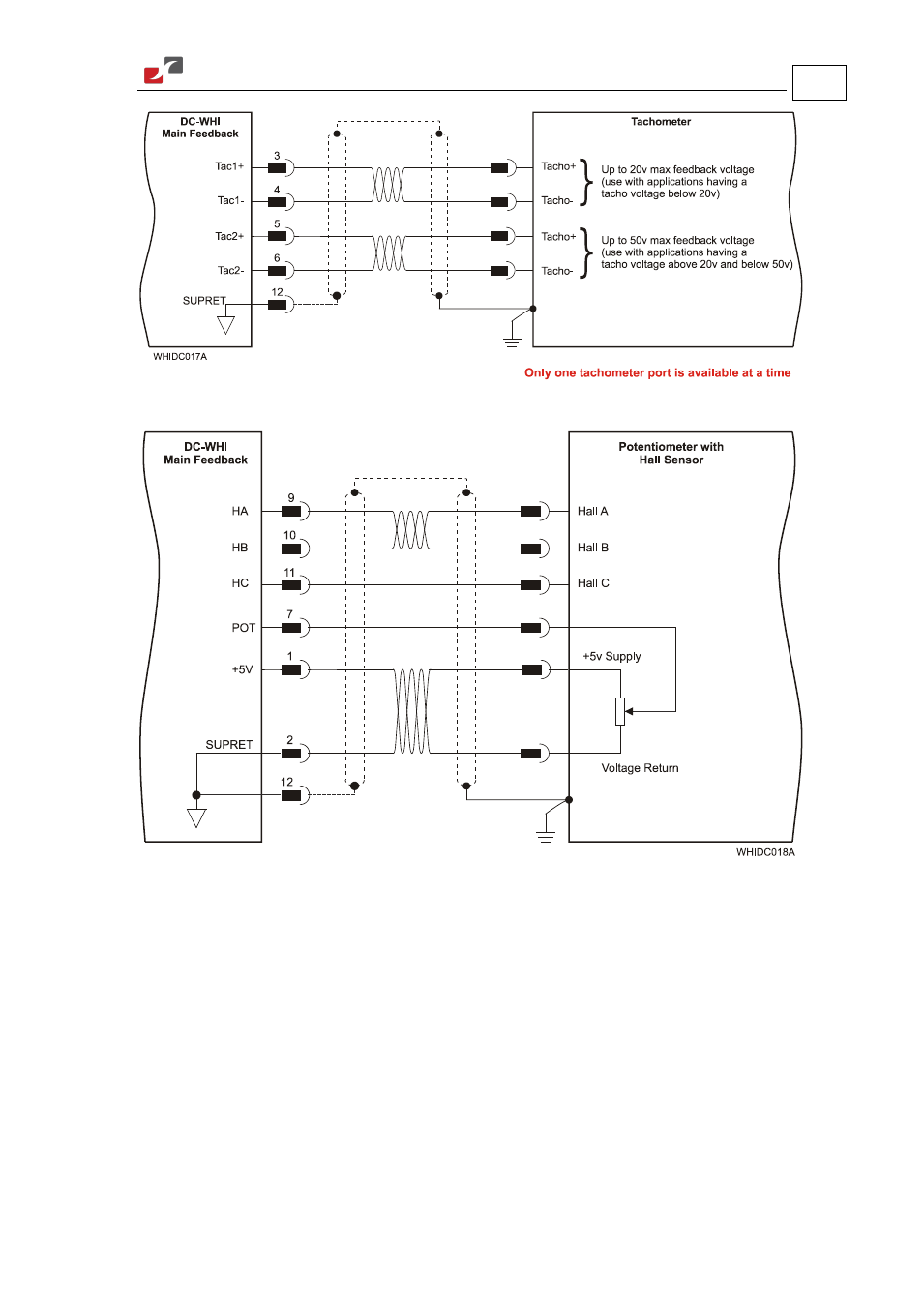

Figure 14: Main Feedback – Tachometer Feedback Connection Diagram for Brush Motors

Figure 15: Main Feedback – Potentiometer Feedback

with Digital Hall Sensor - Connection Diagram for Brushless Motors
