DC Whistle Installation Guide Cables (Optional)
MAN-DCWHIIG (Ver. 1.101)
www.elmomc.com
72

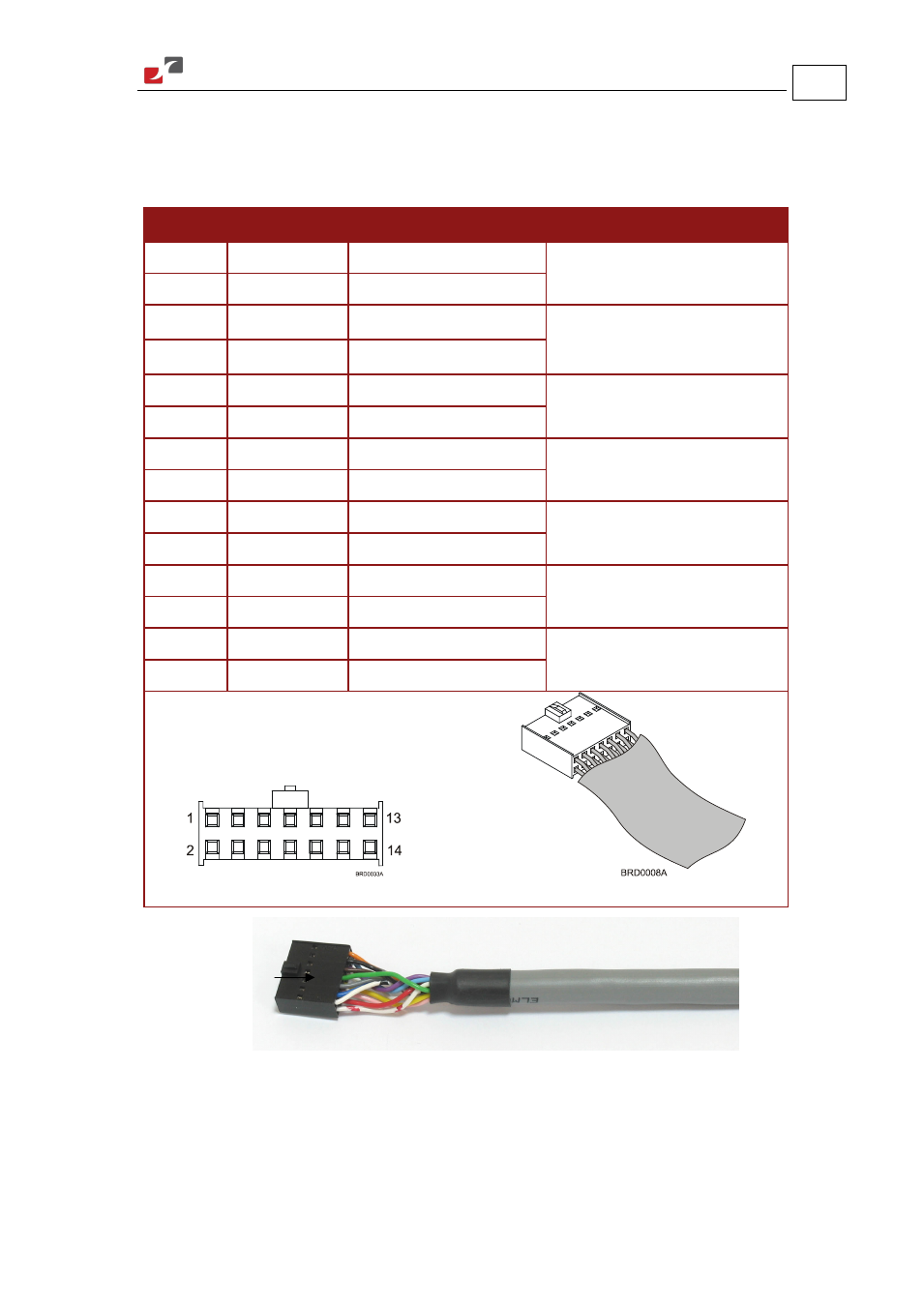

5.5. I/O (CBL-HDRIO-001)
The I/O cable (CBL-HDRIO-001) is made of a 24-AWG shielded cable with a 14-pin Molex
Header socket. It connects to the I/O port on the DC Whistle.
Pin Color Signal Pairs
1 Orange OUT1 pair
2 Cyan OUTRET1/OUTRET 1,2
3 Black OUT2 pair
4 Purple OUTRET2
5 Brown IN1 pair
6 White IN2
7 Green IN3 pair
8 Yellow IN4
9 Gray IN5 pair
10 Pink IN6
11 Blue INRET pair
12 Red COMRET
13 White-Black ANALIN1+ pair
14 White-Red ANALIN1-
Front View 14 pin Molex Header Socket
Figure 33: Single-Sided I/O Cable (Part No. CBL-HDRIO-001)
Front
View
