DC Whistle Installation Guide Installation
MAN-DCWHIIG (Ver. 1.101)
www.elmomc.com
16

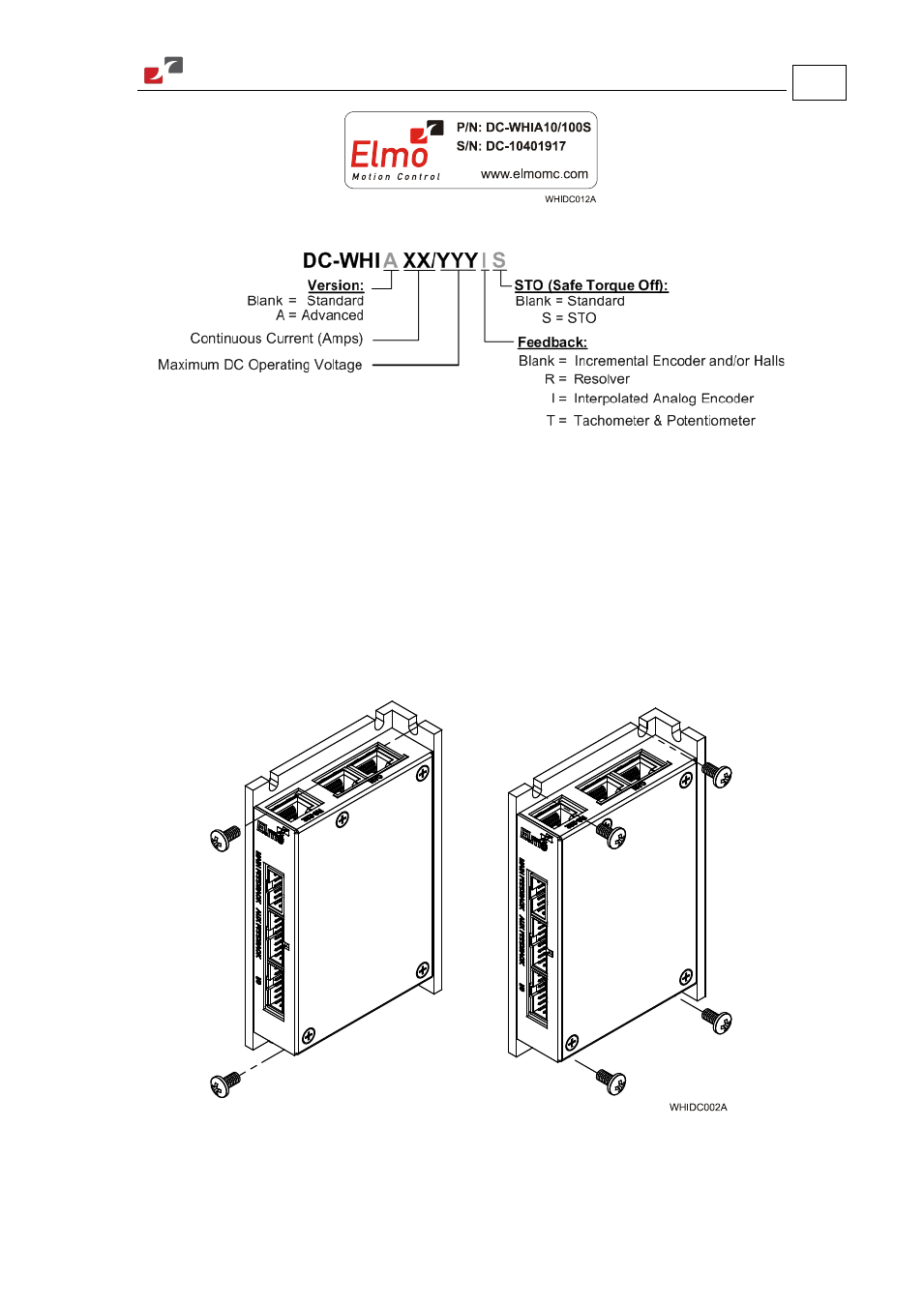

The part number at the top gives the type designation as follows:
Verify that the DC Whistle type is the one that you ordered, and ensure that the voltage meets
your specific requirements.
3.3. Mounting the DC Whistle
The DC Whistle has been designed for two standard mounting options:
• Wall Mount, along the back (can also be mounted horizontally on a metal surface)
• Book Shelf, along the side
M4 round head screws, one through each opening in the heat sink, are used to mount the DC
Whistle (see the diagram below).
Figure 2: Mounting the DC Whistle
