DC Whistle Installation Guide

Installation

MAN-DCWHIIG (Ver. 1.101)

www.elmomc.com

21

3.7. DC Whistle Connection Diagram

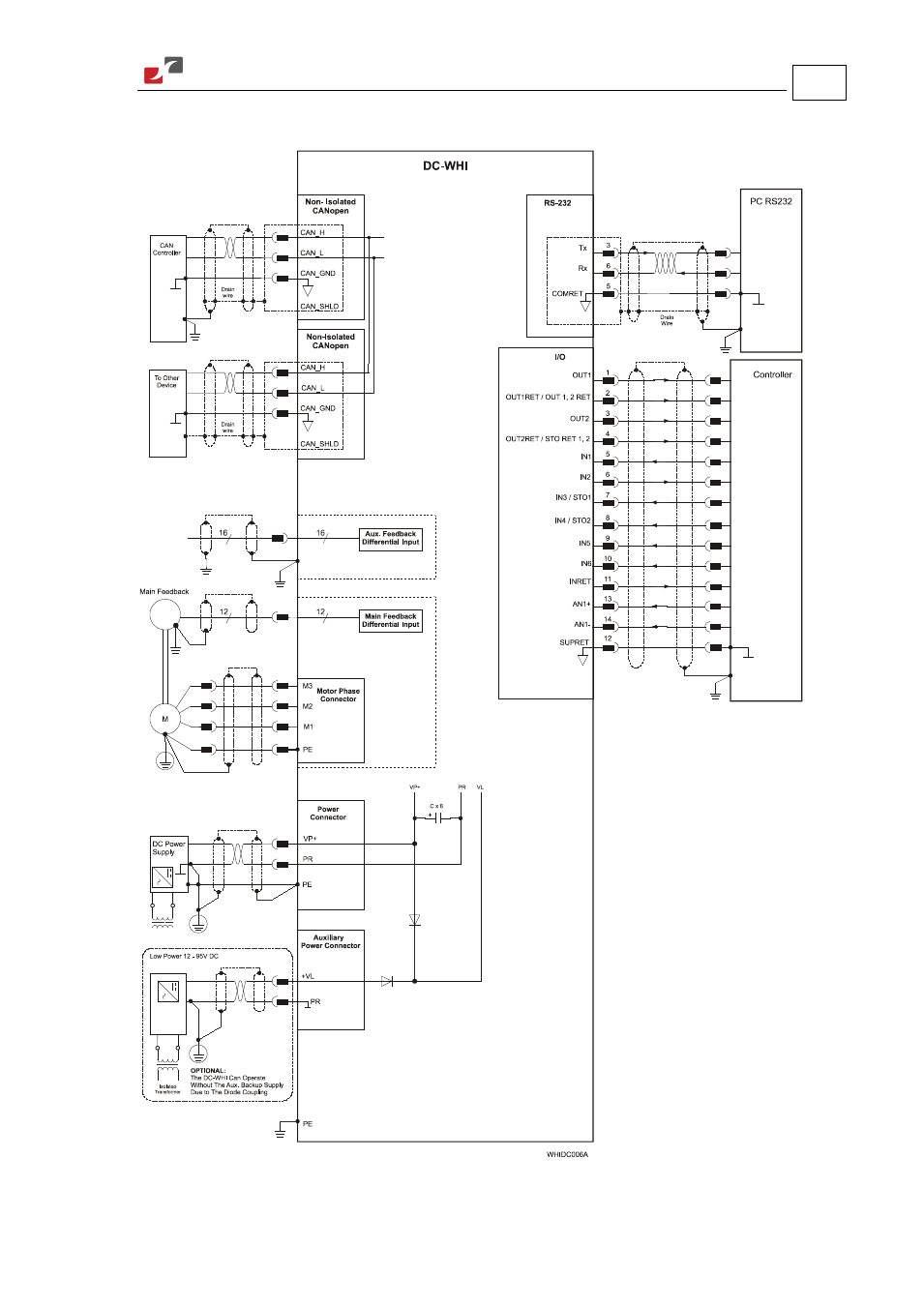

Figure 3: DC Whistle Connection Diagram
