DC Whistle Installation Guide

Installation

MAN-DCWHIIG (Ver. 1.101)

www.elmomc.com

18

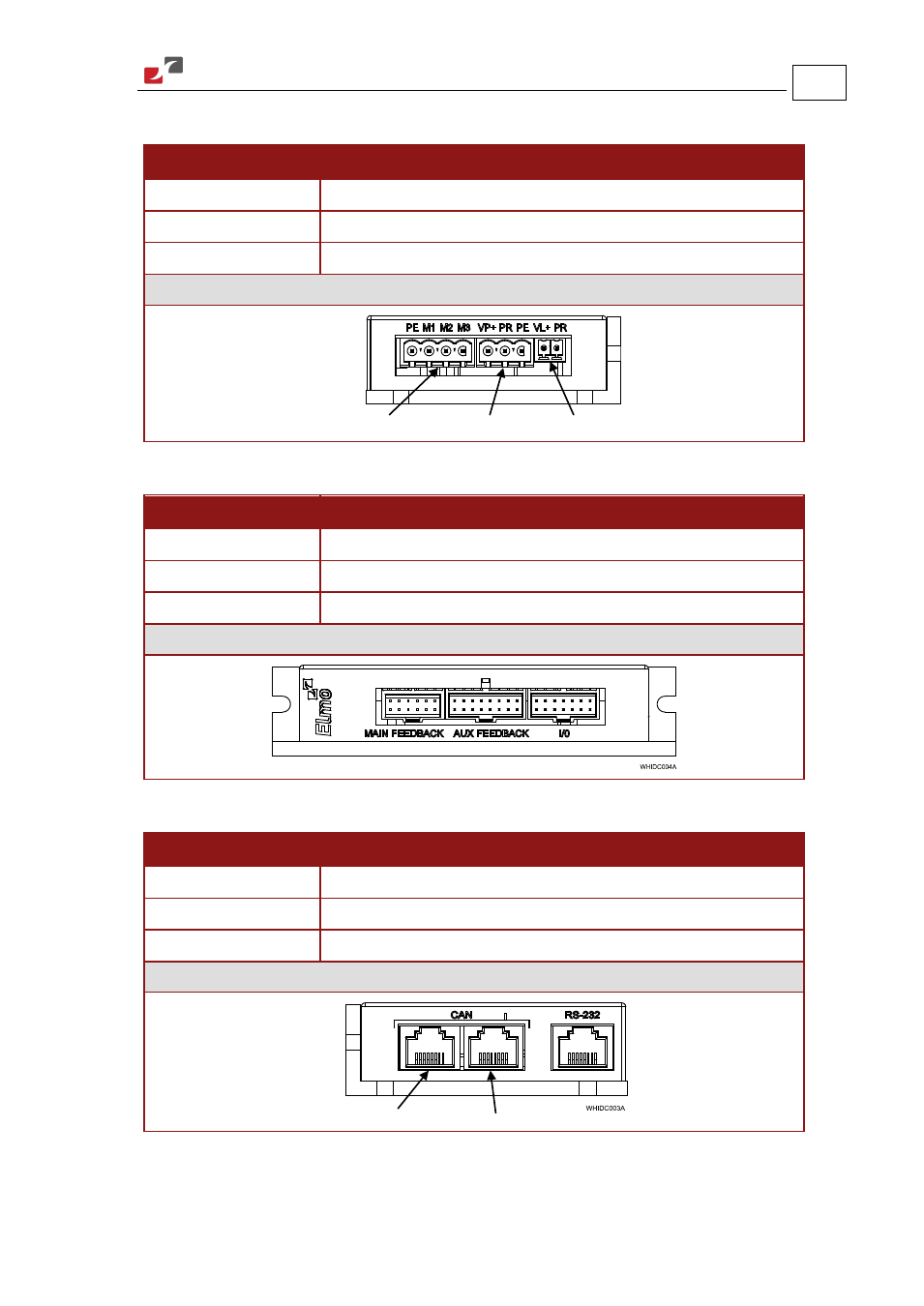

The following connectors are used for wiring the DC Whistle:

Type

Function

Main Power

VP+, PR, PE

Motor Power

PE, M1, M2, M3

Aux. Power

VL+, PR

Connectors Location

Table 1: Connectors on the “Power Connectors side” of the DC Whistle

Type

Function

Main Feedback

Feedback

I/O

I/O

Auxiliary Feedback

Auxiliary Feedback

Connectors Location

Table 2: Connectors on the “Feedback and I/O side” of the DC Whistle

Type

Function

CAN

CAN IN

CAN

CAN OUT

RS-232

RS-232

Connectors Location

Table 3: Connectors on the “Communication side” of the DC Whistle

Motor Power

Main Power

Aux. Power

CAN IN

CAN OUT
