DC Whistle Installation Guide

Installation

MAN-DCWHIIG (Ver. 1.101)

www.elmomc.com

43

1.1.1.1

Digital Input

Note:

The Default Digital Input level Signal is set to 24 V (PLC).

5 V is also available (TTL).

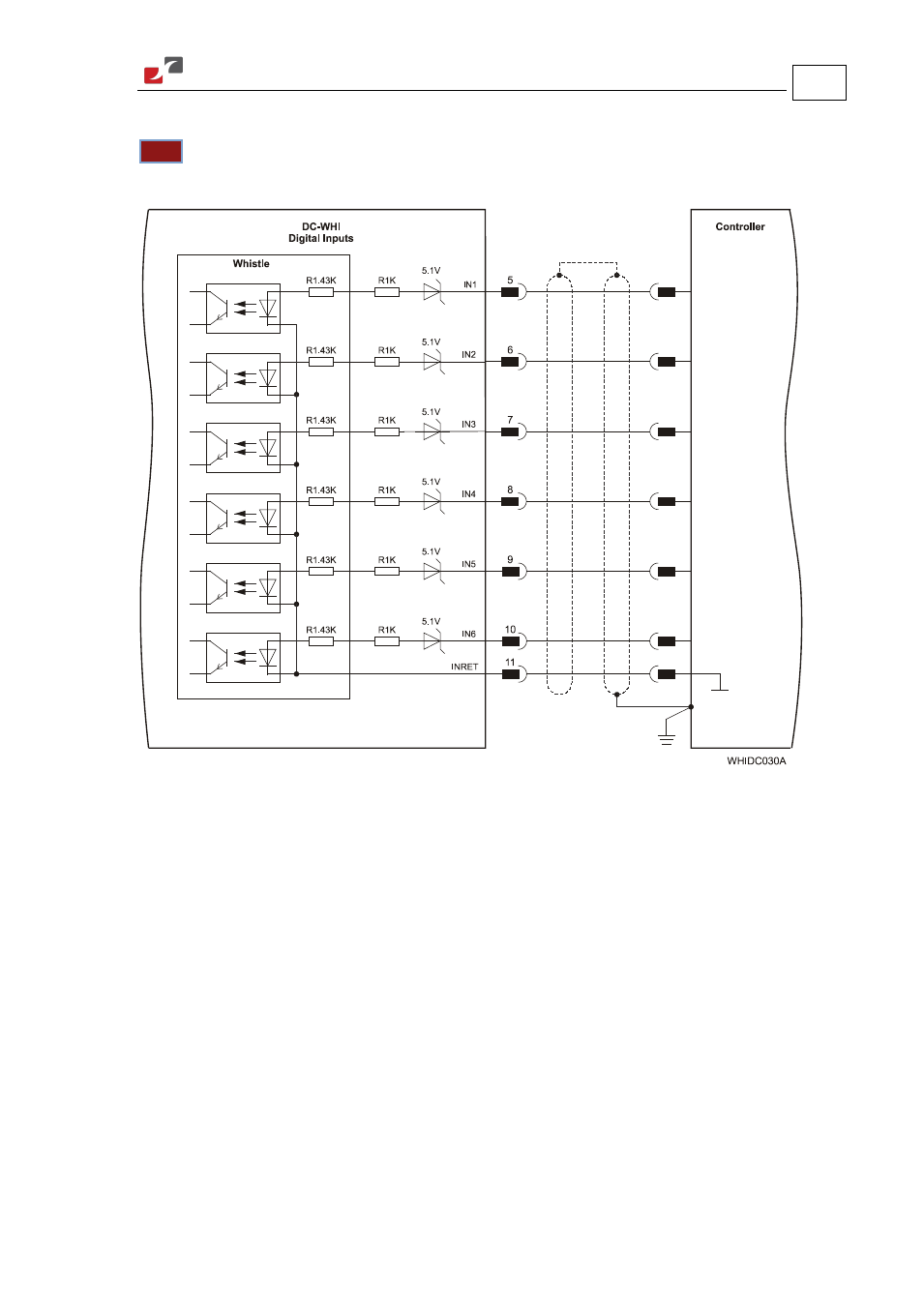

Figure 21: Digital Input Connection Diagram
