DC Whistle Installation Guide

Installation

MAN-DCWHIIG (Ver. 1.101)

www.elmomc.com

25

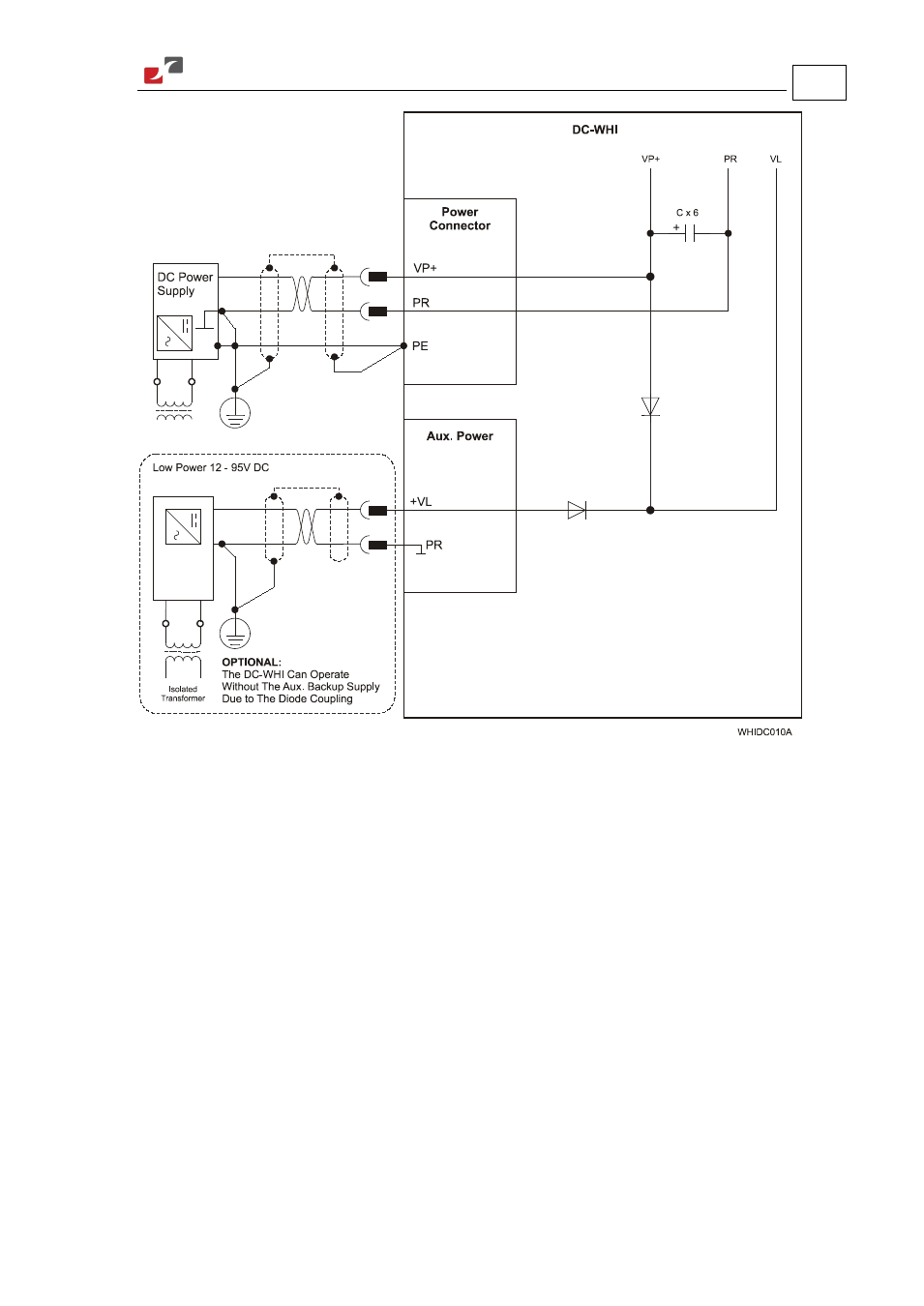

Figure 7: Shared Supply Connection Diagram
