10. The third and final segment is the COOLDOWN MODE. In Cooldown mode, water valves
are energized to bring the chamber to a safe unloading temperature.
a. Set water cooling flow meter to 3 GPM (11 LPM), and adjust if necessary.
b. Water cooling flowmeter is located on the lower left side of the oven.
5.3.6. Main Disconnect and Manual Unlock
5.3.6.1. Main Disconnect Switch
This disconnect switch (Figure 21) is connected to the load break switch
behind the panel that disconnects or connects power from the main line.
Both the LCC/LCD2-14 oven and the LCC/LCD2-14PT-3 Pass-Through oven
have a disconnect switch on the front control panel door.

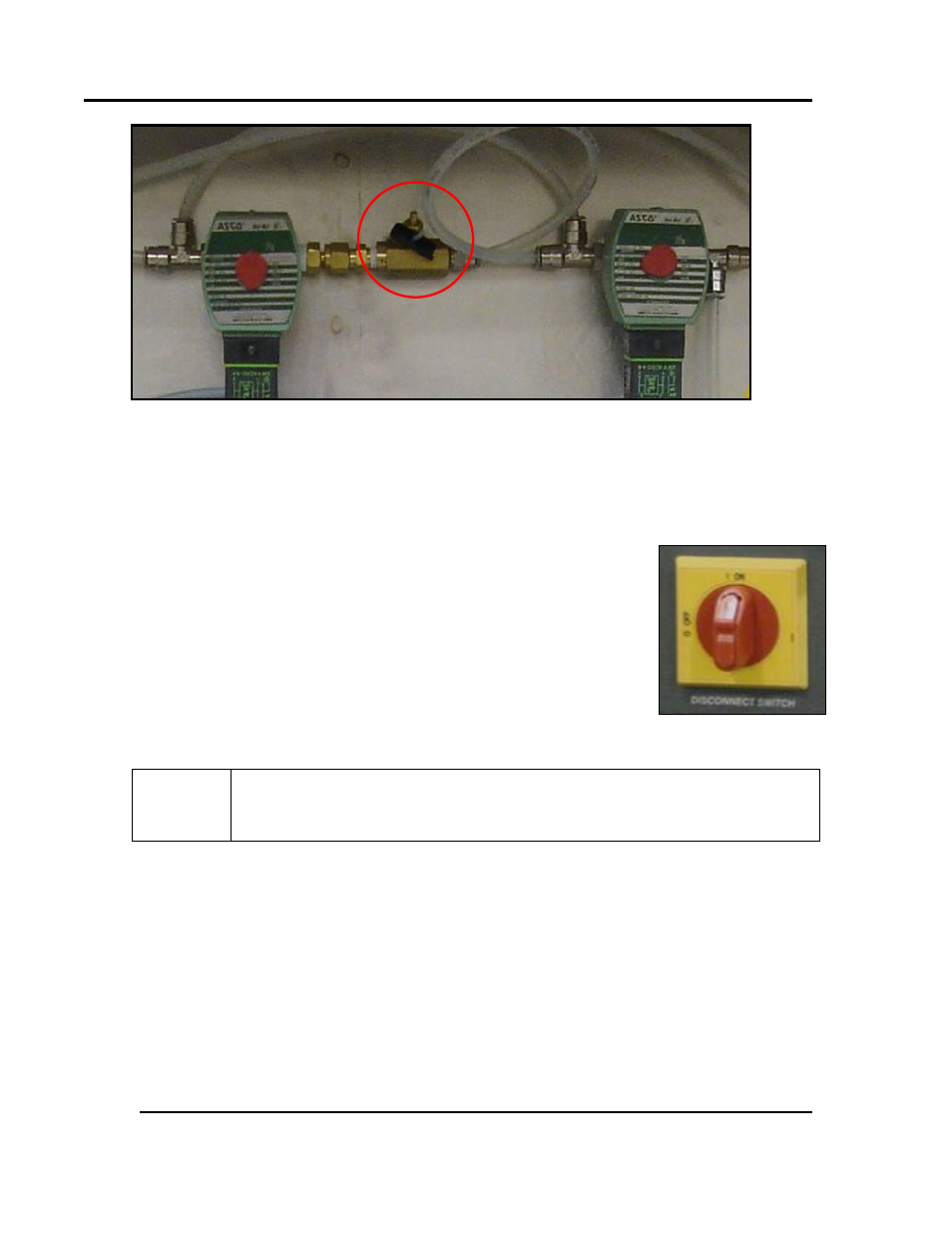

Figure 20. Adjust Nitrogen needle valve (in compartment beneath oven).
Figure 21. Main
Disconnect Switch.
