5.3. Operating Procedure

5.3.1. Start The LCC/LCD2-14 Oven

1. Turn the yellow/red

DISCONNECT SWITCH

to ON (Figure 17).

2. Press the

POWER

for ON.

a. The door remains unlocked.



For Optional Beacon Light-equipped Units Only: The amber
(center) beacon light will illuminate, indicating that the oven is
ready to receive work to be processed (Figure 7).



For LCC/LCD2-14 Class A ovens: Once the power switch is turned
one and the recirculation fan and exhaust fan are turned on, the
airflow switch will actuate and the purge timer will begin timing.

The heater will not turn on and the oven will not begin heating
until the purge period is complete.

3. The heater is wired in series with the door switch. The door must be completely closed and

locked to activate the heater.



During the process cycle the door is locked. To unlock the door
press STOP or remove power from oven using the DISCONNECT
SWITCH.

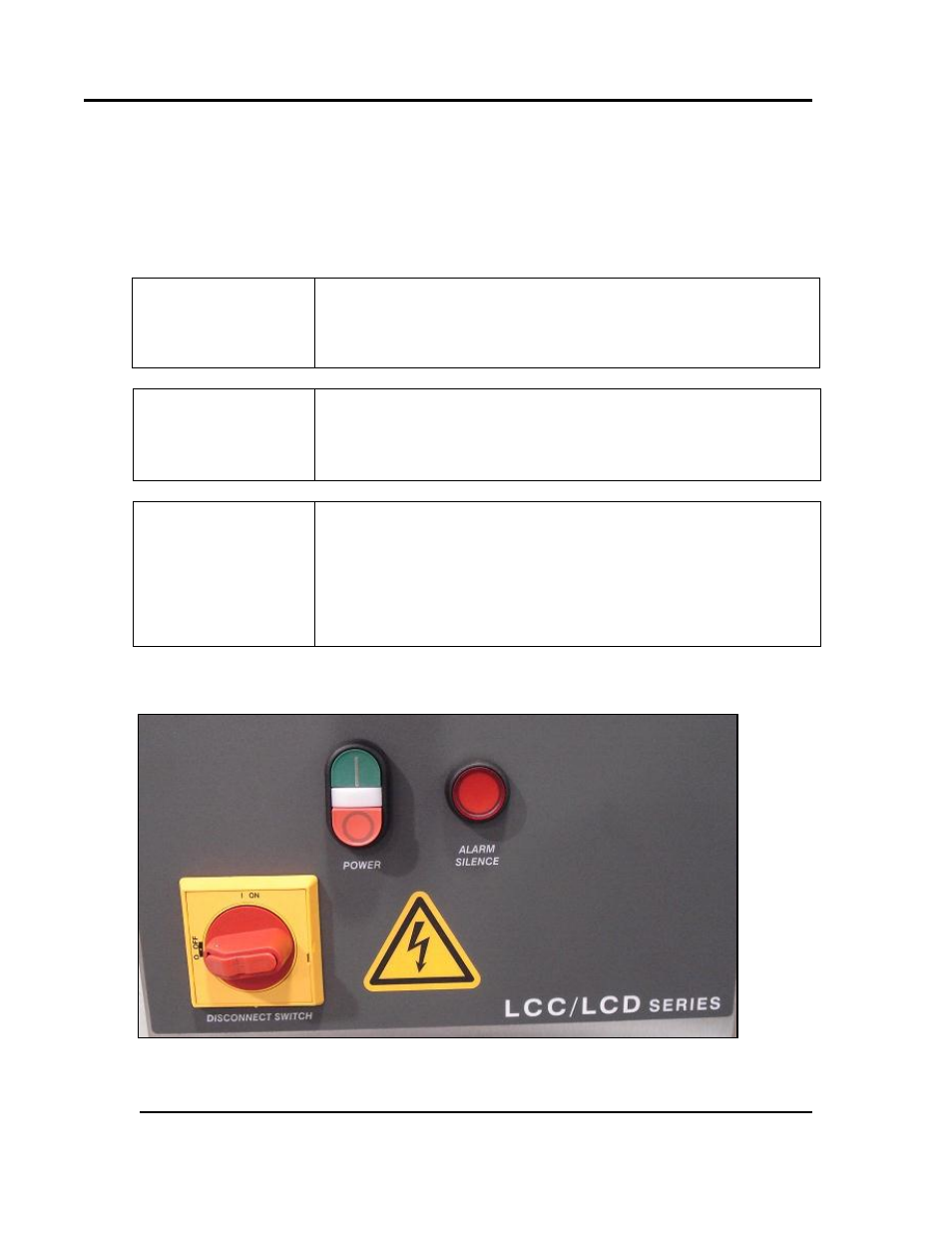

Figure 17. Power the LCC/LCD2-14 Oven.
