4.2.4. Wiring & Power Connections
A conduit fitting for customer power line is located on the rear left of
the oven (Figure 10).This conduit runs up to the front control panel,
where wires can terminate at the disconnect switch.

Locate the conduit and run power (Figure 10 and Figure 11).
Consult electrical drawings included with the oven for details
(Section 8.4).

Connect the line voltage power to the disconnect switch labeled
LINE CONNECTIONS (Figure 11).
Danger!
Contact with energized electrical sources may result in serious
injury or death. All wiring to be completed by properly trained
and licensed personnel.

The oven must be hardwired directly to the disconnect switch
on the equipment panel (Figure 11).
Danger!
All grounding and safety equipment must be in compliance with
applicable codes, ordinances and accepted safe practices.

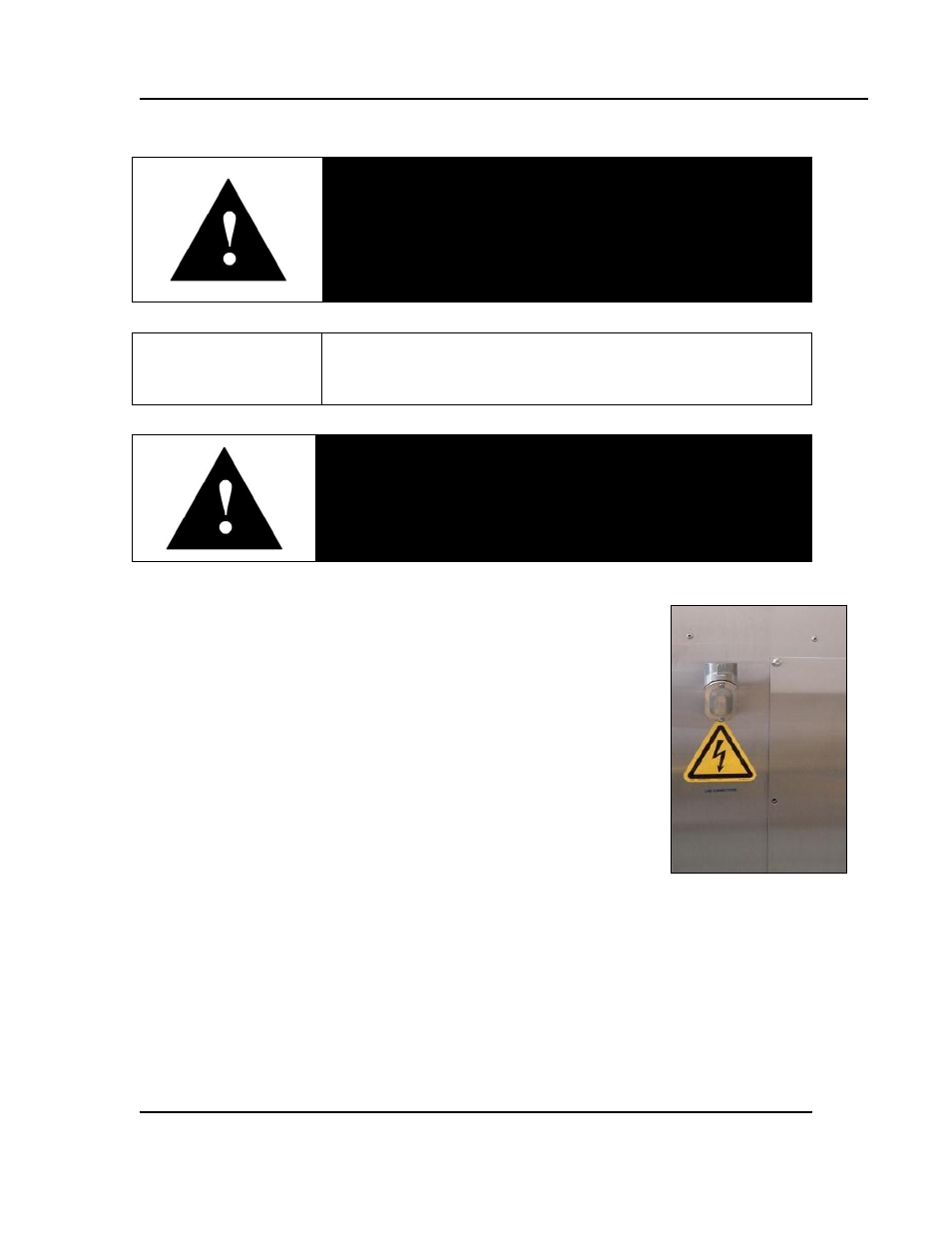

Figure 10. Line Connection.
