4.2.3. Exhaust Connections
The LCC/LCD2-14 Series oven exhaust port is located on the rear of the oven (Figure 9). Table 4
lists the requirements for the exhaust stack for the LCC/LCD2-14 Series oven.

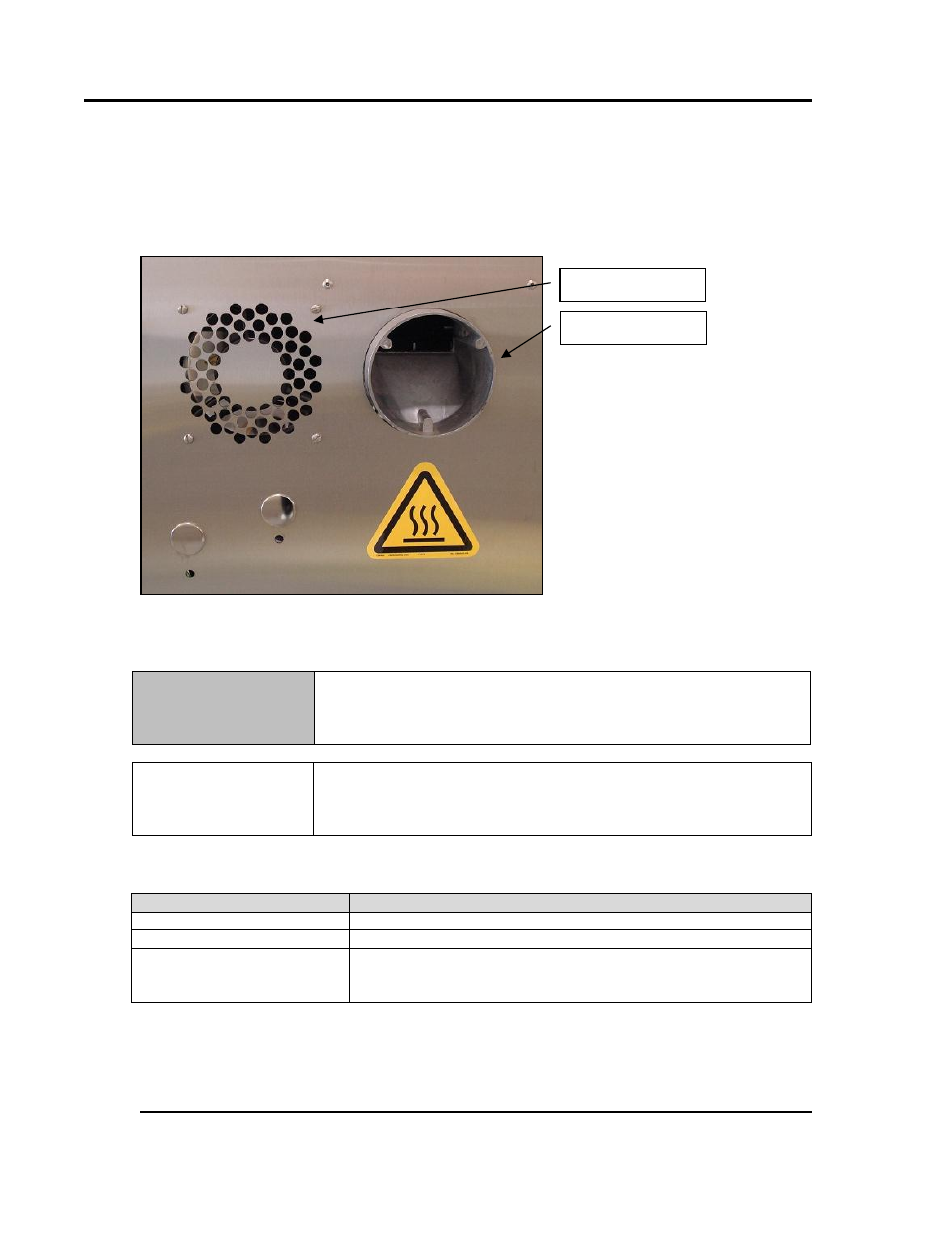

Figure 9. Exhaust Connections.
Table 4. Exhaust Connection Requirements.
Connection
LCC/LCD2-14
Exhaust Opening Diameter 4.0” (10.16cm)
Exhaust Fan 85
Maximum Temperature
(LCC Series)
(LCD Series)
260°C
350°C
Notice
Do not cover cabinet cooling fan. The cooling fan is required for
lower compartment ventilation.

Make sure exhaust piping materials can withstand maximum
exhaust temperatures (Table 4).
Cooling Fan
Exhaust Opening
