Opened pleats in the filter media are normal and result from the
tempering process.
3. Pull shelves from the oven and set aside.

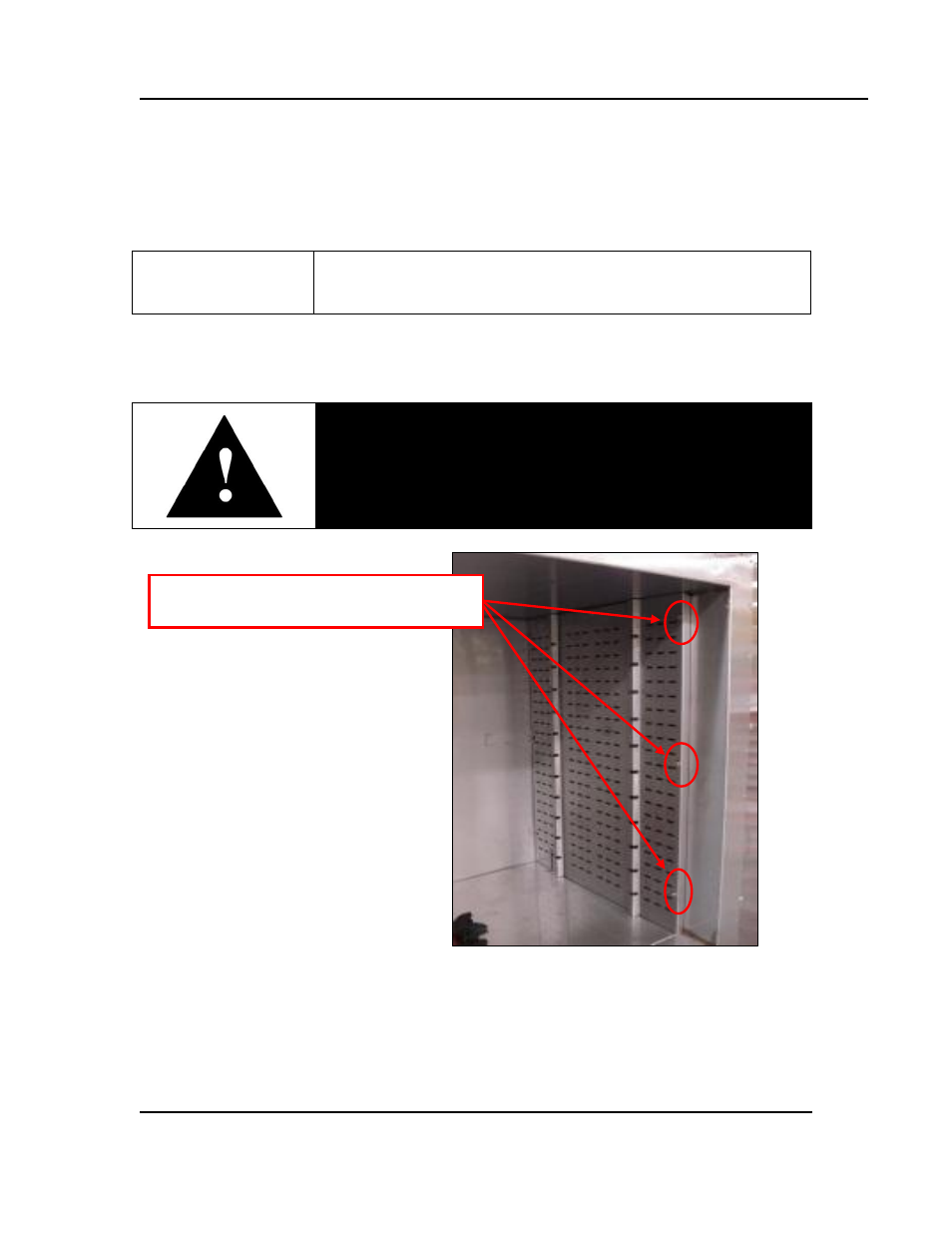

Figure 13. LCC/LCD2-14 Side Panel.
4. Loosen screws at sides and top of supply duct/shelf supports on right side of chamber (Figure
13).
a. Pull out the shelf support/duct as a single unit and set it aside.
5. Remove the brass nuts and washers from the rods that are holding the filter frame in place.
a. Reuse these nuts to hold the filter in place.
Danger!
Make certain power is disconnected from the oven before
removing or replacing the HEPA filter.
Loosen screws to remove the entire inner
casing assembly as a single unit.
