5.3.2. LCC/LCD2-14 Class A Oven Operation
1. Verify the purge time with the time listed on the nameplate (Figure 18).
2. Turn the yellow/red
DISCONNECT SWITCH to ON (Figure 17).
3. Press the POWER for ON.
4. Close the main disconnect switch.
5. Press the
START push button.
6. Start the profile. The exhaust fan will start, the airflow
switch will actuate, and the purge timer will begin
timing.
7. When the purge period is complete, the oven will
begin heating.
5.3.3. Working with Protocol 3 Operating Modes
Refer to the Protocol 3 Controller Owner’s Manual for specific information for working with the
controller.
5.3.4. Sequence of Operation for LCC/LCD2-14 Ovens Equipped with
Optional Beacon Light
1. After starting the oven (refer to Section 5.3.1), the Protocol 3 controller initializes.
Danger!
LCC/LCD2-14A Class A ovens are designed for a specific amount of
solvent. Exceeding this amount could result in an explosion. Do not
process closed containers of any substance or liquid in this oven
because they may explode under heat. In case of fire, leave door(s) as
they are. Shut off electricity. Shut off fuel. Call the fire department.
Stay away
.

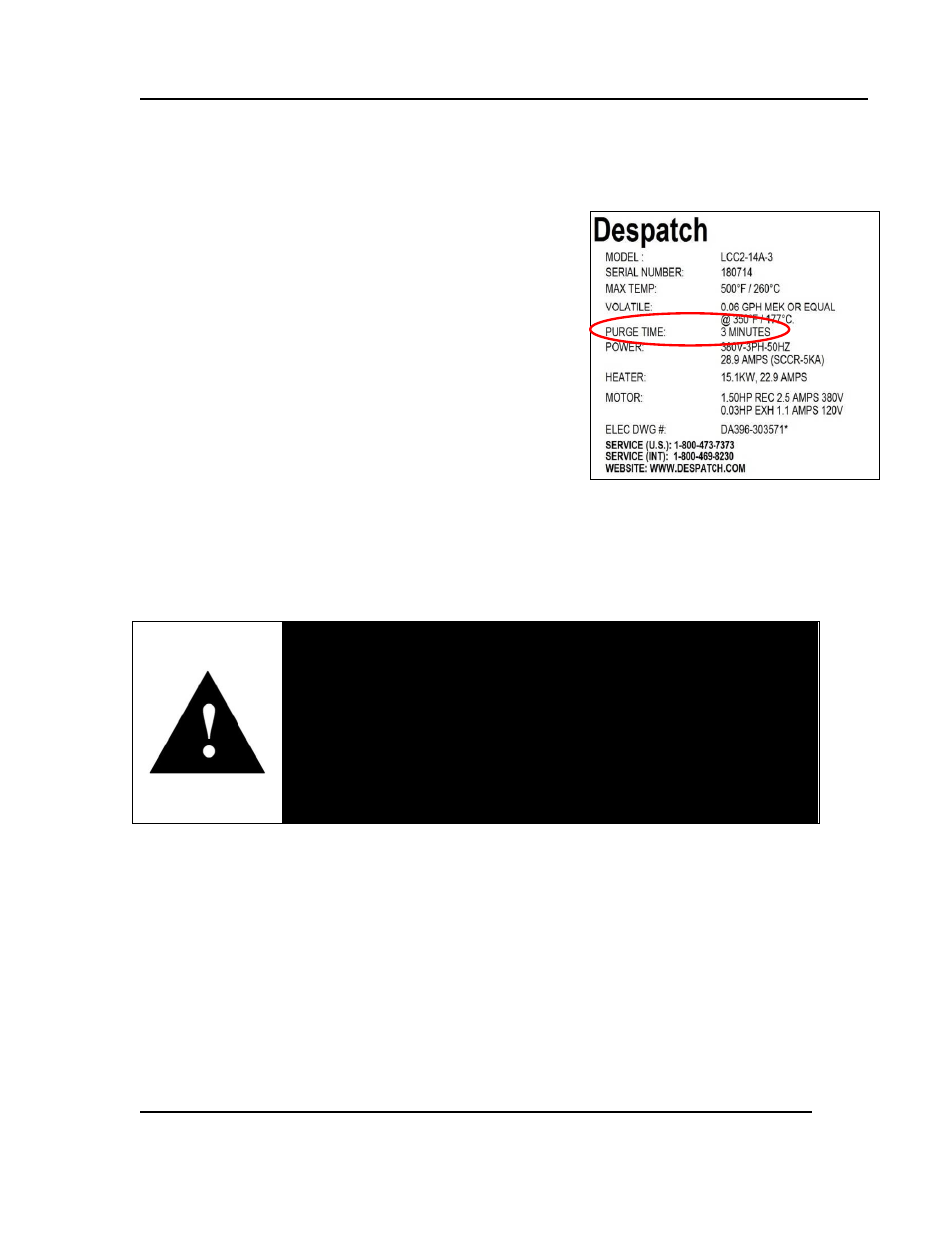

Figure 18. Class A Nameplate Example.
