7. Reinstall filter frame using the nuts removed earlier.

a. Make sure the filter face is tight against the inside perimeter of the frame on all sides.

8. Reinstall the brass nuts and washers to tighten the filter frame down.

a. Tighten the nuts alternately for even tightness.

i. Be careful not to over tighten. Correct installation torque is 28 +/- 3 in-lbs (3.16 ±

.33 N-m).

ii. Be sure to compress the gasket evenly and equally at all points with the filter frame

completely covering the opening.

9. Reinstall shelf support/duct assembly using the screws removed earlier.
10. Reinstall oven shelf.

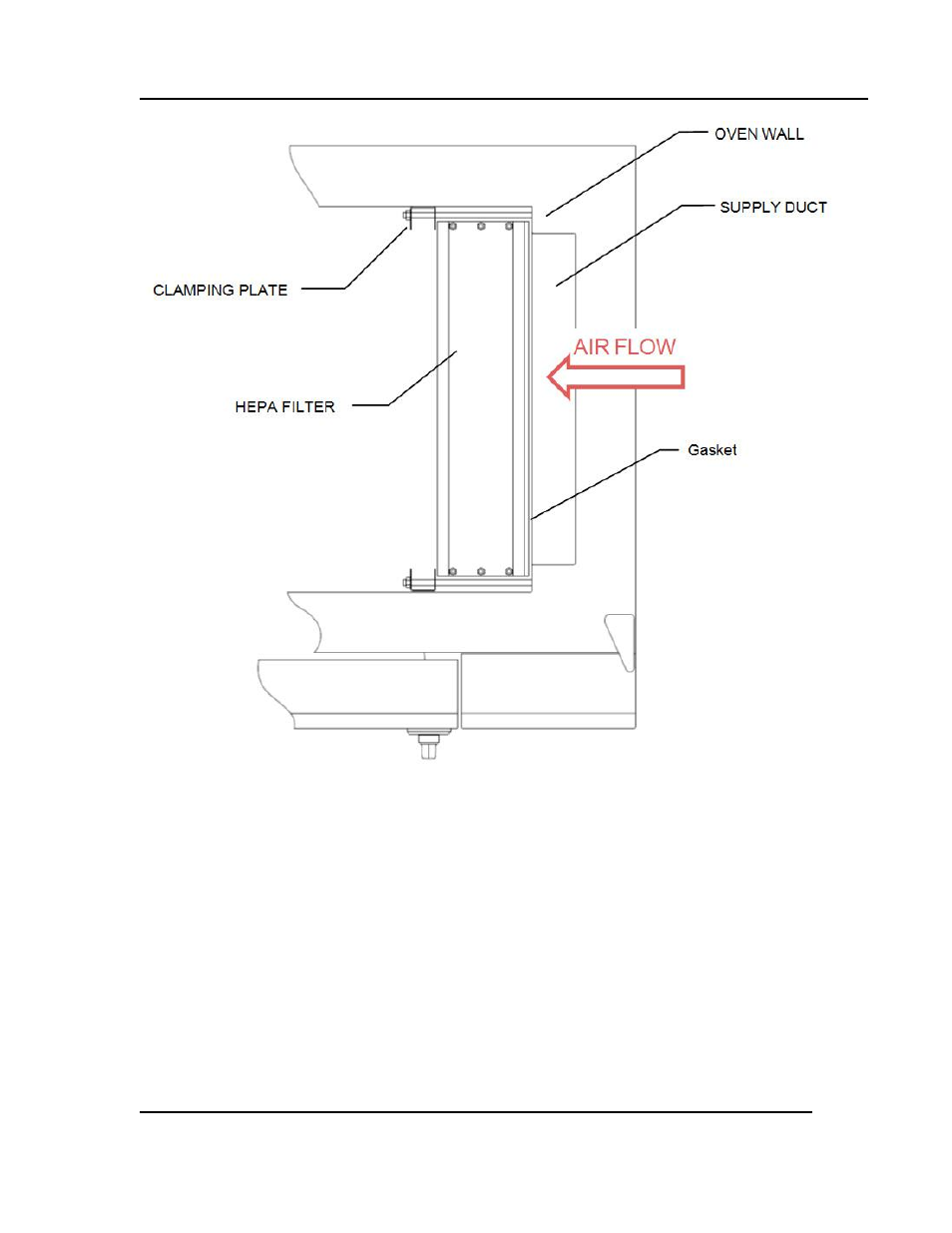

Figure 15. Install HEPA standard filter.
