b. Discard the old filter in accordance with your company’s disposal policies.
c. Remove and discard the conduit spacers from the rods behind the filter frame.

6. Place the new filter in the oven:

a. For the High-temperature HEPA filter:

i. Place the filter with the triangular gasket set against the oven wall and the

glass braid set against the clamping plate (Figure 14).

ii. Tighten the nuts until the triangular gasket is compressed to a thickness of

0.16 inch (0.4 cm).

b. For the Standard HEPA filter:

i. Place the filter with the gasket set against the oven wall (Figure 15).

ii. Tighten the four nuts alternately for a torque of 28 (+/- 3 in-lbs.).

iii. Be careful not to over tighten

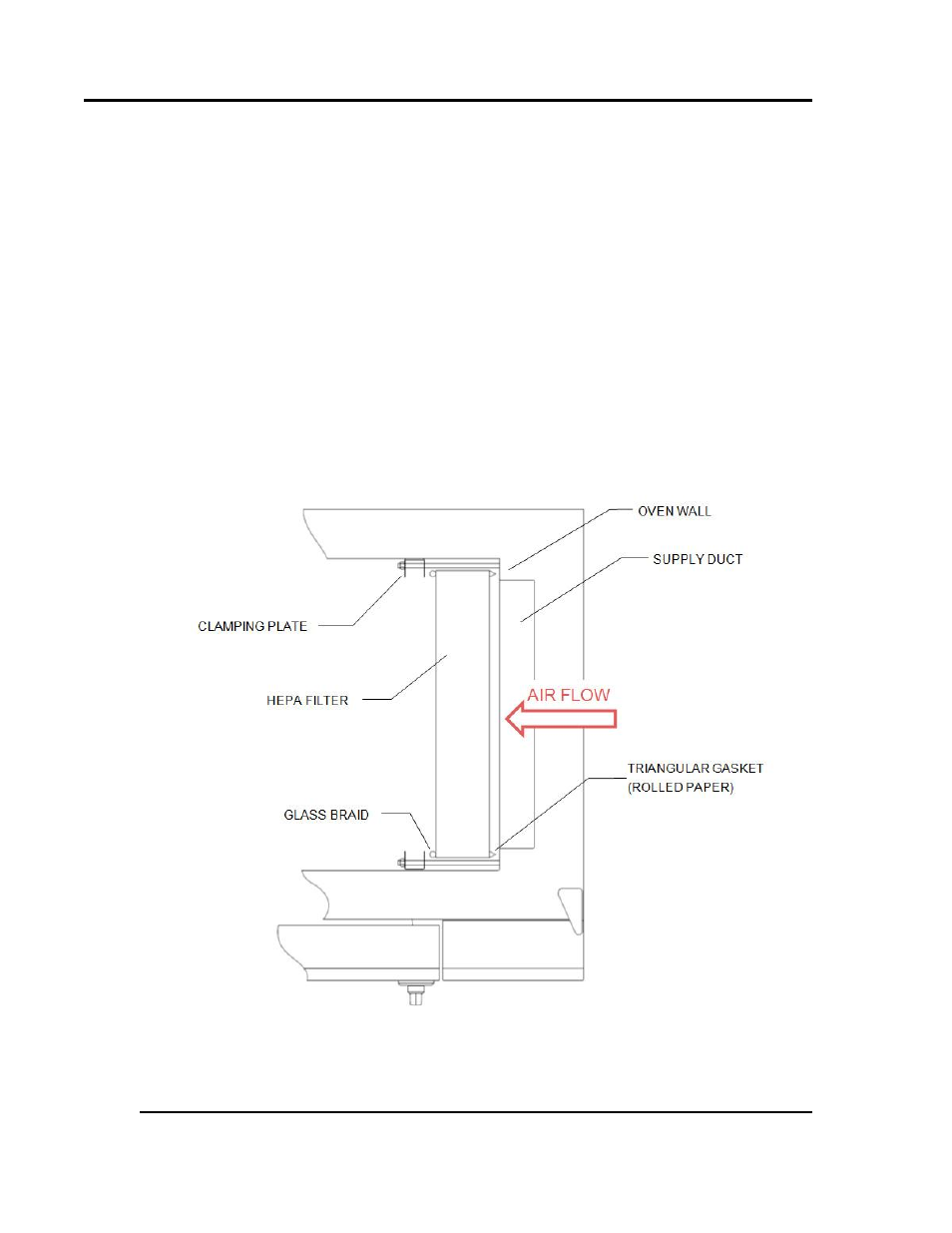

Figure 14. Install HEPA high-temperature filter.
