User guide

The Menu

57

Protocol (Protocol)

This parameter serves to select the type of protocol, i.e. a certain set
of rules and procedures for ensuring error-free data exchanges be-
tween computer and printer.

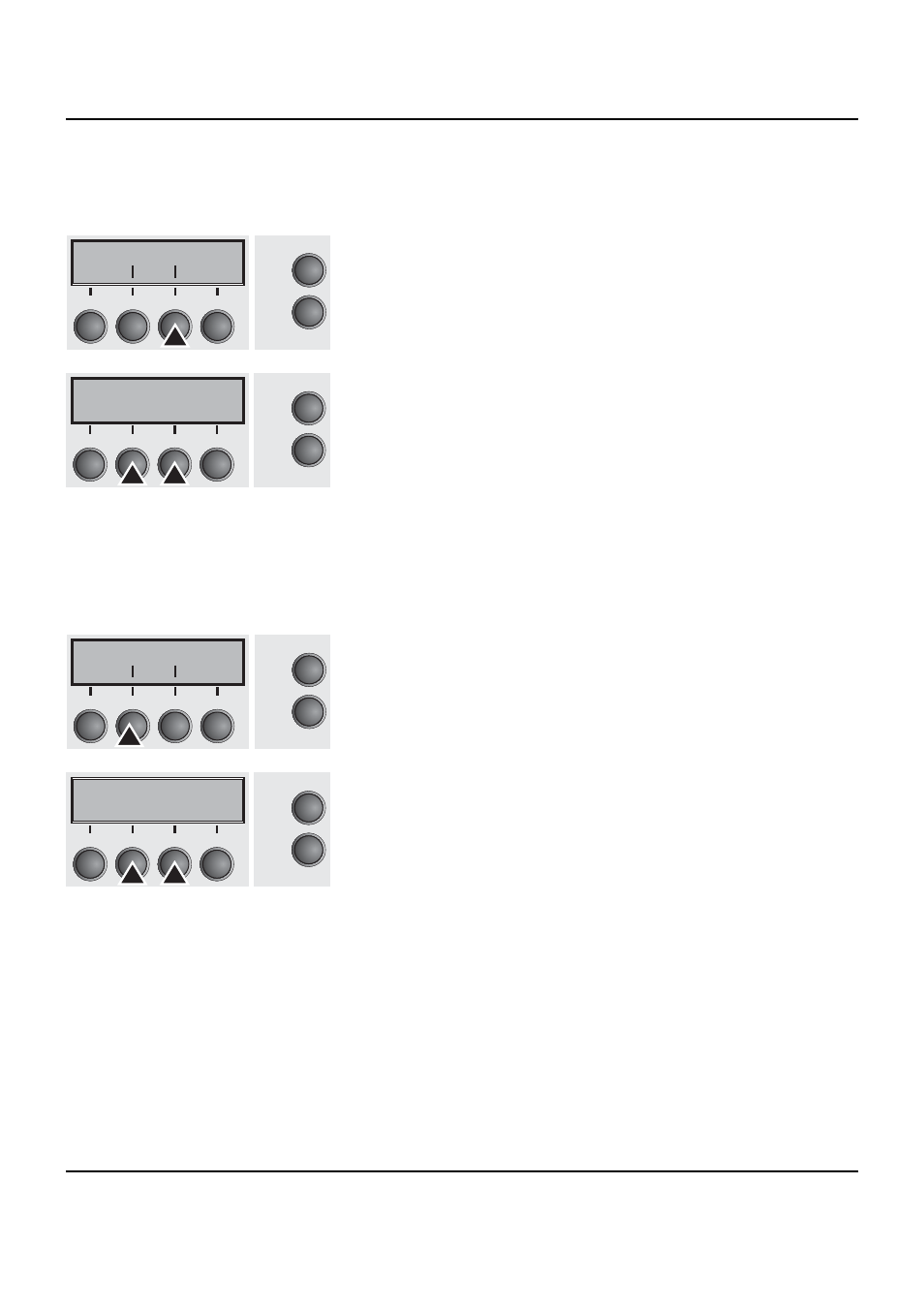

Press Protocol (3) key.

Use the

<

(2) or

>

(3) key to select the desired setting.

Setting Options: XON/XOFF, Robust XON/XOFF,

ENQ/STX, ETX/ACK, ACK/NAK

Default Setting: XON/XOFF

Confirm the setting by pressing the Set key (1). Press the Next key
(4) to access the next group of parameters.

Signal Processing (DTR)

Defines the conductor to which the DTR signal is connected
(DTR = Data Terminal Ready).

Press DTR (2) key.

Use the

<

(2) or

>

(3) key to select the desired setting.

Setting Options: DTR/READY
Default Setting: DTR

DTR=DTR: DTR signal is assigned to DTR line.
DTR=READY: READY signal is assigned to DTR line.

DTR = Pin 20 on 25-pin female RS232 connector.
DTR = Pin 4 on 9-pin female RS232 connector.

Confirm the setting by pressing the Set key (1). Press the Next key
(4) to access the next group of parameters.
