COATS ProRide Wheel Balancer - Manual (Page 17)

Important: Always read and follow instructions. • 13

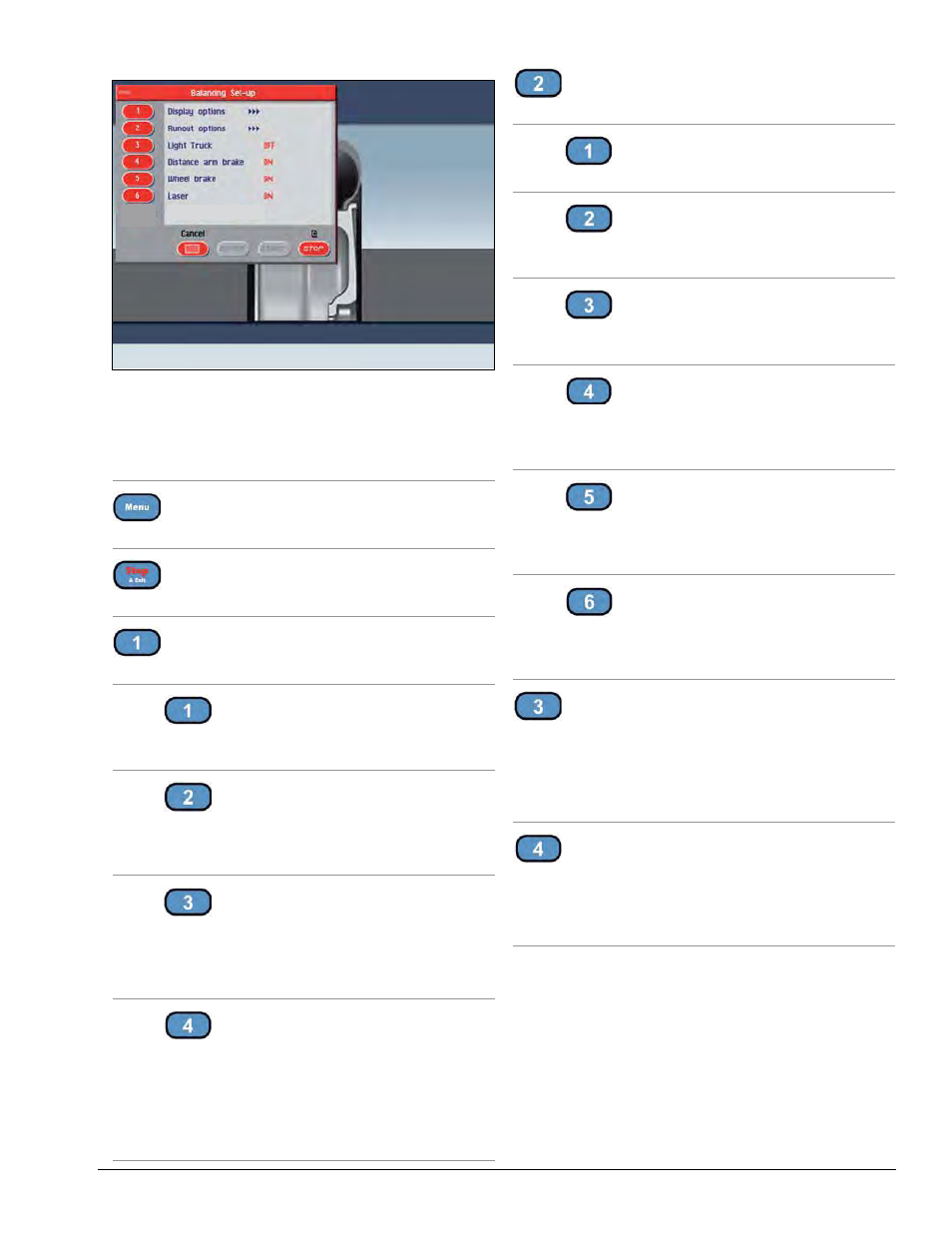

Balancing Set-up Screen
The balancing set-up screen provides you with many
possibilities for presetting the machine according to
your requirements. These settings remain unaltered
even when the machine is switched off.
Buttons enabled:
Menu
Return to previous window
Stop & Exit
Return to Result screen
Display Options
Under display options the following buttons are enabled:
➤ Display Units
Select whether to display the out of balance values
in grams, ounces or both.
➤ Static Imbalance Displayed
Enable/disable Static on Screen™ display. You can
always select the static frame by pressing the button
from the result screen.
➤ Calculation Roundoff
Scroll through to set a weight correction roundoff
value. Typically you would set it around 0.25 ounces
(7 g) for most wheels and around 0.50 ounce (14 g)
for heavy wheels.
➤ Lower Weight Limit
The out of balance threshold below which - - -,
instead of the out of balance value, appears on the
screen at the end of a measurement cycle. Note that
the closer you set the lower limit to 0.13 ounces (4
g) the more respins you will have when attaching a
0.25 ounce (7 g) weight.
Runout Options
Under runout options the following buttons are enabled:
➤ Radial Runout Displayed
The radial runout value display on the main screen.
➤ Runout Diagnosis
Enable/disable automatic runout diagnosis screen at
the end of spin.
➤ Runout Measuring Unit
Select whether to display runout values in mm or
inches.
➤ Max True Runout Limit
Set a desired tolerance that indicates the limit of
runout allowed on the tire/wheel before it is suitable
to match balance.
➤ Rim Runout Limit
Set a desired tolerance that indicates the limit of
runout allowed on the rim before it is suitable to
match balance.
➤ Correction Runout Limit
Set the minimum correction limit tolerance obtain-
able below which it is not considered appropriate to
match balance.
Light Truck Mode
The default is OFF. Scroll to set a value of 1", 1.5" or 2".
This is only necessary if a tire/wheel assembly requires
an adjustment to the automatic width measurement
value, where the actual tire width value is greater than
(extends beyond) the actual rim width value.
Offset Arm Locking
Enable/disable distance gauge locking when the correct
distance is reached to apply the adhesive weight to cor-
rect the out of balance. To release the offset arm, lower
it to below 10-inch diameter.
