Hood Installation Tip
Instruction
COATS, Inc. • Hennessy Industries • P.O. Box 3002, 1601 J.P. Hennessy Drive, LaVergne, TN 37086-1982
(800) 688-6359 • (615) 641-7533 • (615) 641-5104 FAX
8112964 2/00 rev.0
© COPYRIGHT 2000 HENNESSY INDUSTRIES AND COATS ALL RIGHTS RESERVED PRINTED IN U.S.A.

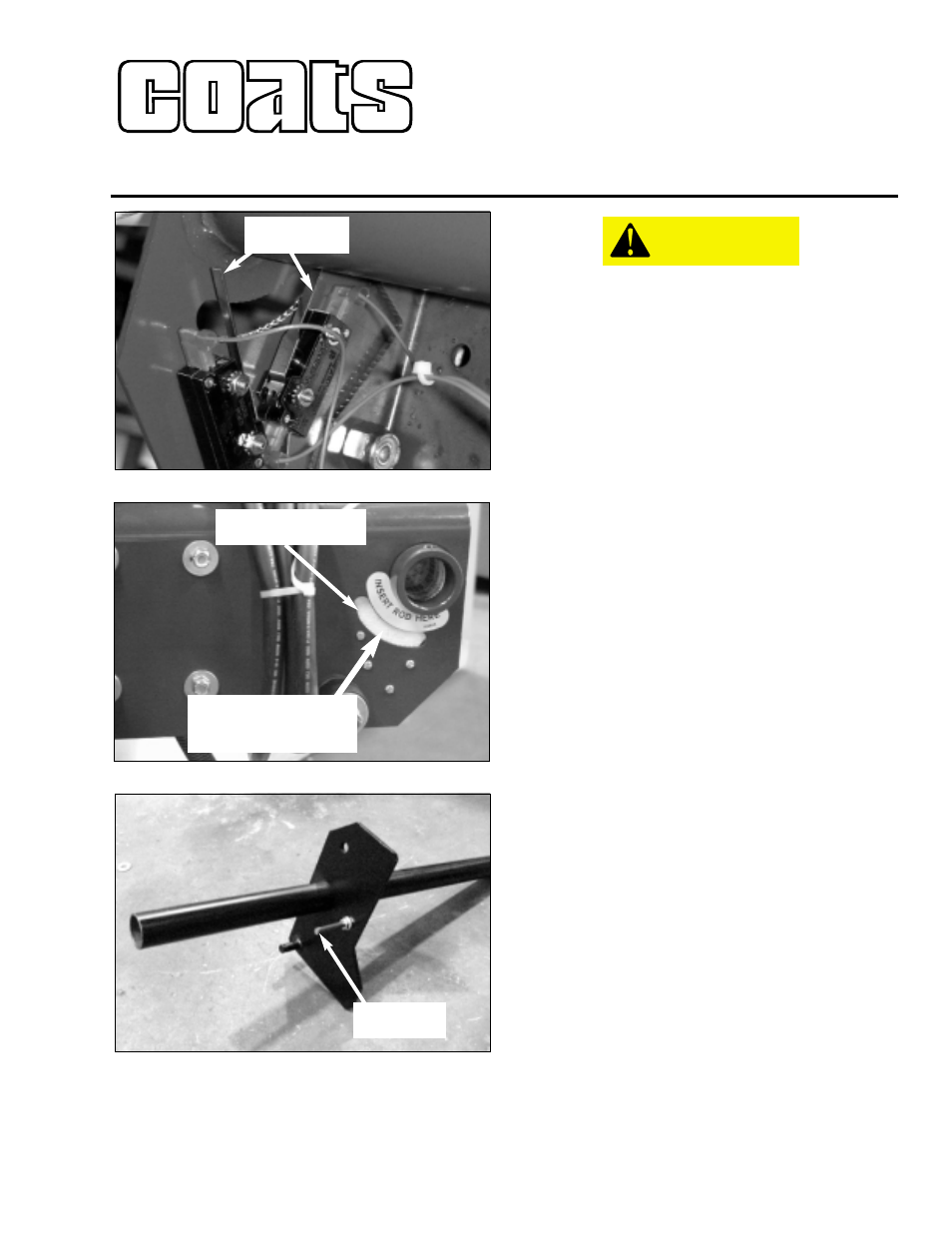

Mechanical Hood Switches Can Be
Damaged During Installation
Balancers are now equipped with mechanical
hood switches.
These switches can be damaged by the
switch actuator rod during installation if you are
not careful.
To help avoid damage during installation, the
balancer is shipped with Styrofoam separating
the switches.
When the hood is installed, it is very impor-
tant that the switch actuator rod contact the
Styrofoam at the middle of the slot and stay at
that position as the hood tube is pushed in.
As the hood tube is pushed in, the actuator
rod must push the Styrofoam in. Be sure the
Styrofoam is clear. If not, use a small screw-
driver to push it in and out of the way.
If the balancer fails to operate, it may be
because one of the switches was damaged
during hood installation or the Styrofoam has
not cleared the switches.
CAUTION
Mechanical
Hood Switches
Styrofoam Separating
Hood Switches
Switch Actuator Rod
must Contact Styrofoam
at Center of Slot
Hood Switch
Actuator Rod
