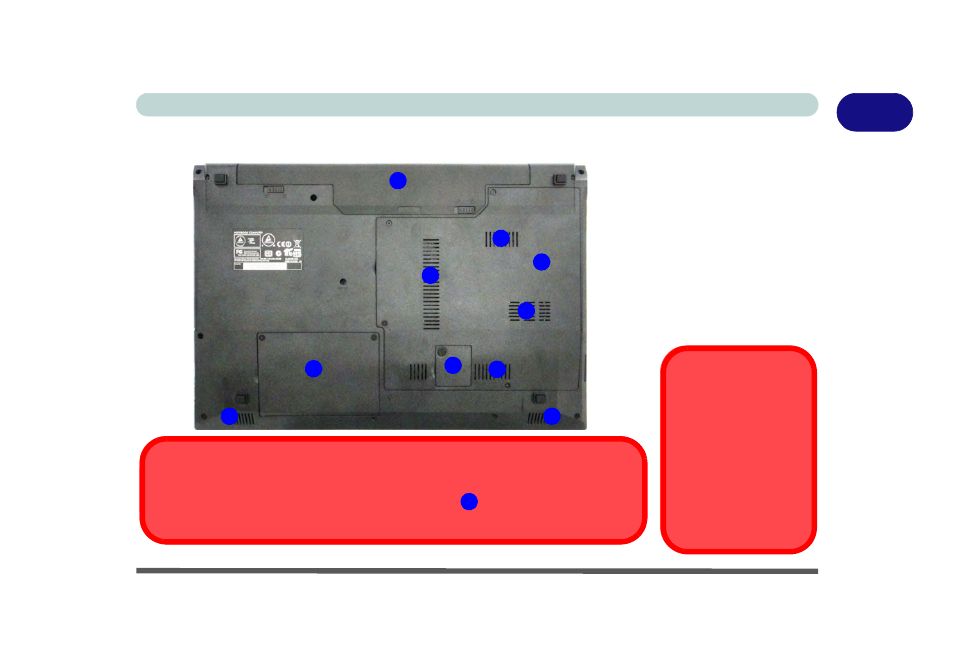

System Map: Bottom View - Model B
Figure 1 - 12
Bottom View - Model B
1. Battery
2. Component Bay
Cover
3. Vent/Fan Intake/
Outlet
4. Hard Disk Bay
Cover
5. 3G USIM Card
Cover (Optional)
6. Speakers

CPU
The CPU is not a user
serviceable part.
Overheating
To prevent your comput-
er from overheating
make sure nothing blocks
the Vent/Fan Intake while
the computer is in use.
2
3
1
4
3
3

Bottom Covers
If your model includes the 3G option then a small cover to enable you to access the
module’s USIM card will be included (see “3G Module” on page 7 - 28 ).
5
5
6 6
3
