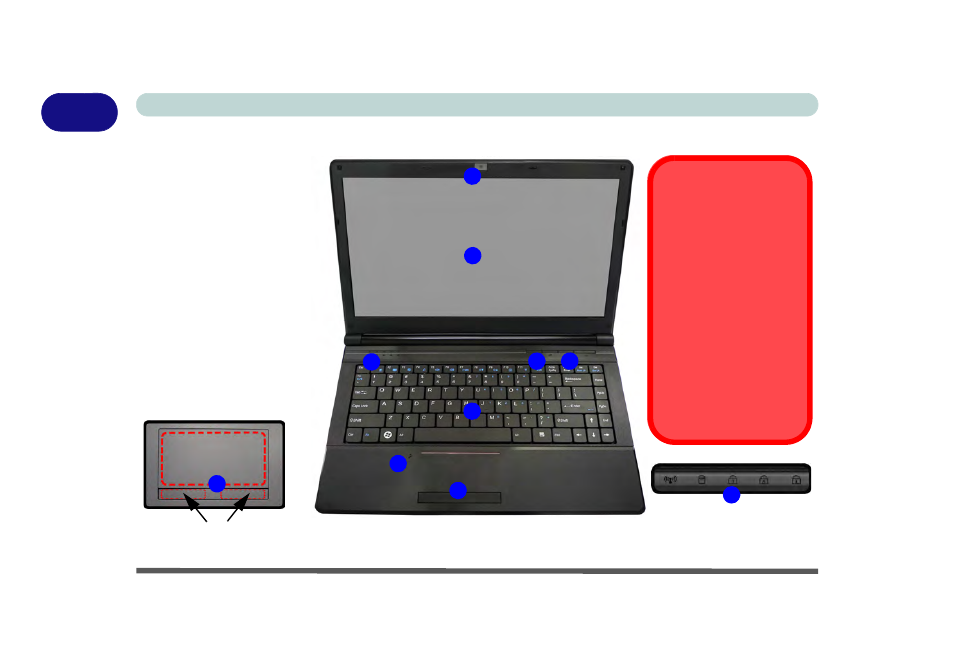

System Map: LCD Panel Open - Model A
Figure 1 - 2
LCD Panel Open -
Model A
1. Built-In PC Camera
(Optional)
2. LCD
3. Power Button
4. Hot Key Buttons
(for some Model A
designs only)
5. LED Status
Indicators
6. Keyboard
7. Built-In Microphone
8. TouchPad &
Buttons
TouchPad Buttons
(valid operation area)
8
2
4
1
6
7
3 5
8
Note that the TouchPad and Buttons valid operational area is that indicated within the red dotted lines
indicated on the left.

Wireless Device
Operation Aboard
Aircraft
The use of any portable electronic
transmission devices aboard air-
craft is usually prohibited. Make
sure the module(s) are OFF if you
are using the computer aboard
aircraft.
Use the key combinations to tog-
gle power to the 3G//WLAN/
Bluetooth modules, and check
the LED indicator or on-screen
icon to see if the modules are
powered on or not (see Table 1
- 4, on page 1 - 13 / Table 1 -
2, on page 1 - 9 ).
