chiliGREEN W251CZQ - Manual (Page 120)

Upgrading The Computer
6 - 8 Upgrading the Optical (CD/DVD) Device
6
Removing the Optical Device for Model A Computers
1. Turn off the computer, and turn it over and remove the battery.
2. Locate the component bay cover and remove screws - .
3. Carefully (a fan and cable are attached to the under side of the cover) lift up
the bay cover.
4. Carefully disconnect the fan cable , and remove the cover .

Fan Cable & Cover
Make sure you recon-
nect the fan cable
before screwing down
the bay cover. Note the
information on replacing
the RAM & CPU bay
cover in
“Cover Pins”
on page 6 - 14 .

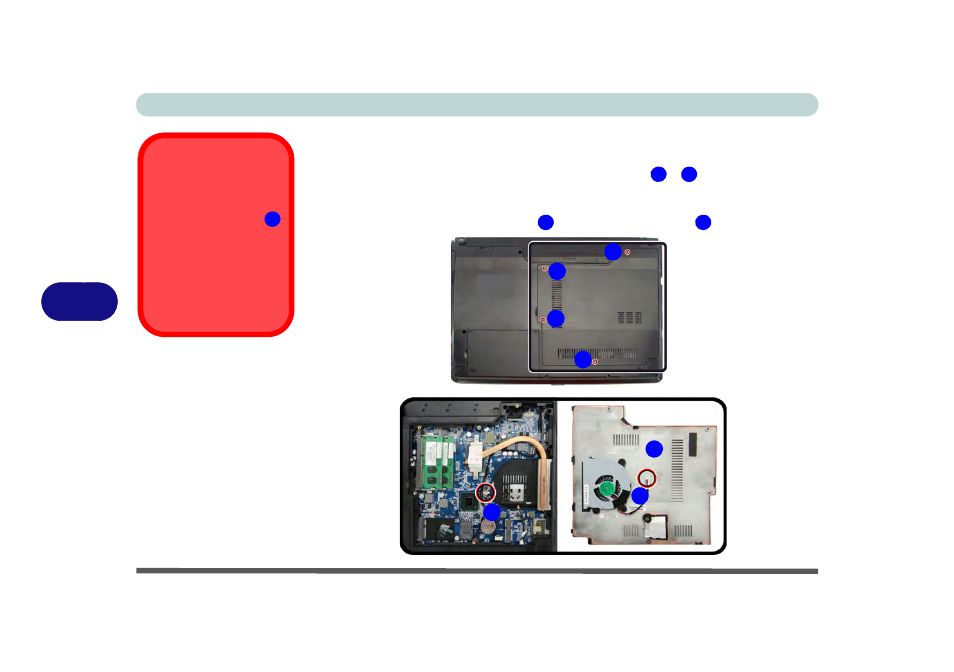

Figure 6 - 4
Removing the
Component Bay
Cover
(Model A
Computers)
5
1 4
5 6
1
3
2
4
5
5
6
