89

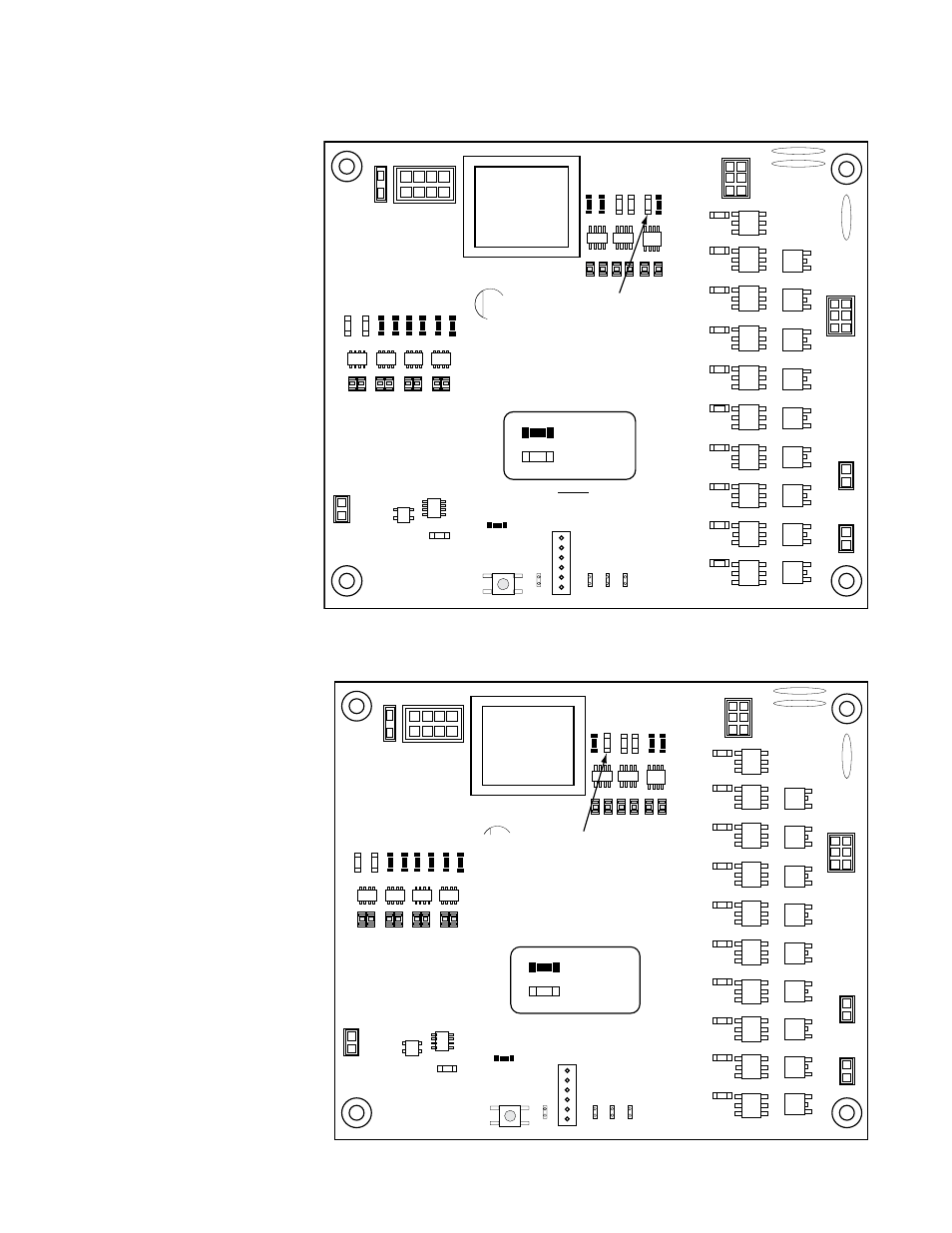

Rack Control Module Operation
Door Opened while Dishwasher is In-cycle
Plate 7:
1. Door(s) Opened.
2. PAUSE light OFF.
3. POWER light ON.
4. RUN LIGHT OFF.
5. Tanks full.
6. Tank heat Disabled.
7. Booster heat disabled.
8. Pumps and drive
disabled.
9. RCM timer paused for
a maximum of 5
minutes. After 5
minutes, the machine
stops and the START
push button must be
pressed to operate the
dishwasher.
10. Closing the door(s)
before 5 mins. has
elapsed will resume
operation where it left
off. Run Light ON.
Pause light ON.
Rinse Flt L Wa
sh Flt L
Wa
sh Flt U
Final Rinse Rack Switch
Jam Switch Table Limi
t
Stop Start Pause Power
DR Level Rinse Flt U Prewash Flt L Prewash Flt U
Run
H7
H5 H3
H1
H2
H4
H6
AA Prewash DR
Ta
nk
Rinse
Tank Digital Display
Rinse
Reset
DR Pump
Pumps
Rinse Aid
Prewash Fill
Wash Fill
Final Rinse
Run Light
DR/Rinse Heat
Wash Heat
Booster Heat
RCM Status/Jumpers
NOT USED
NOT USED
NOT USED NOT USED
Opening the doors pauses
the RCM timer for a maximum
of 5 minutes. After 5 minutes,
the machine stops, the RUN LIGHT
goes out and the START pushbutton
must be pressed to operate the
dishwasher.
= Indicator ON
= Indicator OFF
Plate 8:
1. Door Closed.
2. POWER light ON.
3. Table limit switch
activated.
4. TABLE LIMIT OFF.
5. RUN LIGHT OFF.
6. Tank heat ON.
7. Booster heat ON.
8. Pumps and drive
disabled.
9. RCM timer paused for
a maximum of 5
minutes. After 5
minutes, the machine
stops and the START
push button must be
pressed to operate the
dishwasher.
10. De-activating the table
limit switch before 5
mins. has elapsed
will resume operation
where it left off.
RUN LIGHT ON.
TABLE LIMIT ON.
Table Limit Switch Activated while Dishwasher is In-cycle
Rinse Flt L Wa
sh Flt L
Wa
sh Flt U
Final Rinse Rack Switch
Jam Switch Table Limi
t
Stop Start Pause Power
DR Level Rinse Flt U Prewash Flt L Prewash Flt U
Run
H7
H5 H3
H1
H2
H4
H6
AA Prewash DR
Ta
nk
Rinse
Tank Digital Display
Rinse
Reset
DR Pump
Pumps
Rinse Aid
Prewash Fill
Wash Fill
Final Rinse
Run Light
DR/Rinse Heat
Wash Heat
Booster Heat
RCM Status/Jumpers
NOT USED
NOT USED
NOT USED NOT USED
= Indicator ON
= Indicator OFF
Activating the Table Limit Switch pauses
the RCM timer for a maximum of 5 minutes.
After 5 minutes, the machine stops, the
RUN LIGHT goes out and the START
pushbutton must be pressed to operate
the dishwasher.
